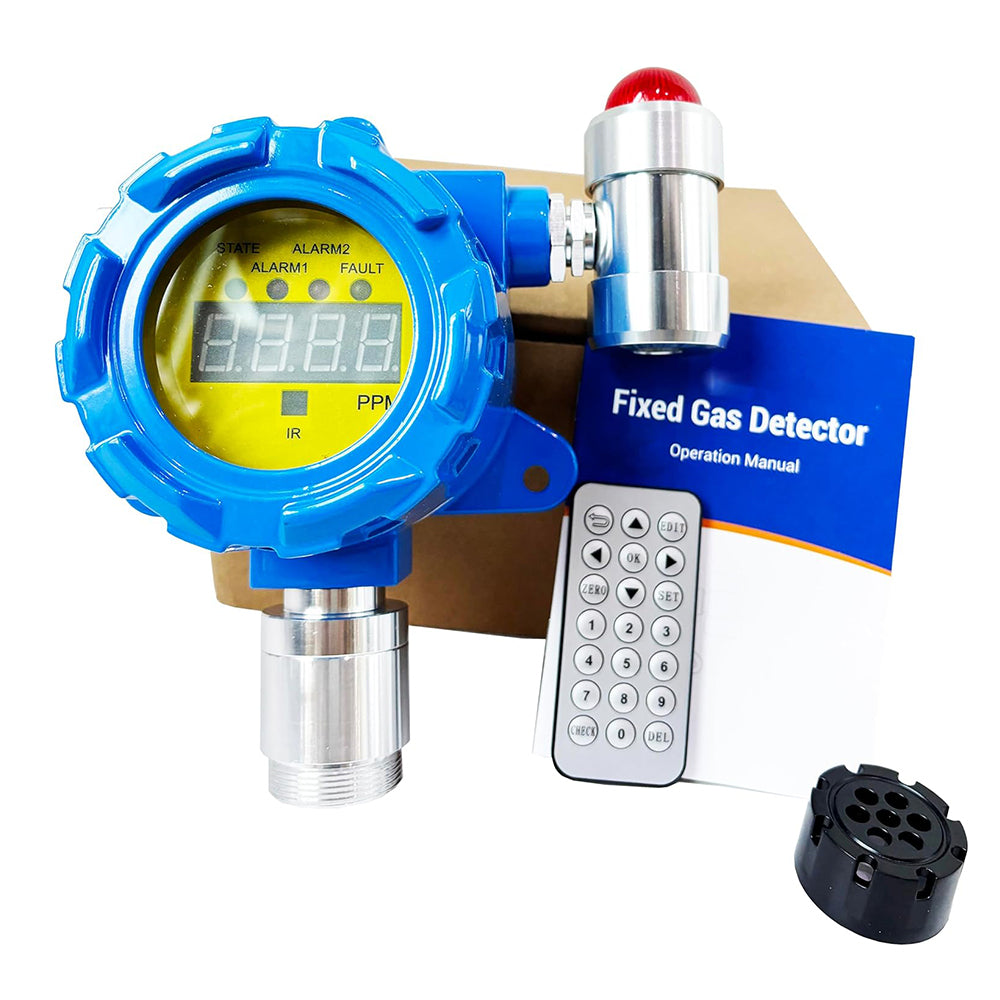

QIUSUO Wall-mounted Hydrogen Chloride Gas Detector Hydrogen Chloride Detector with Range 0-50ppm Resolution 0.1ppm Wall-Mounted 4-20mA and RS485 Input Die-cast Aluminum Shell

About this item:

Test gas: Hydrogen Chloride gas

Measuring range: 0-50ppm; Resolution: 0.1ppm; L-alarm:5ppm; H-alarm: 10ppm

Free Contact Output and Max Power 1kW

Working humidity 0-95%RH

advanced catalytic gas sensor or electrochemical sensor

Introduction:

Fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output.

The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Specifications:

Product type:fixed gas detector/transmitter

Explosion proof grade:Exd ⅡC T6 Gb

Response time:≦30S

Power supply:DC24V±10%

Working temperature:-20℃～50℃

Output current:4-20mA

Working humidity:0-95%RH

Contact output:Free contact output, max power 1kW

Single input:4~20mA and RS485

Installation method:Wall-mounted

Shell material:Aluminum

Dimensions:190x150x95mm（L×W×H）

Model:HCL

Range:0-50ppm

Resolution:0.1ppm

L-alarm:5ppm

H-alarm:10ppm
