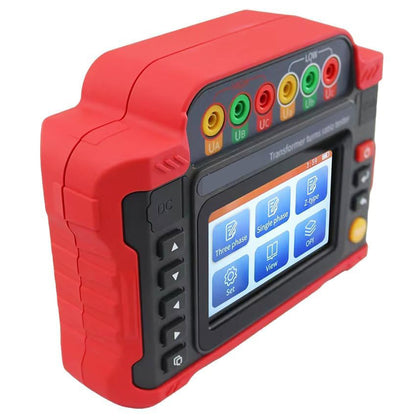

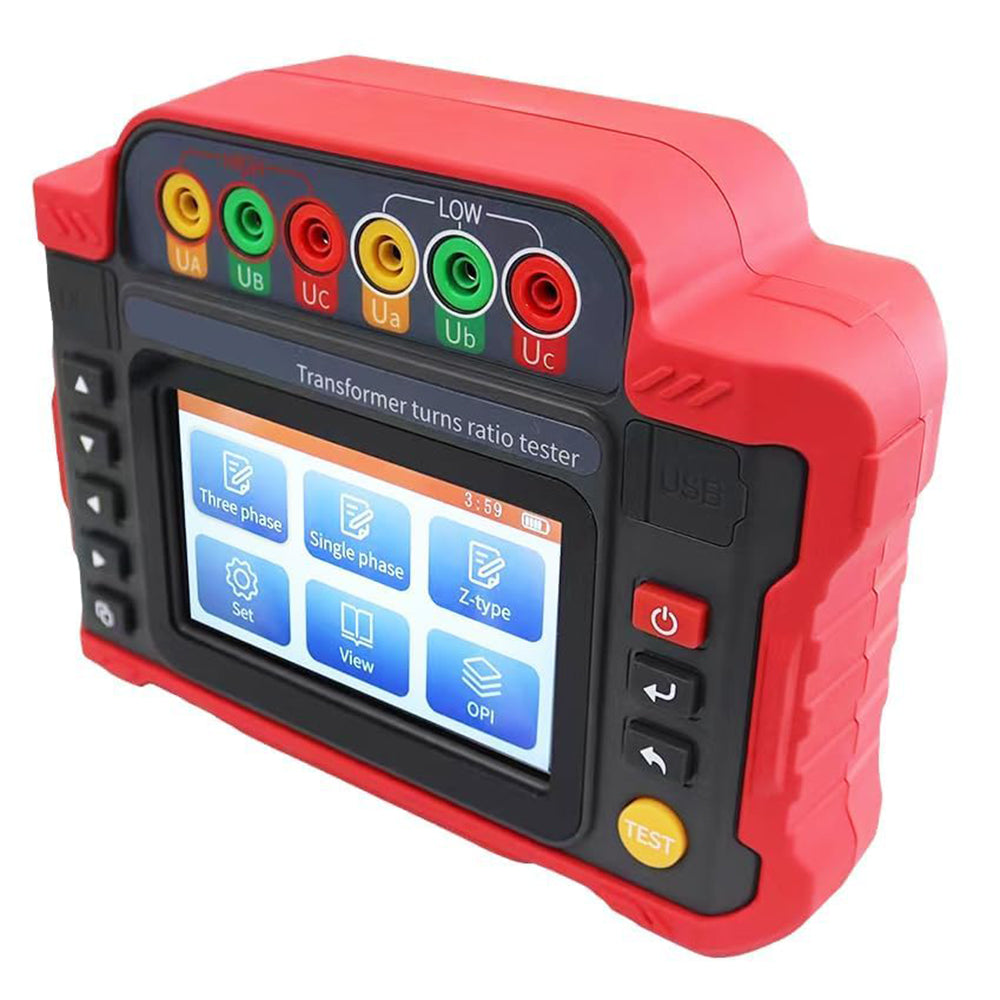

Introduction:

Transformer turns ratio tester adopts microprocessor technology for measurement calculation and automatic control, which can quickly and easily measure the actual transformer ratio and group.

It is mainly used in the power industry to measure the transformer ratio and group, and at the same time,it is used by transformer manufacturers and distributors to measure the transformer parameters.

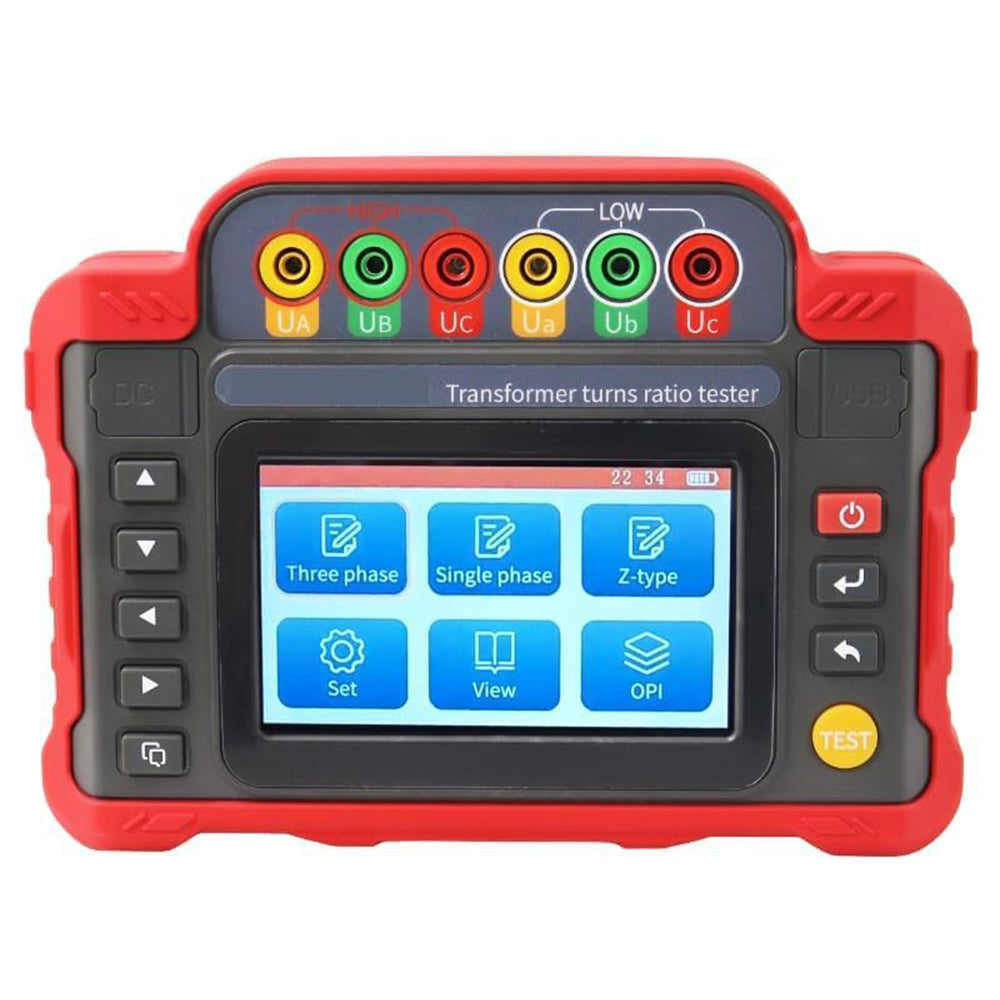

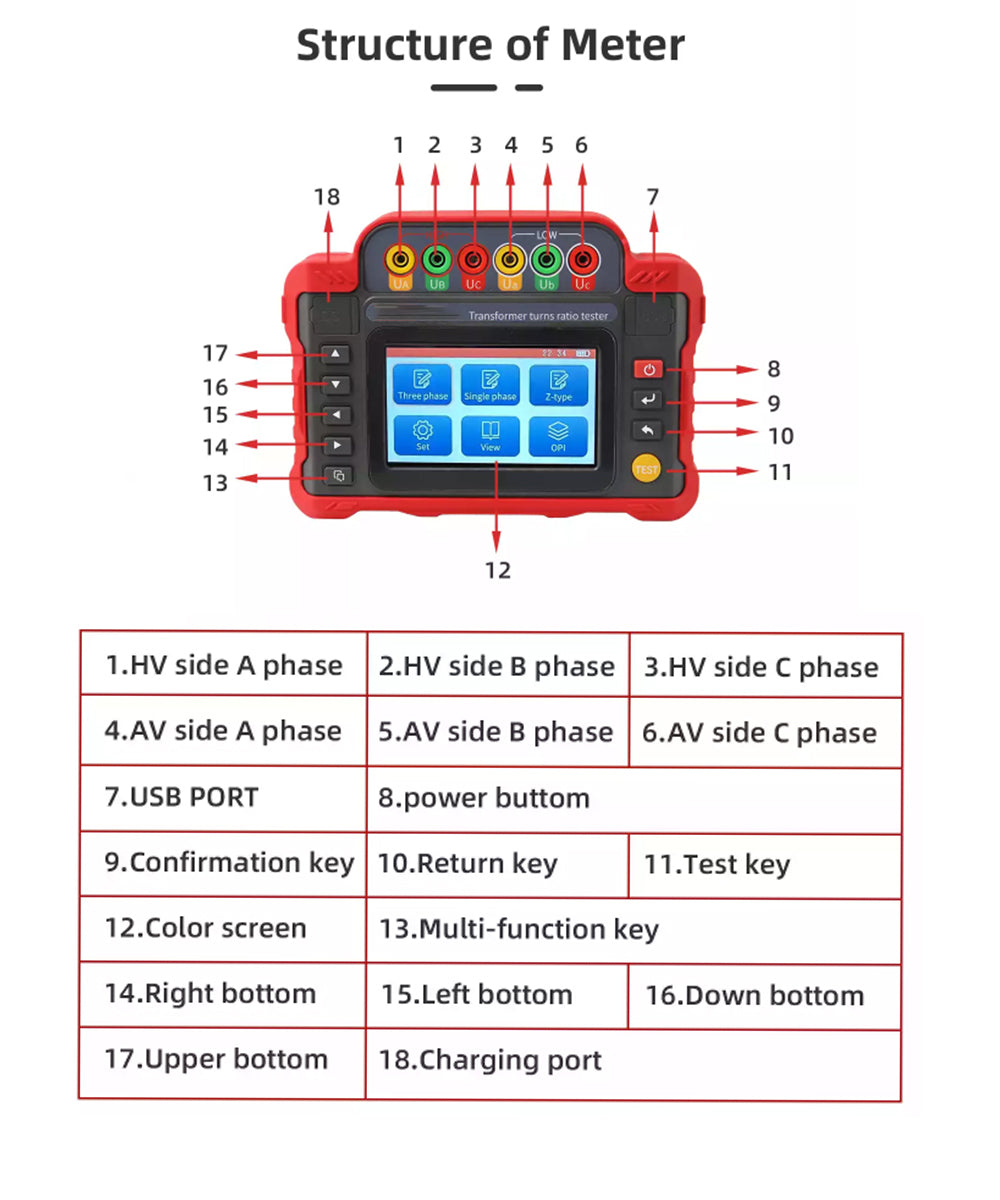

Transformer ratio tester consists of host, monitoring software,test line, communication line and so on. The host has a charging function without the need to find power on site, full-colour large-screen LCD display.

The language can choose Chinese or English, at a glance, touch-screen operation is convenient and easy to use, the port anti-overload function,large-capacity storage of 500 groups of data. Upper computer software with historical data reading, access, save and other functions.

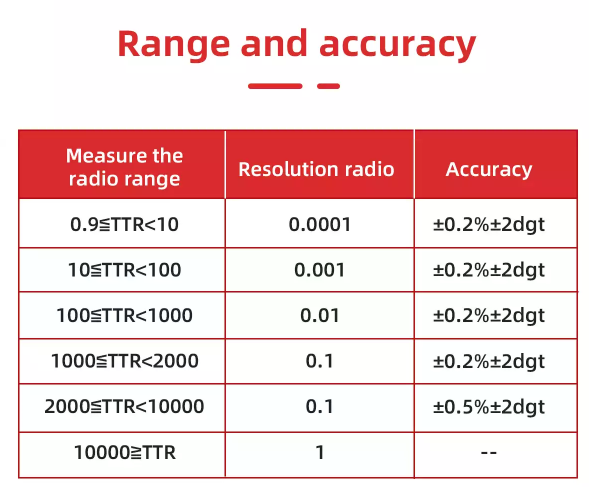

Range and accuracy

Technical specifications:

Function: It is mainly used for ratio and group testing of the three phase transformers,and single-phase transformers, PT and CT. This product can be used for blind testing of three phase transformers, as well as ratio and group testing of Z-type transformers.

Specimen type: Single phase transformer,three phase transformers ,Z -type transformers,PT,CT

Radio range: 0.9~10000

Overload protection: Yes

Power source: DC9.6V 3800mAh high capacity lithium battery

Charging function: Yes

Display mode: 5 inch touch screen（854dots×480dots）Full color LCD display

Mode of the interaction: Touch screen/buttons

LCD size: Length and width:108 mmx65mm

Instrument size: Length, width and height:229mmx166mmx74mm

Mobil APP: Yes ,Bluetooth connection

Computer host: Yes, USB line connection

Data storage: 500group

Data access: Data access function

Battery voltage: Real-time display of battery level, indicating the need for timely charging when the battery voltage is low

Automatic switch off: Auto power off could be set for 1~30 minutes.

Power consumption: Standby:approx.2w(100% brightness); Measurement: 12 Max

Quality: Instrument: 1.5kg (including battery); Test line: 1.7kg

Working temperature and humidity: -10℃～40℃；70%rh below

Storage temperature and humidity: -20℃～60℃；70%rh below

Insulation resistance: 10MΩ above(between circuit and housing)

Pressure resistance: AC 3700V/rms(between circuit and housing)

Electromagnetic property: IEC61010-4-3，radio frequency≤1V/m

Suitable for safety regulation: IEC61010-1、CAT Ⅲ 600V、pollution class2

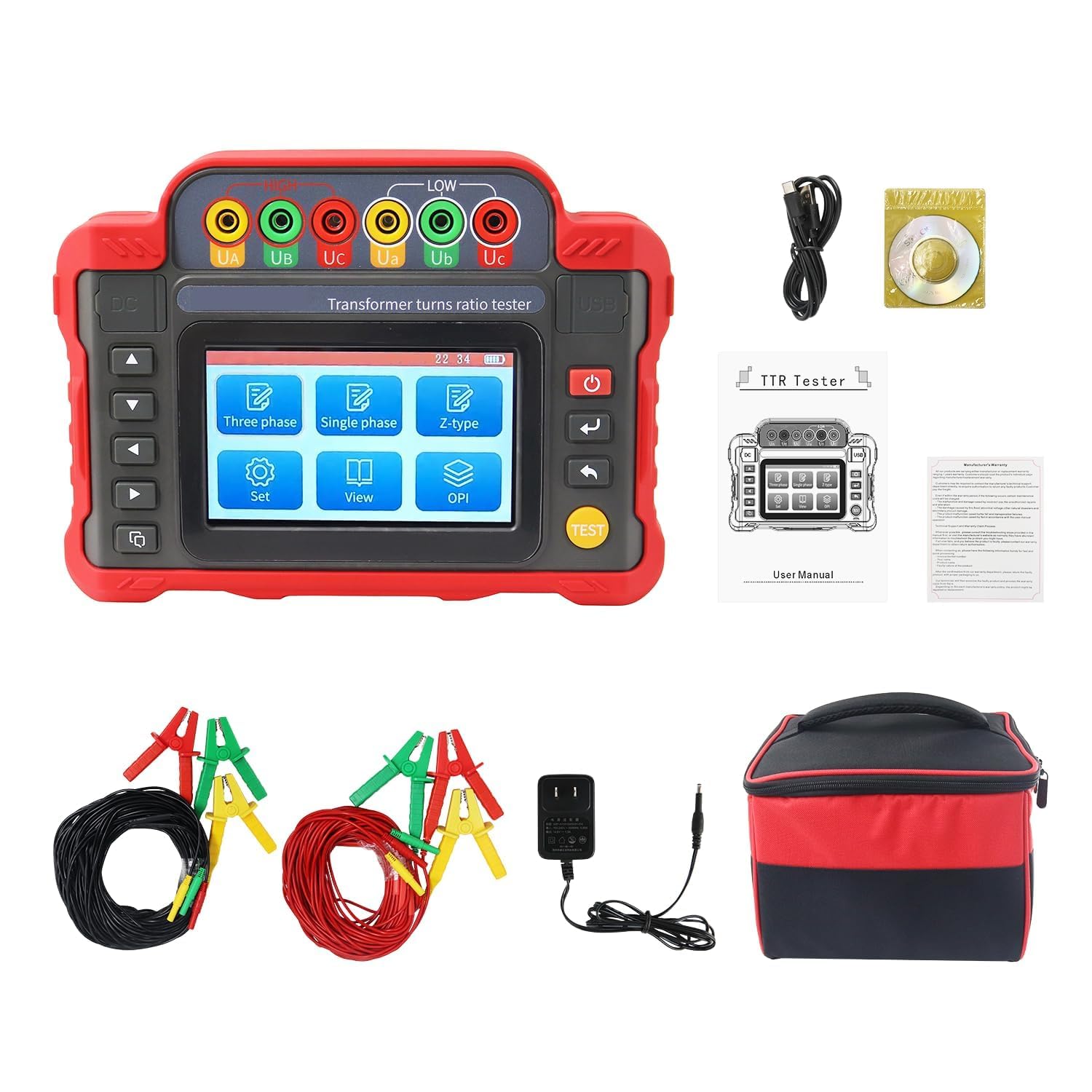

Packing list:

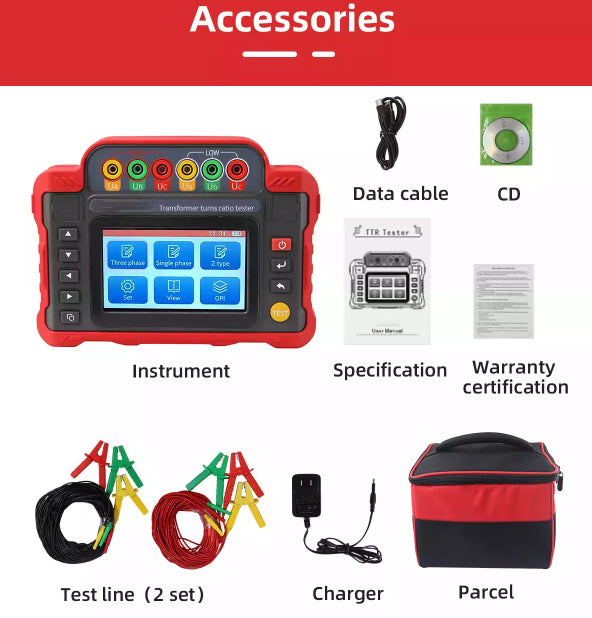

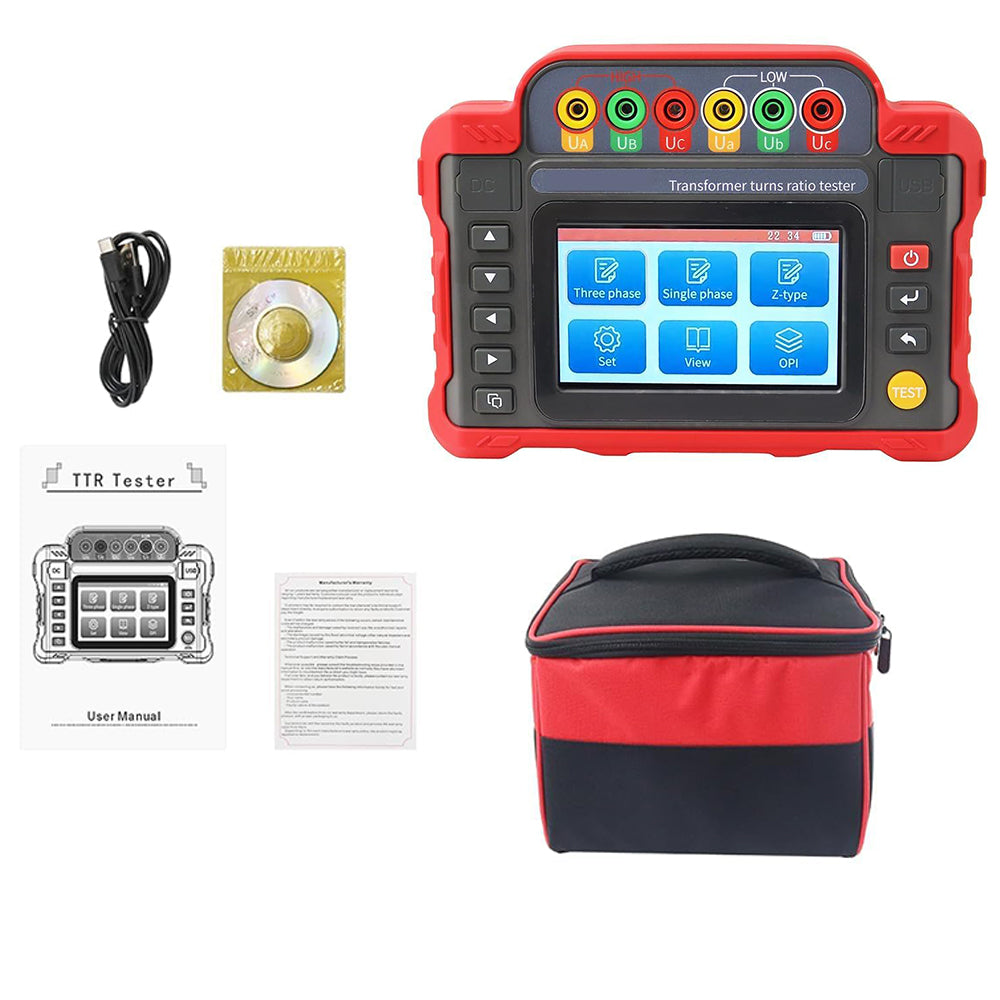

Instrument: 1pcs;

Test line: 2set(1 set red,1set black,3 lines each,10 meter) ;

CD: 1pcs;

Data cable1pcs(Type-C 1 meter);

Charger: 1pcs(14.8V/1.5A)

Introduction manual

Warranty certification
