About this item:

Range: 2 mT～3000 mT

Accuracy DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)

Measuring XYZ component, vector synthetic value

Unit switch: mT, G, A/m

It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.

Overview:

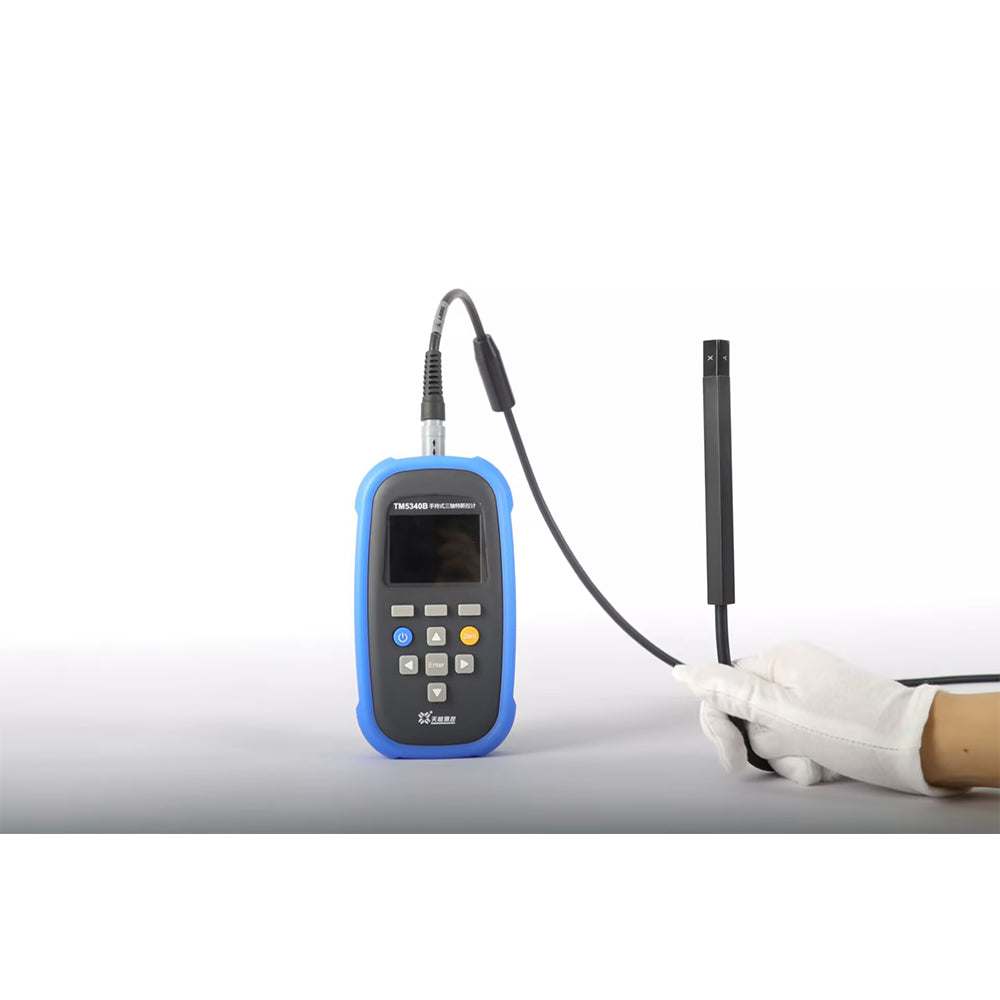

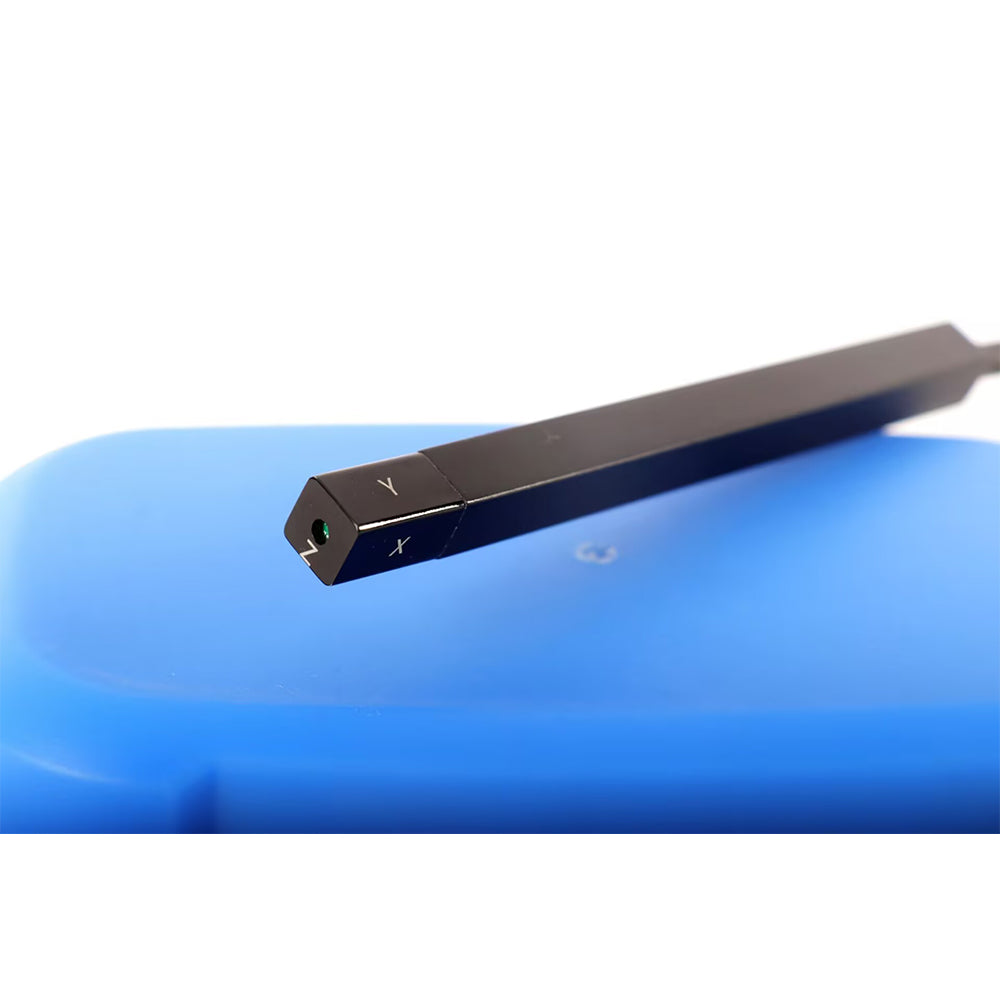

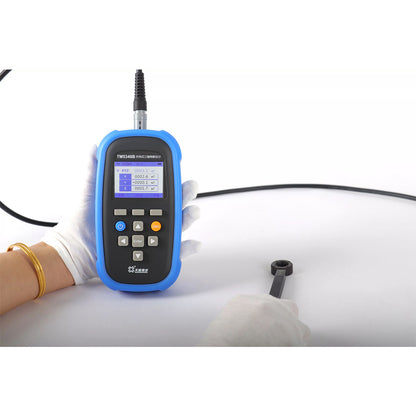

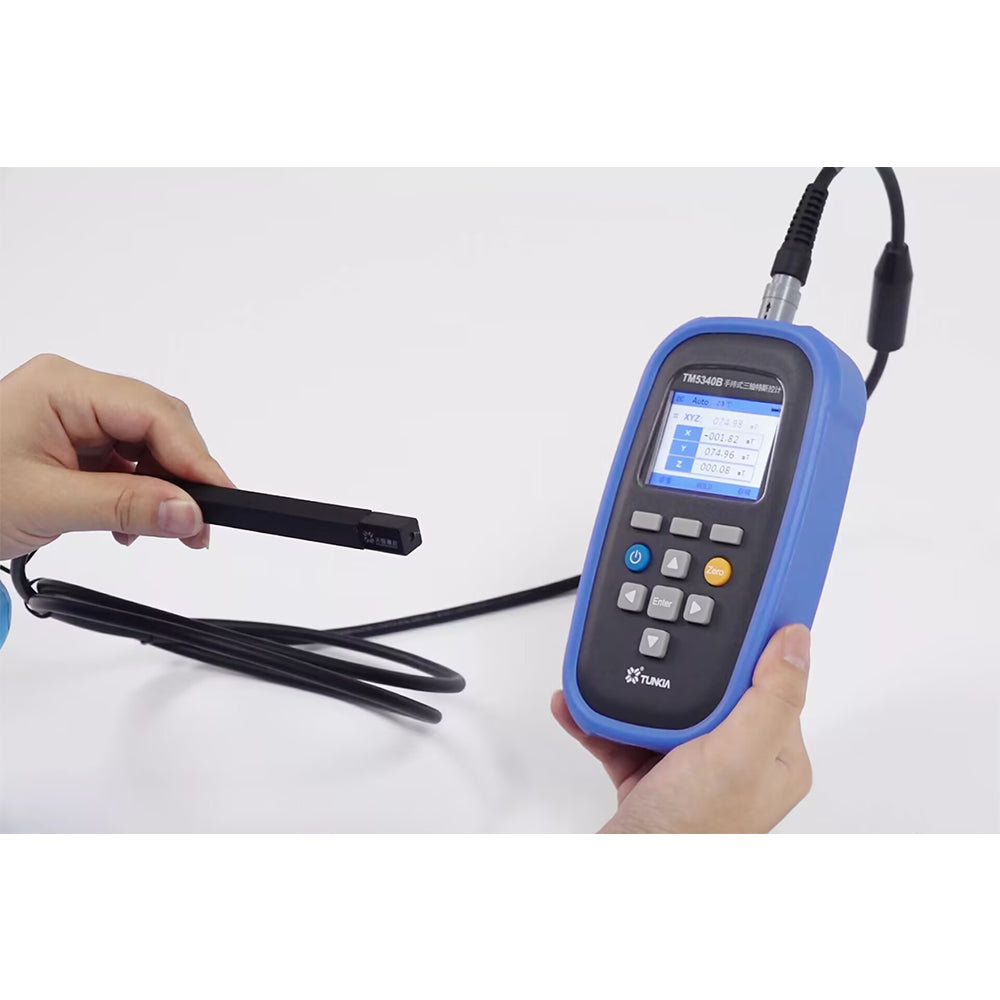

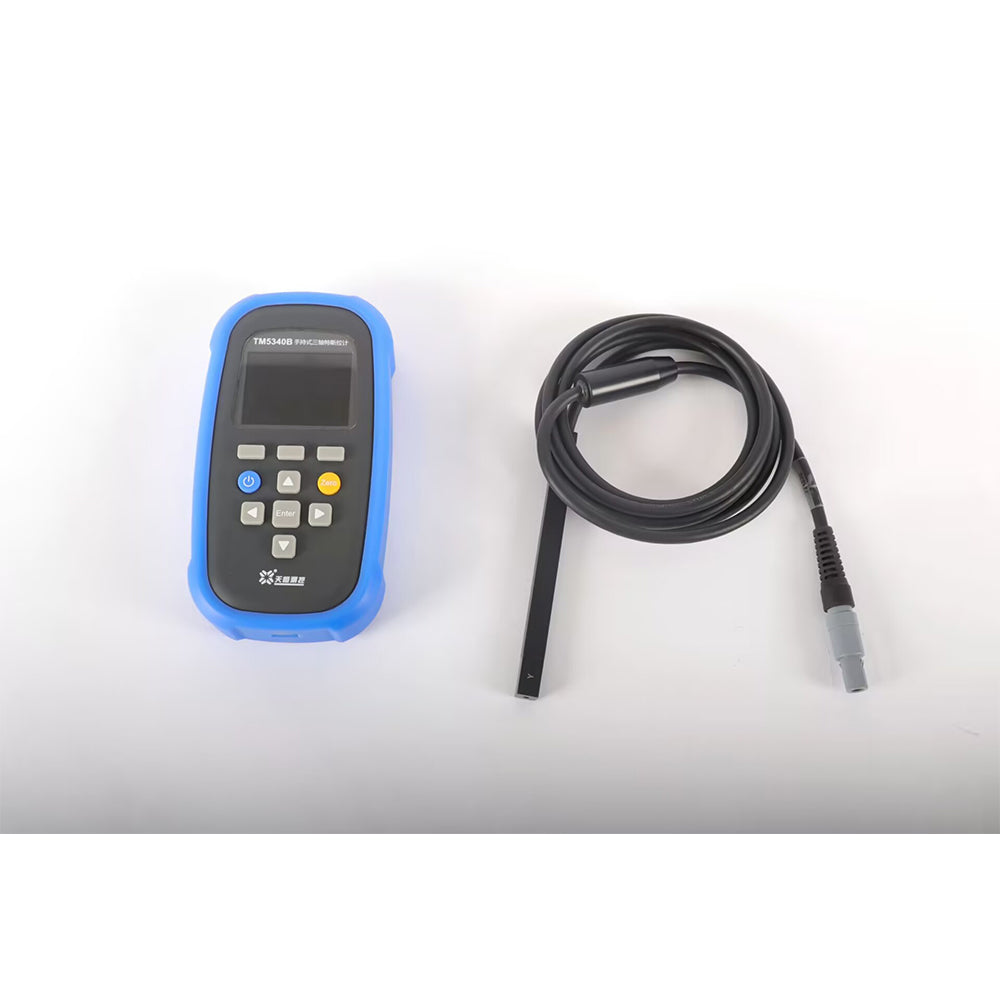

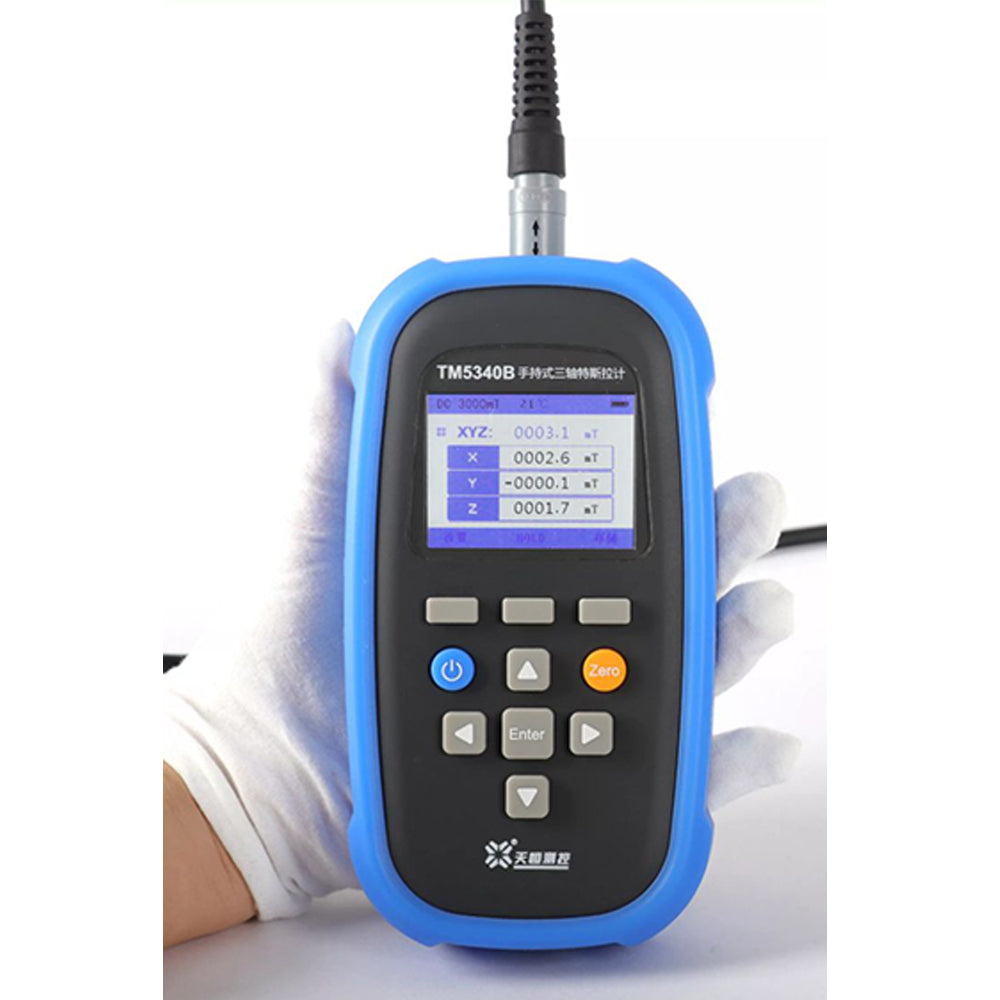

It is a portable, multi-function meter that measures magnetic field, equipped with high sensitivity, low drift triaxial Hall sensor. It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.

Features:

Range: 2 mT～3000 mT.

Accuracy DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)

Measuring XYZ component, vector synthetic value.

Switching AC or DC mode.

+/- polarity display.

Unit switch: mT, G, A/m.

Relative measurement mode.

Max. hold function.

Alarm of exceeding the upper / lower limit.

Probe temperature compensation.

Magnetic measurement data storage.

Lithium battery, remaining power display.

USB interface.

Specifications:

XYZ Range 30 mT R Range 52 mT Resolution 1μT

XYZ Range 300 mT R Range 520 mT Resolution 10μT

XYZ Range 3000 mT(Calibration only covers 2.5T) R Range 5200 mT Resolution 0.1 mT

Measuring Range 2 mT～3000 mT

Accuracy DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)

Frequency Range DC,40 Hz～500 Hz

Temperature Coefficient ± 0.06% / K

Zero Drift ± 0.1 mT / h

Display Digits 5

General Specifications:

Power Supply 4000 mAh lithium battery, USB charging

Temperature Performance Operating temperature:0°C～45°C

Storage temperature:-20°C～70°C

Humidity Performance Working humidity:20%～80% R·H, non-condensing

Storage humidity:< 85% R·H, non-condensing

Weight About 500 g

Interface Hall probe input interface, USB interface
