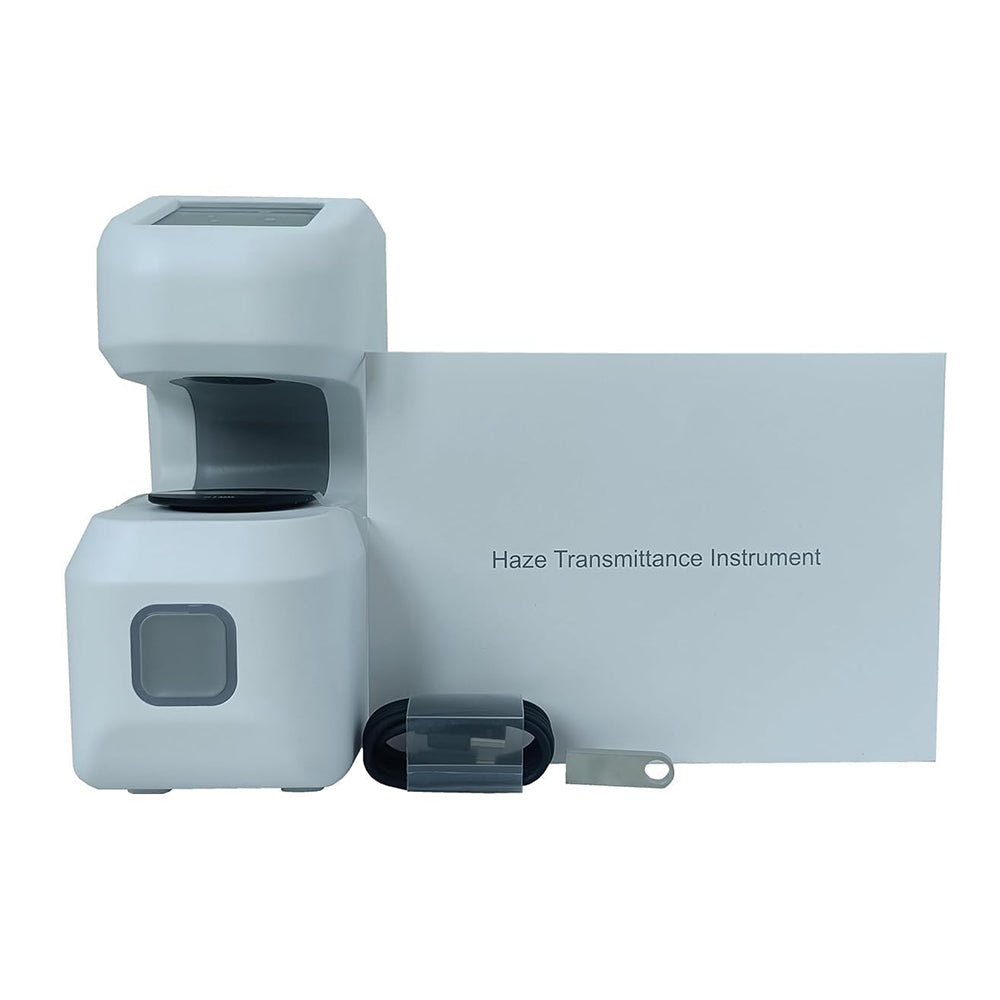

QIUSUO Three Apertures Haze Meter Haze and Transmittance Meter with Switchable 21mm 15mm 12mm Apertures Repeatability 0.02 for Haze Transmittance Test of Plastic Film

About this item

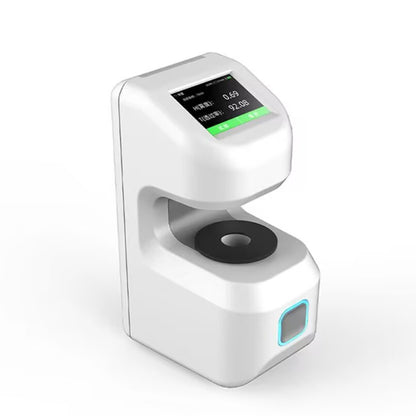

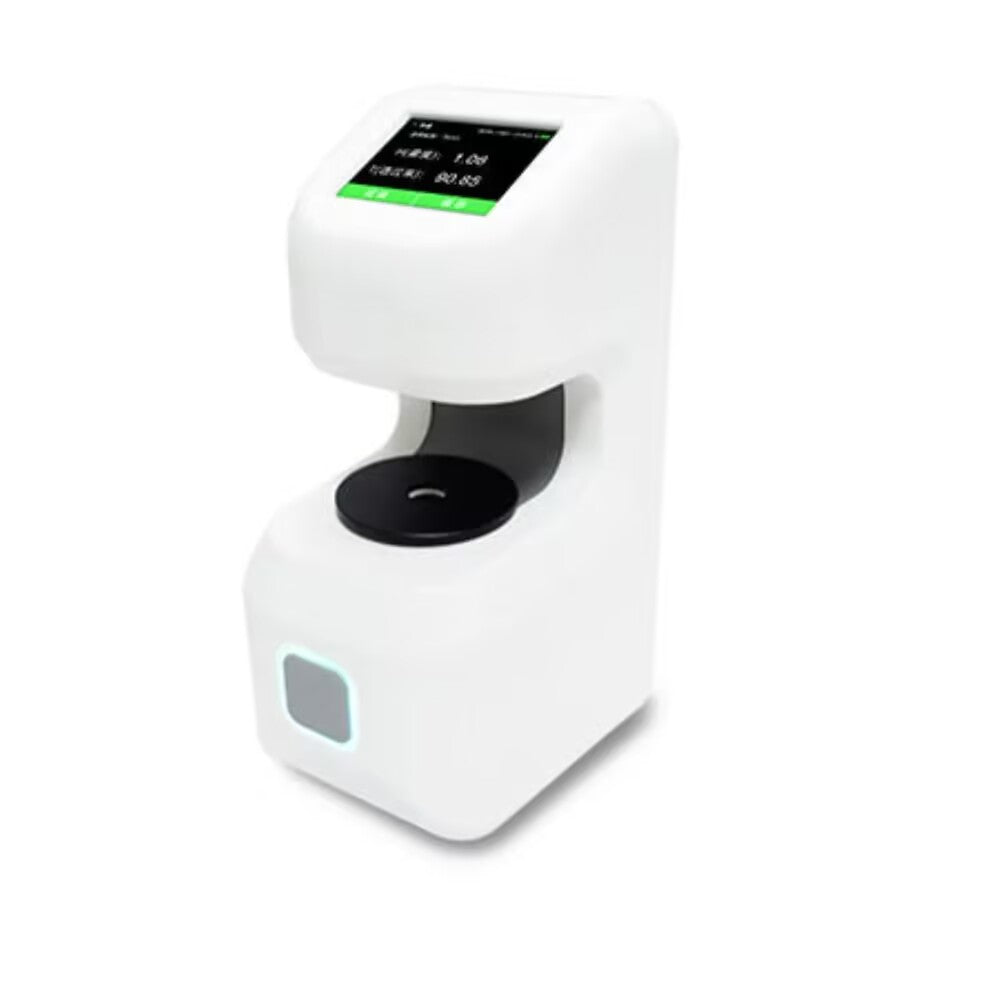

The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.

Dual Optical Paths Design

It contains three kinds of light source to measure the haze and transmittance of different standards.

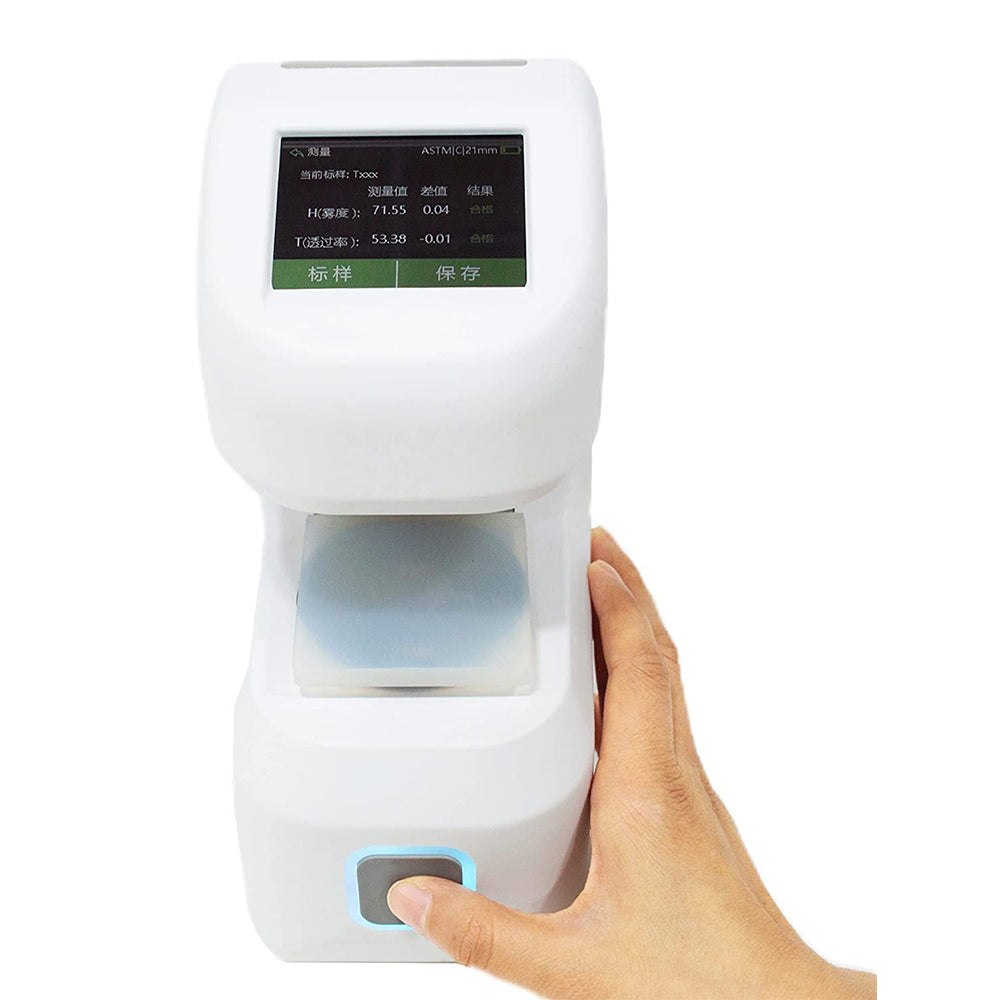

It adopts 2.8 inches touch screen

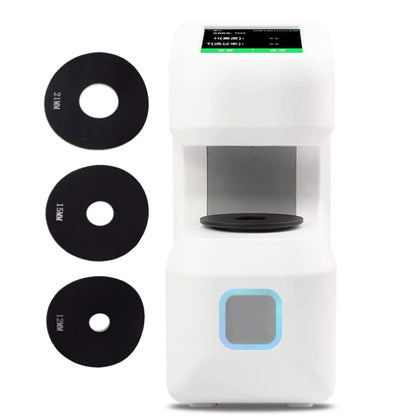

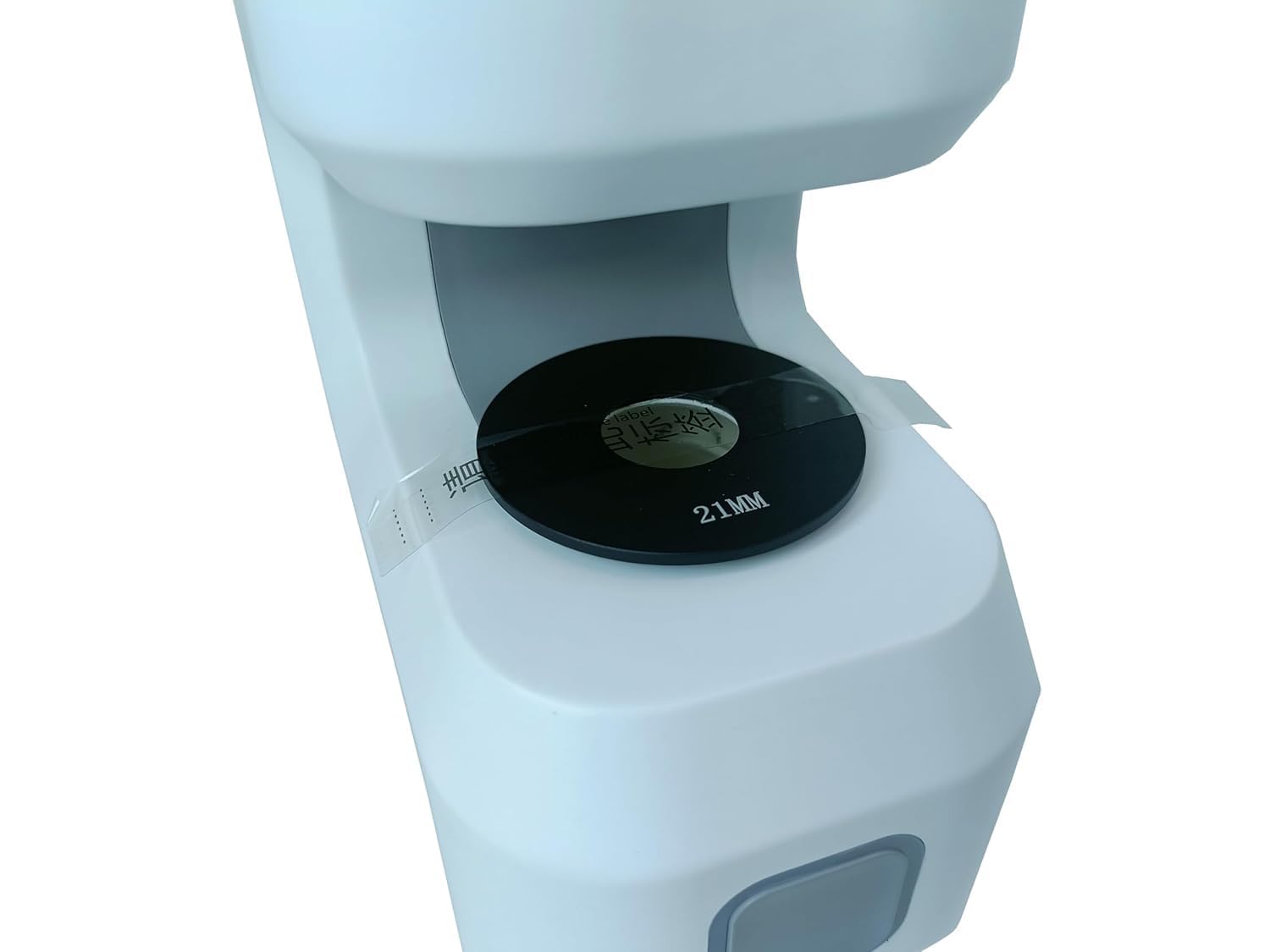

Supports 3 kinds of test apertures 21mm, 15mm & 12mm to measure the samples with different sizes.

Introduction:

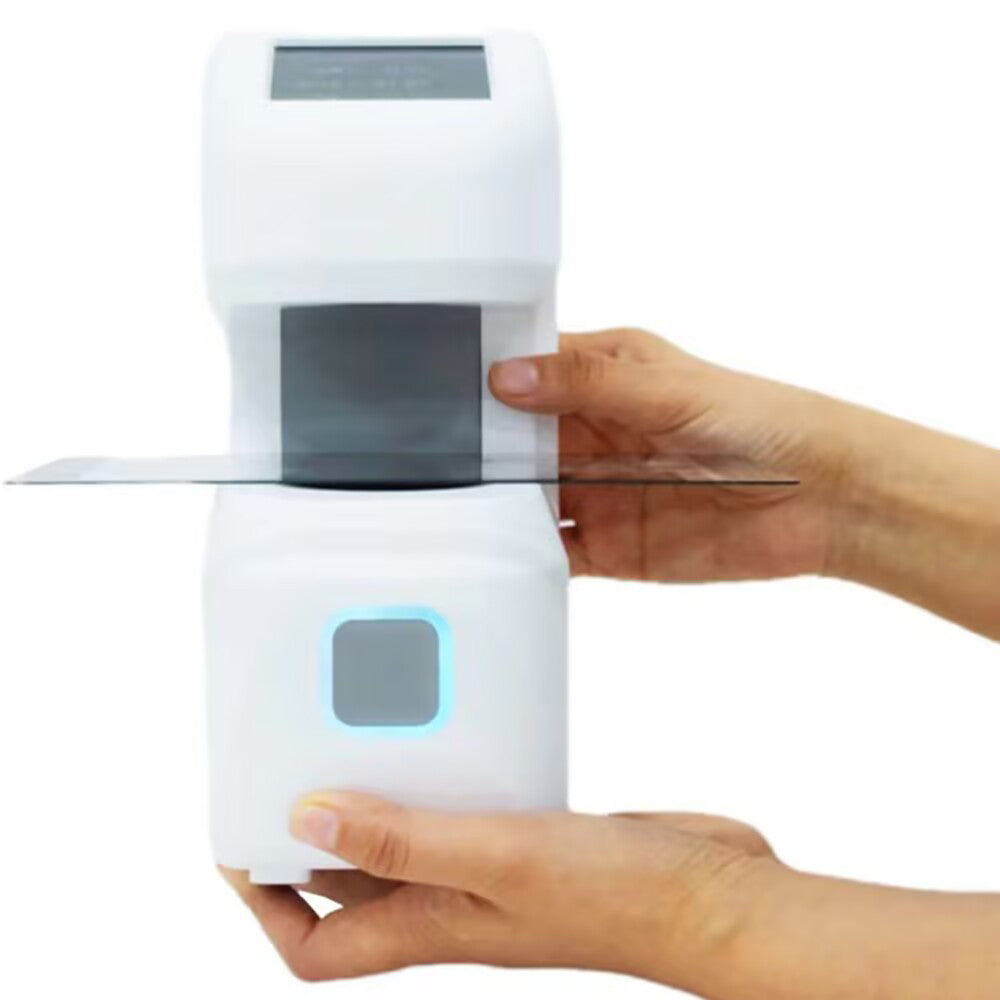

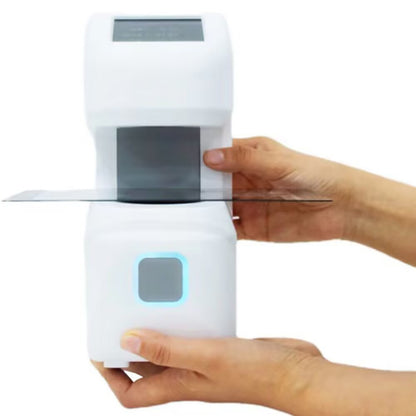

The handheld haze meter is compact in size and weighs only 1.25kg, making it easy to carry and measure haze and transmittance anytime and anywhere; Contains 3 calibers, covering multiple sizes for sample measurement; The repeatability reaches 0.02; 2.8-inch touch screen, connected to mini programs, massive storage; Supports lithium battery power supply.

Feature:

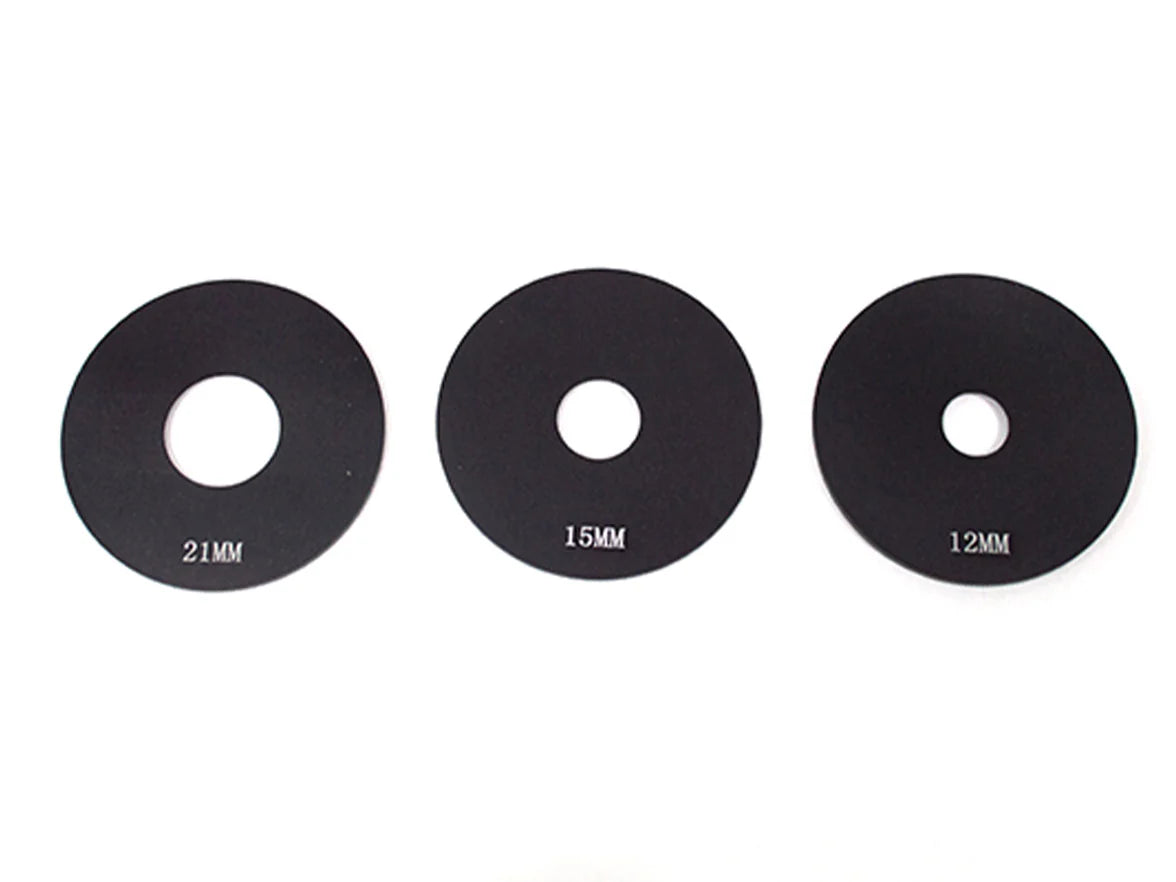

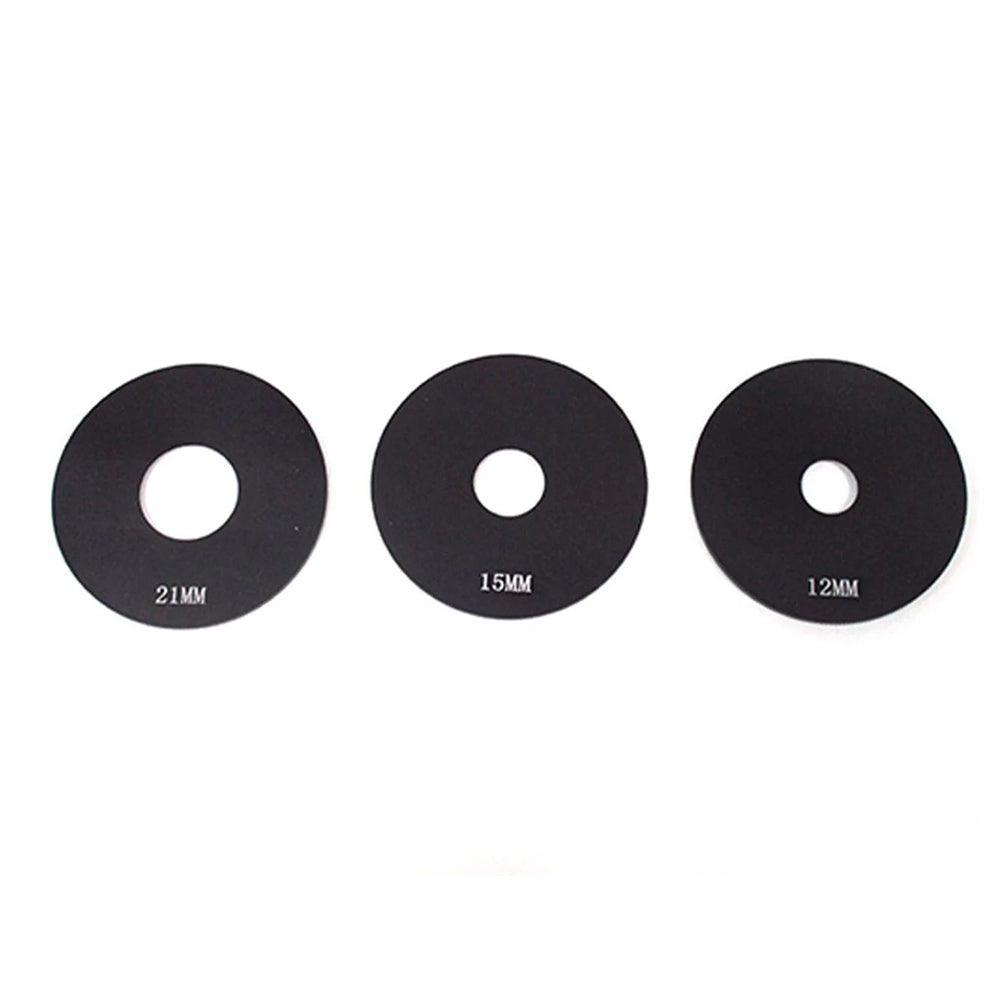

Measurement aperture: 21mm, 15mm, 12mm

Resolution: 0.01%

Repeatability: 0.02

Weight: 1.25kg

Light source: CIE-A, CIE-C, CIE-D65

Following standard: ASTM D1003/D1044, ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Measurement parameters: haze and transmittance under both ASTM and ISO standards

Spectral response: CIE spectral function Y/V (λ)

Optical path structure: 0/d

Measurement aperture: 21mm, 15mm, 12mm

Range: 0-100%

Resolution: 0.01%

Repeatability: 0.02

Sample size: Thickness ≤ 40mm

Display: 2.8-inch touch screen

Storage data: massive storage

Interface: USB interface

Power supply: lithium battery power supply

Working temperature: 5-40 ℃, relative humidity of 80% or lower (at 35 ℃), no condensation of water vapor

Storage temperature: -20 ℃~45 ℃, relative humidity of 80% or lower (at 35 ℃), no condensation of water vapor

Volume: Length X Width X Height: 133mmX99mmX224mm

Weight: 1.25kg

Optional: Customized Caliber Plate
