It has a computer interface and is equipped with 4G wireless transmission and GPS positioning module, which can achieve synchronization and transmission of time, address, etc. while measuring.

About this Item:

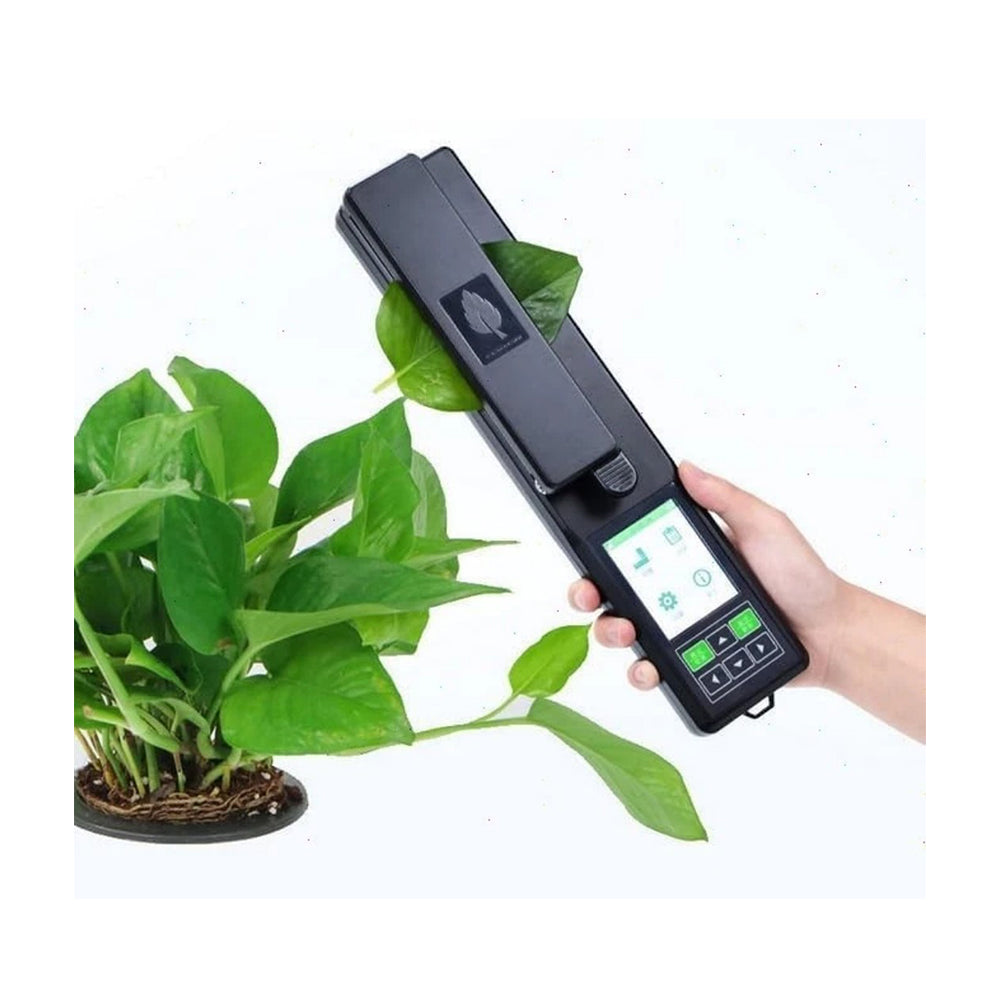

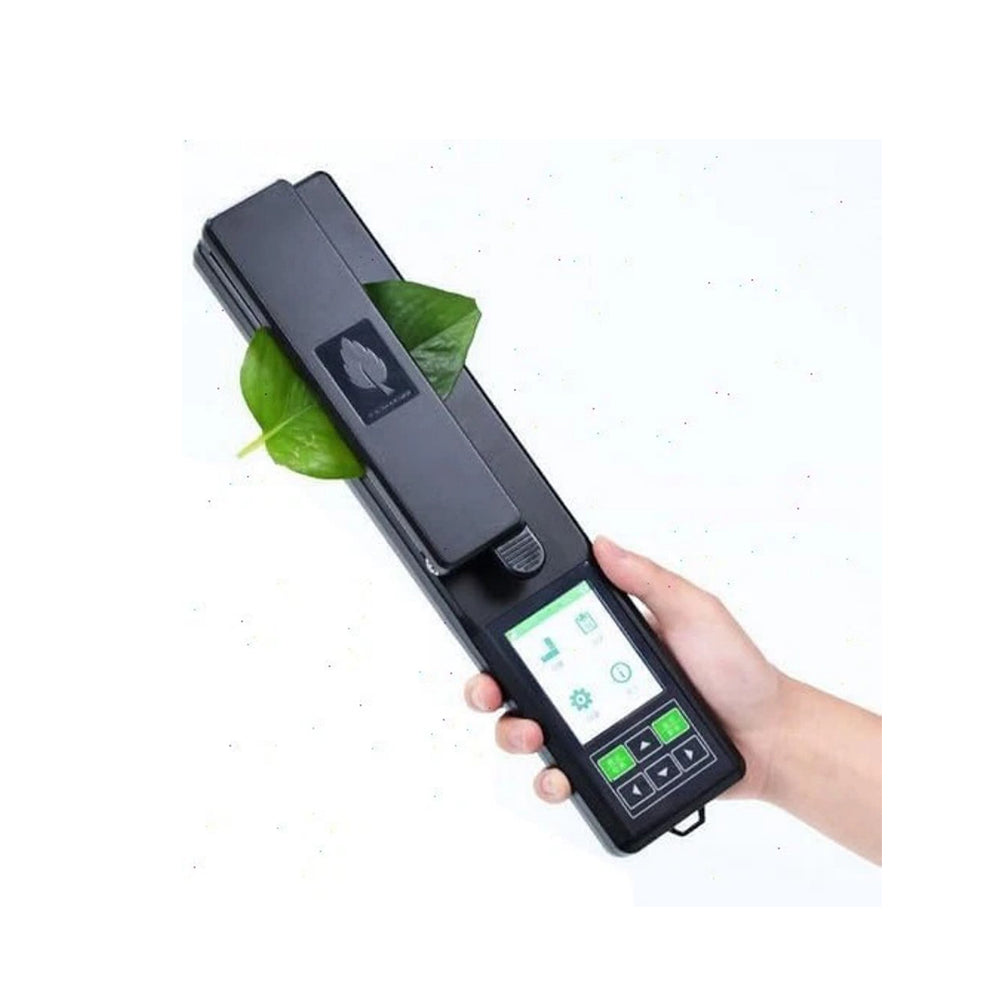

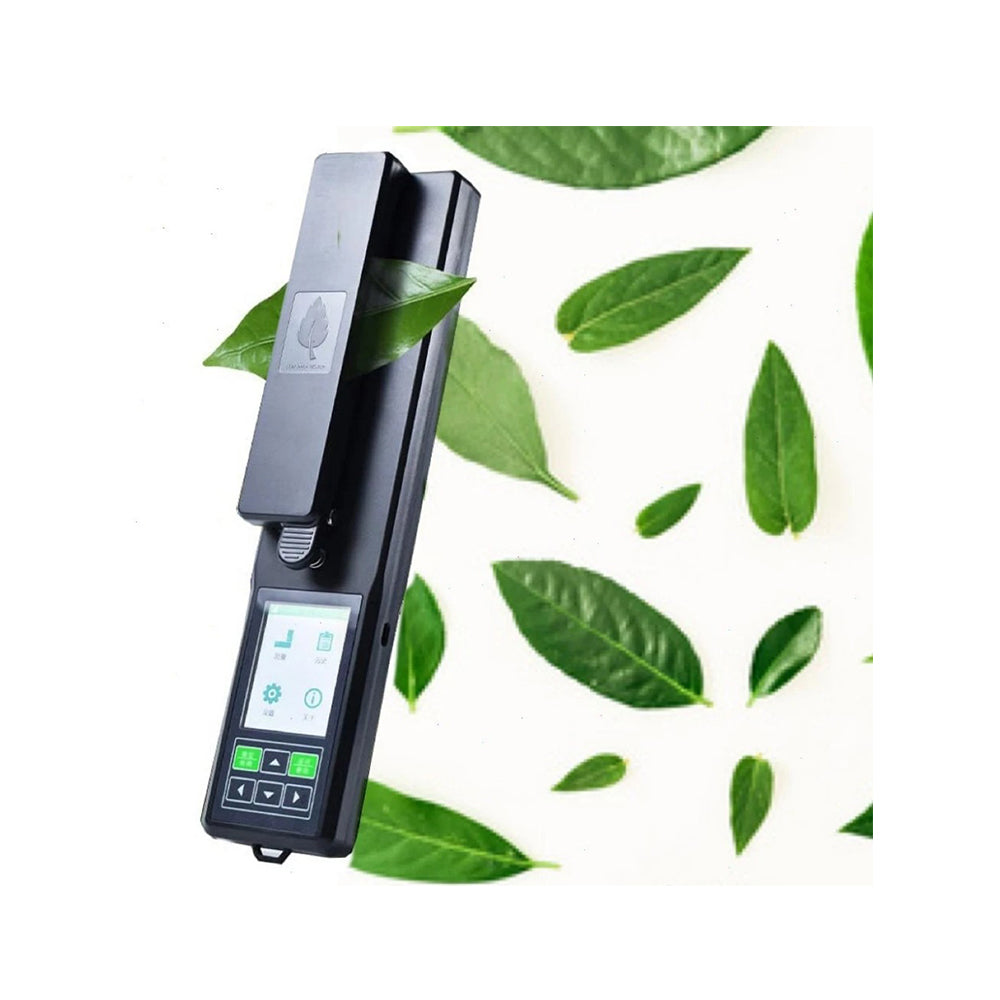

live leaf area measuring instrument is a newly developed product. It is a portable instrument that is easy to use and can work in the field. It can accurately, quickly, and undamaged measure the leaf area and related parameters of leaves, as well as measure the area of picked plant leaves and other sheet-like objects. Widely used in agriculture, meteorology, forestry, and other fields.

Functional characteristics:

The integrated design of the host and probe makes it more convenient to operate.

Adopting microcomputer technology, LCD large liquid crystal display.

High performance and large capacity battery, without external power supply, low voltage display, sustainable measurement, more suitable for field measurement.

Large blade area can be measured at once (2000 * 155mm2)

Can store 5000 sets of data (leaf area, leaf length, leaf width).

Multiple parameters of the blade can be measured: leaf area, average leaf area, leaf length, and leaf width.

Built in calibration module, users can calibrate according to different usage environments
Communication interface: Type-C interface, which can import data into the computer.

GPS positioning: Integrated with high-speed GPS positioning module, uploaded data comes with time and latitude information, making it convenient and effective for data processing.

4G wireless transmission: Measurement data can be uploaded to the cloud platform in real time, and data such as measurement time and leaf area can be viewed. Histogram analysis can be performed on different parameters. Data can be exported in Excel form, printed online, displayed according to the selected time period, analyzed in tables, histograms, and downloaded online.

It has a computer interface and is equipped with 4G wireless transmission and GPS positioning module, which can achieve synchronization and transmission of time, address, etc. while measuring

Technical parameters:

(1) Area unit: cm2

(2) Resolution: 0.01cm2

(3) Measurement accuracy: ± 2%

(4) Width range: 0-155mm

(5) Length range: 0-2000mm

(6) Data recording: 0-5000 sets

(7) Power supply: Lithium battery (internal) 3200mA+(external replaceable) 1400mA

Configuration list:

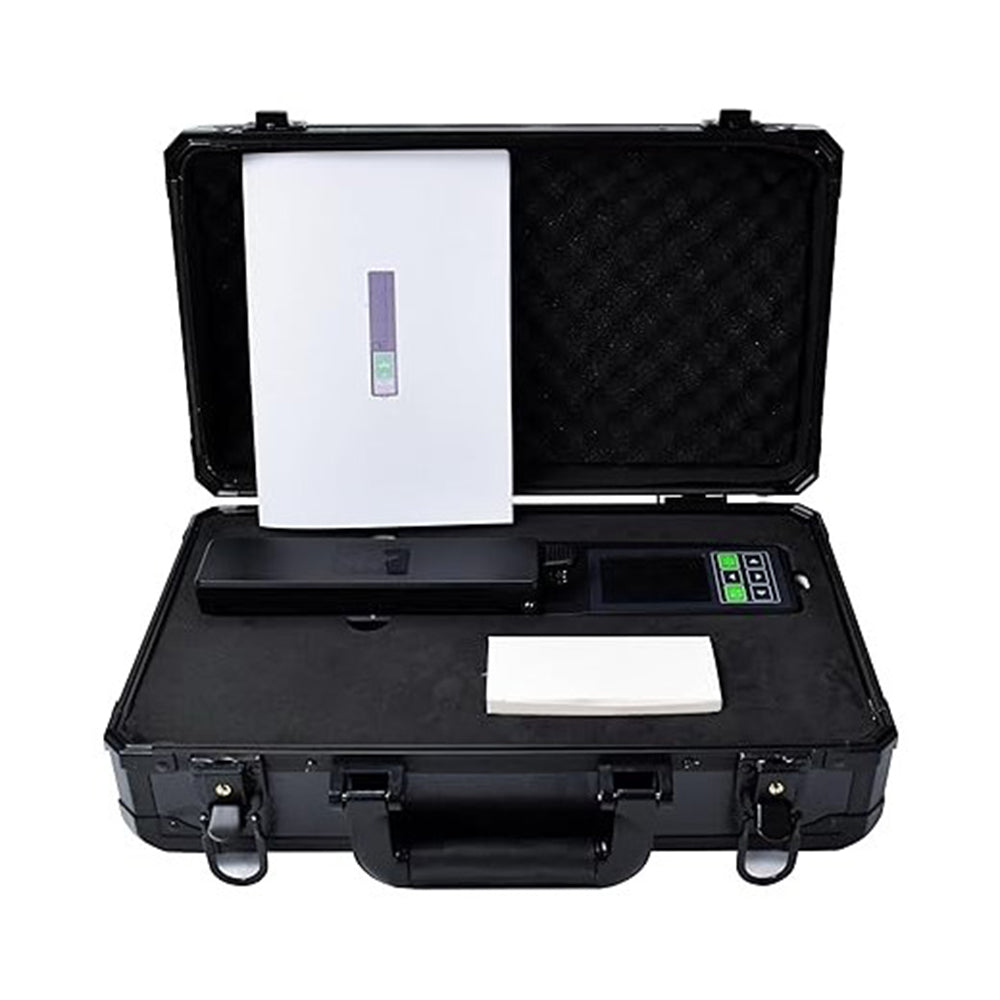

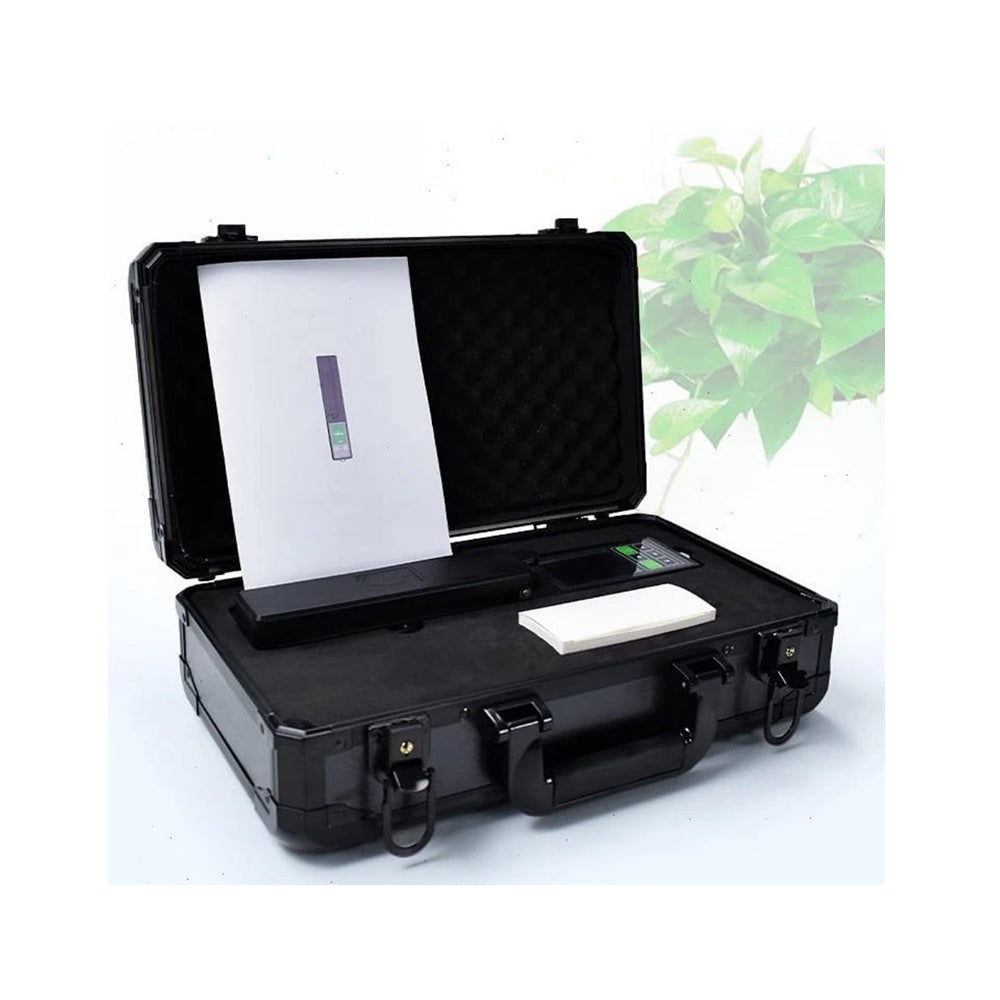

host, aluminum box, data cable, charger, USB drive (upper computer software, operation video, electronic version manual), 4G IoT network card (2 years), hanging rope, manual, certificate of conformity.
