Note:This model features a USB interface for data transfer; however, the data transfer function is incompatible with Mac systems and is ONLY operational on Windows systems.

About this Item:

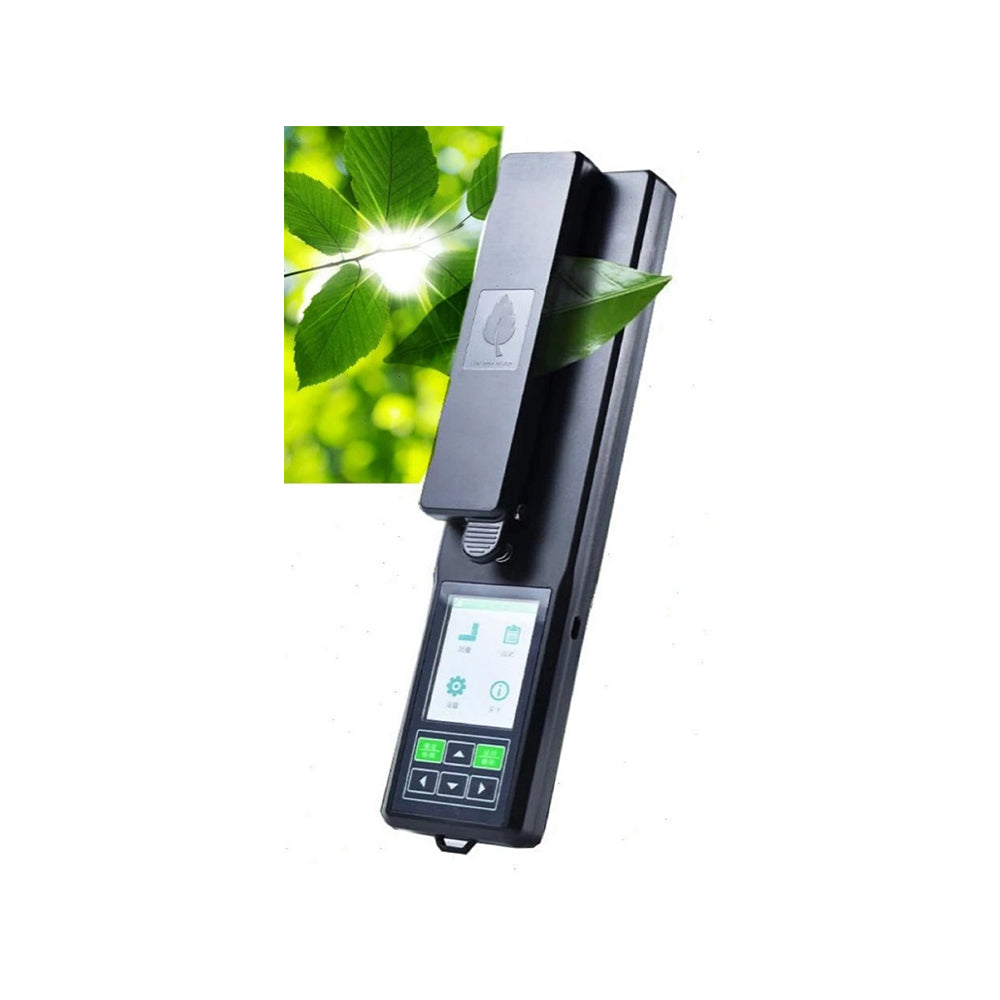

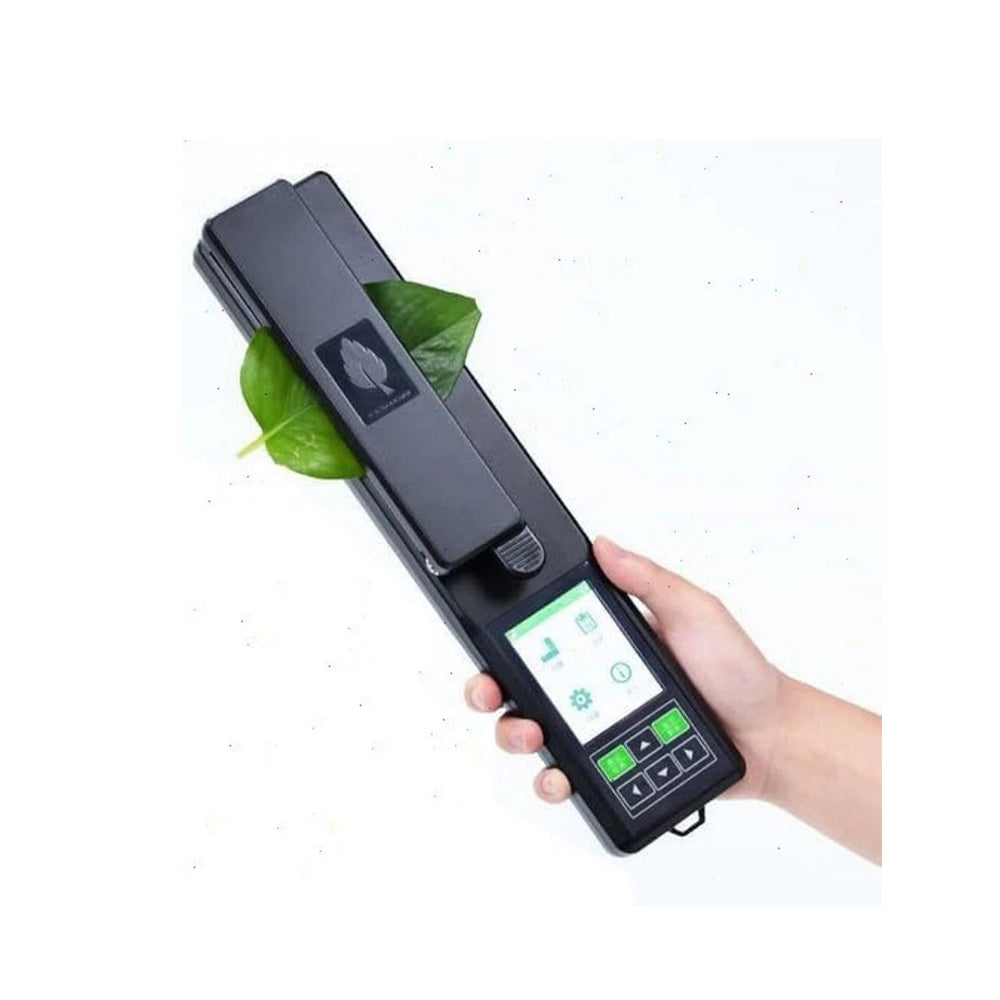

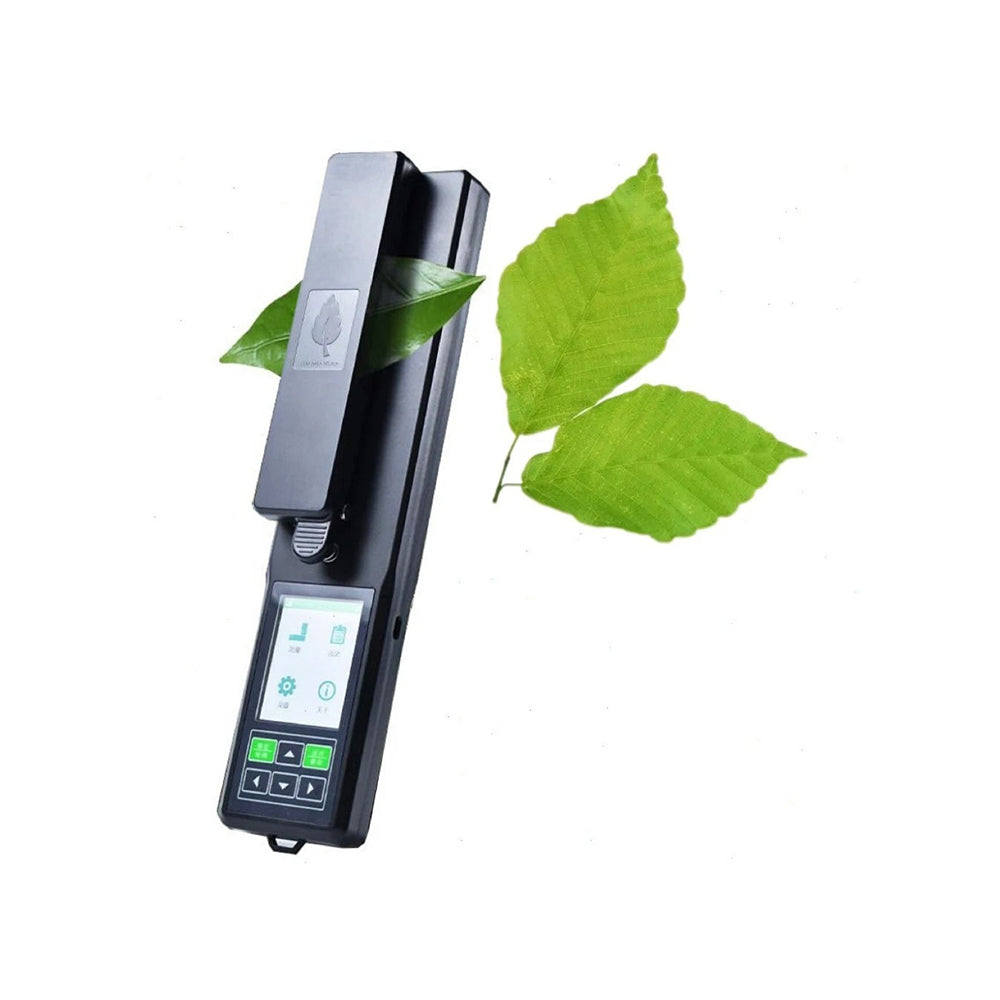

live leaf area measuring instrument is a portable instrument that is easy to use and can work in the field. It can accurately, quickly, and undamaged measure the leaf area and related parameters of leaves, as well as measure the area of picked plant leaves and other sheet-like objects. Widely used in agriculture, meteorology, forestry, and other fields.

Functional characteristics:

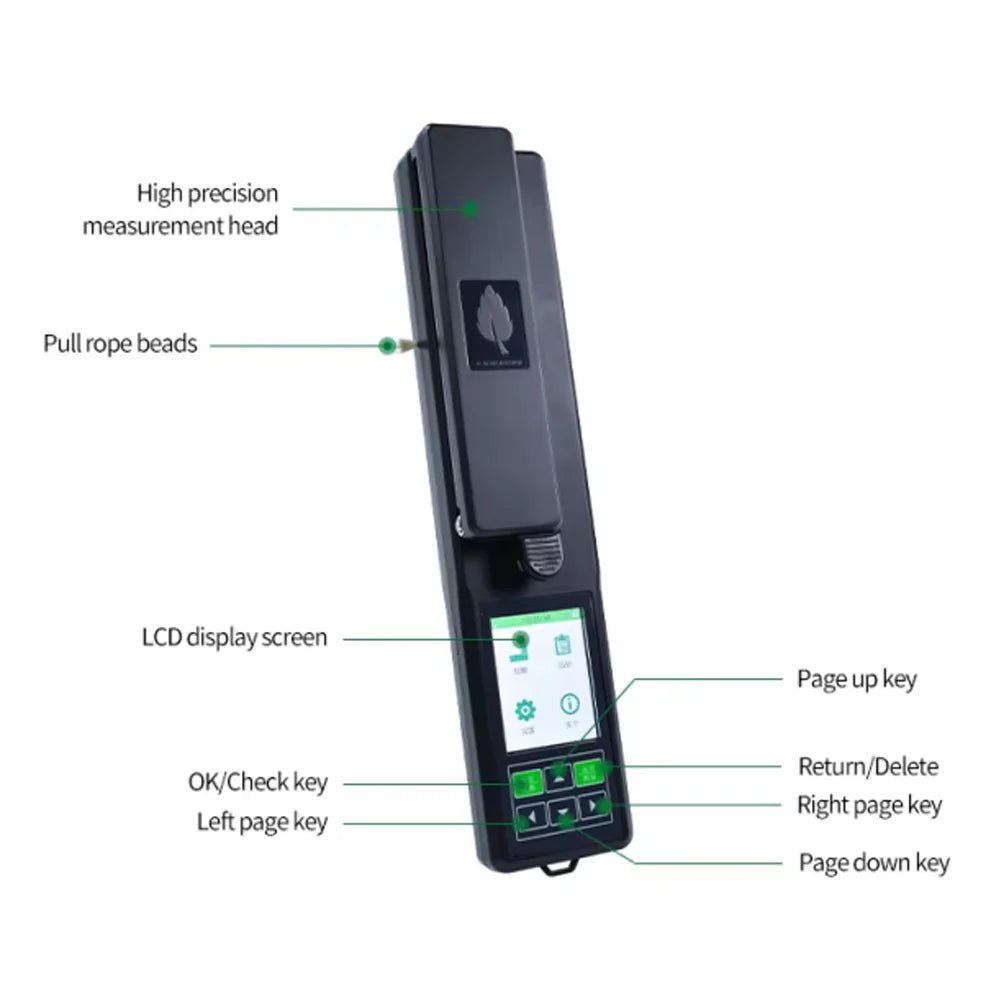

The integrated design of the host and probe makes it more convenient to operate.

Adopting microcomputer technology, LCD large liquid crystal display.

High performance and large capacity battery, without external power supply, low voltage display, sustainable measurement, more suitable for field measurement.

Large blade area can be measured at once (2000 * 155mm2)

Can store 5000 sets of data (leaf area, leaf length, leaf width)

Multiple parameters of the blade can be measured: leaf area, average leaf area, leaf length, and leaf width.

Built in calibration module, users can calibrate according to different usage environments.

Communication interface: Type-C interface, which not only stores data on the host, but also transfers data to the computer. The software can print and convert it to Excel format.

Technical parameters:

Area unit: cm2

Resolution: 0.01cm2

Measurement accuracy: ± 2%

Width range: 0-155mm

Length range: 0-2000mm

Data recording: 0-5000 sets

Power supply: Lithium battery (internal) 3200mA+(external replaceable) 1400mA

Configuration list:

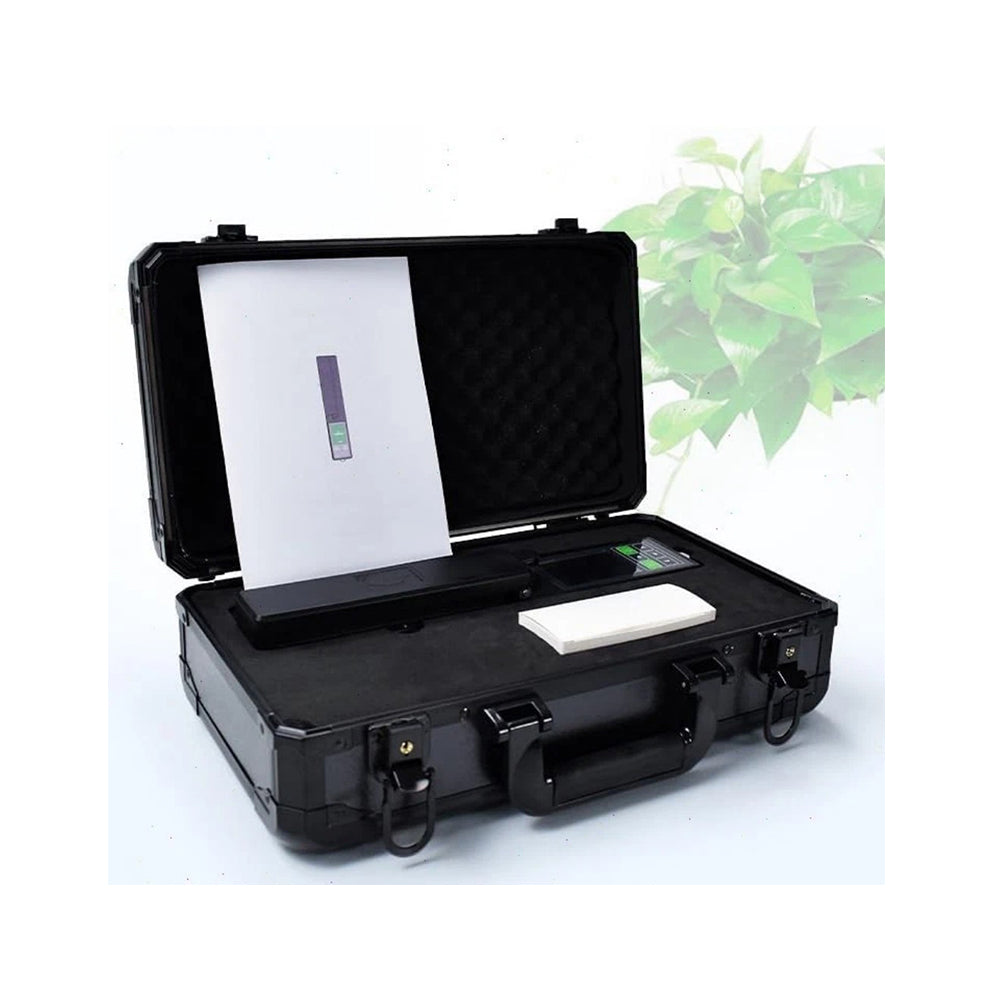

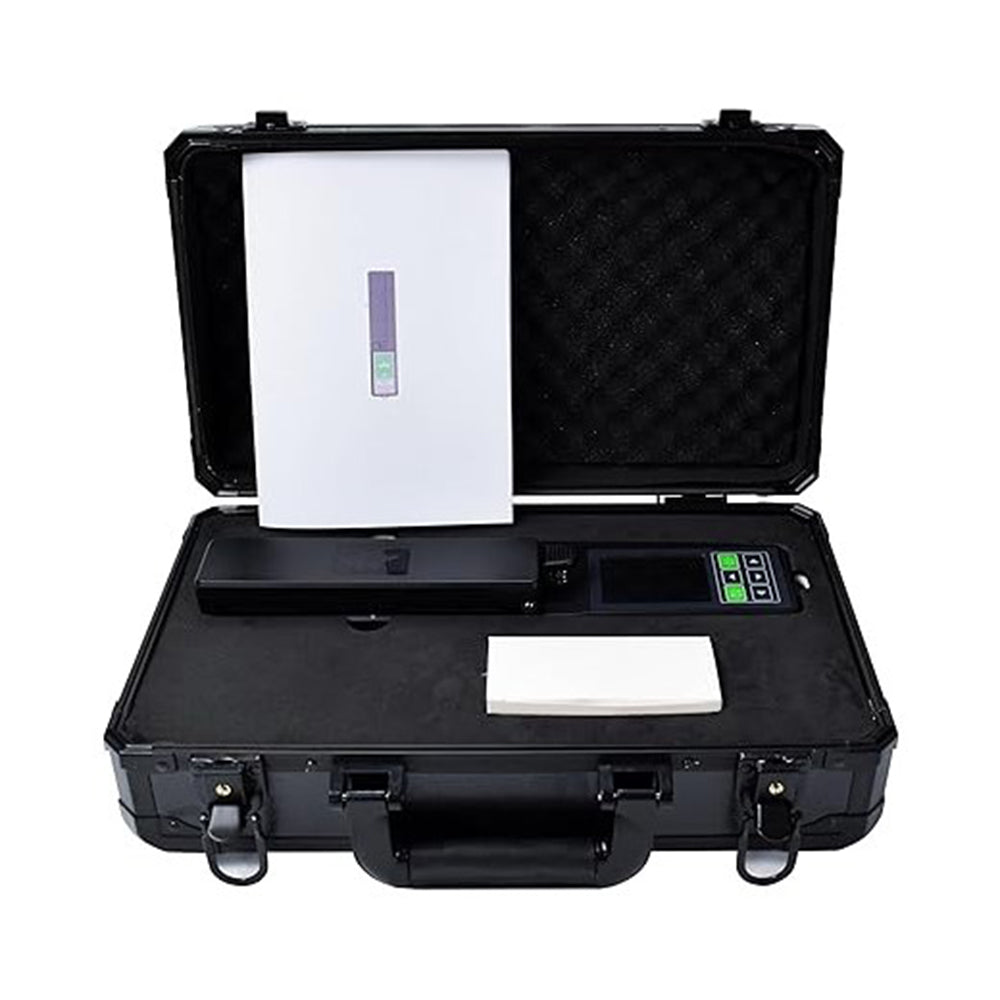

Host, aluminum box, data cable, charger, USB drive (upper computer software, operation video, electronic version manual), hanging rope, manual, certificate of conformity.
