Description

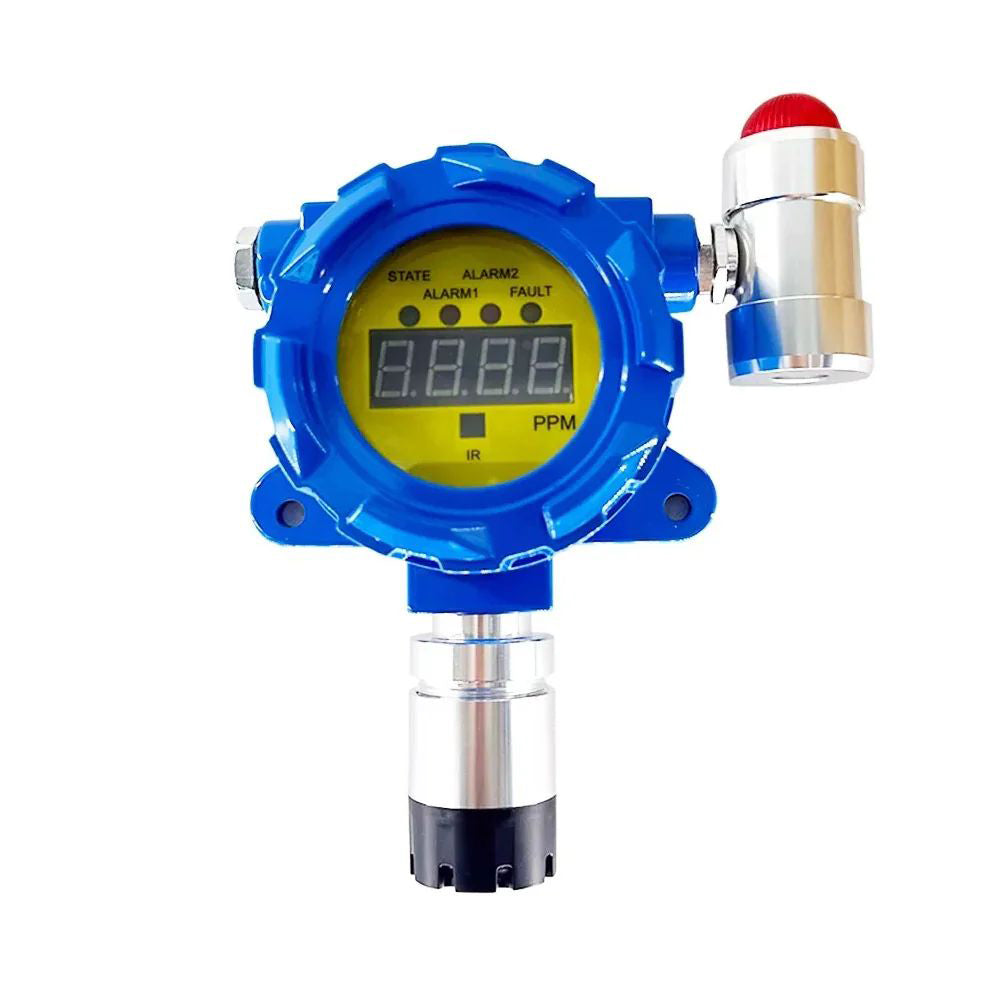

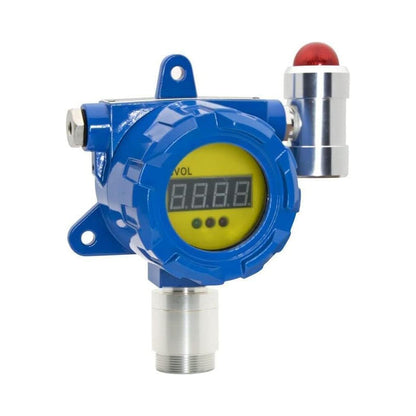

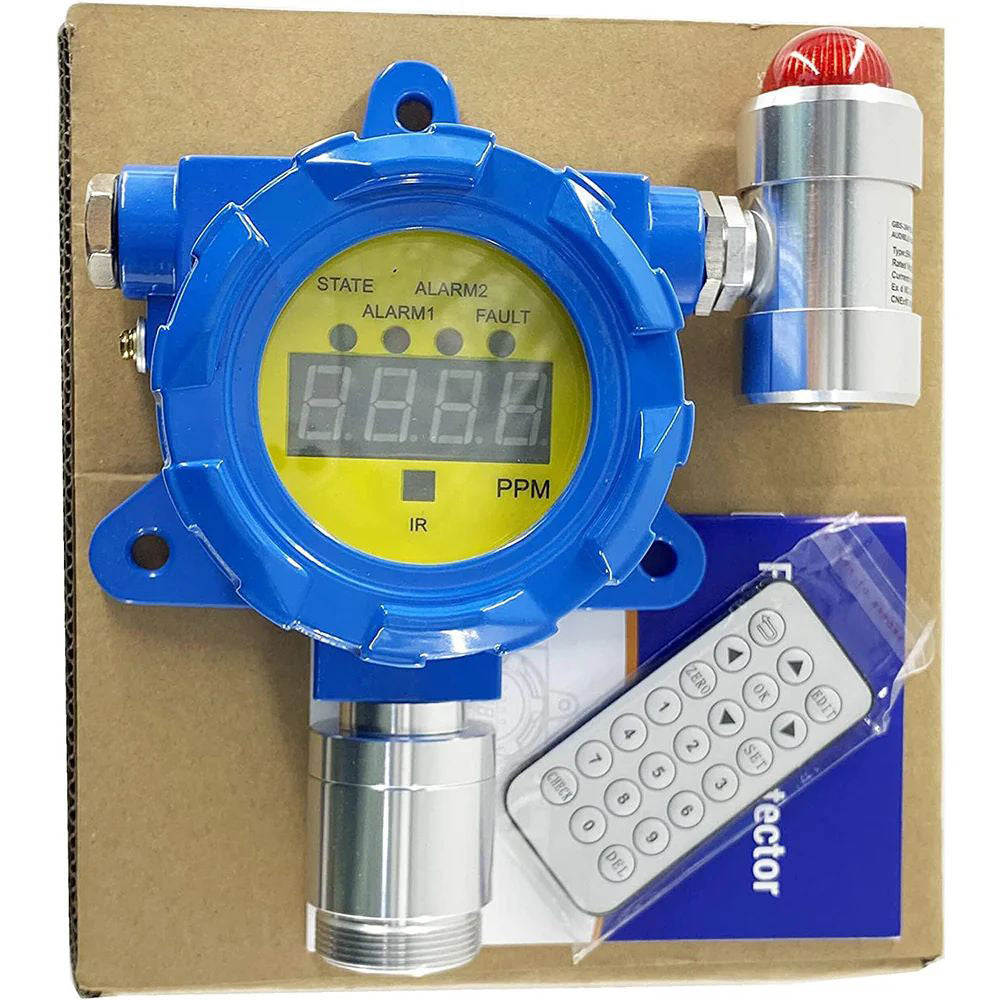

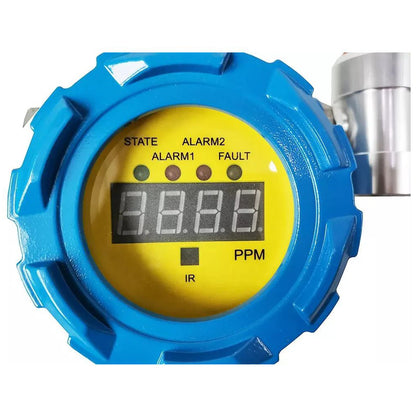

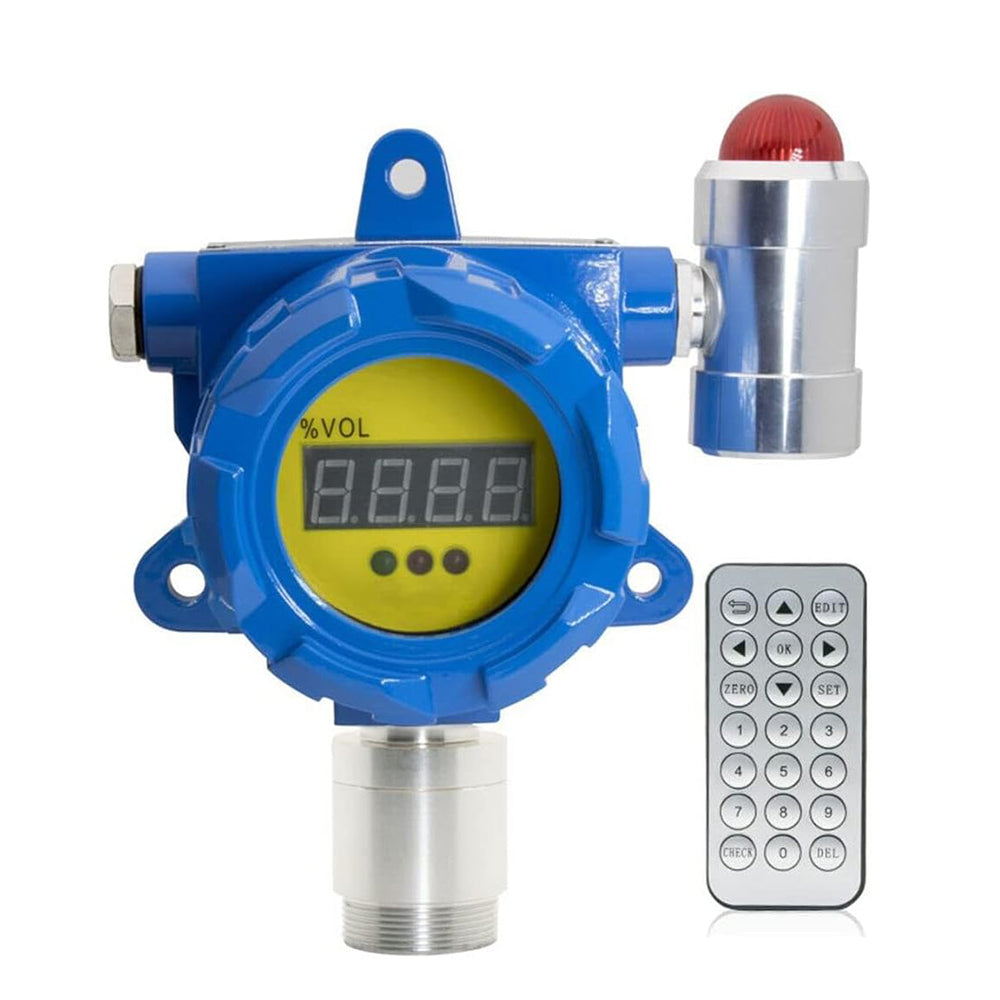

QIUSUO Fixed Ozone Gas Detector Ozone Leak Detector with Measurement Range from 0 to 20ppm Resolution 0.1ppm L-alarm 5ppm H-alarm 10ppm Explosion-Proof Water-Proof for Continuous Monitoring of Measurable Gases in Industrial Environments
About this item
Test gas: Ozone (O3)
Measuring range: 0-20ppm
Resolution: 0.1ppm
L-alarm: 5ppm;H-alarm: 10ppm
It is used to detect the concentration of flammable gas or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value, the controller will sound and light an alarm to promptly remind to take safety measures to prevent explosion and poisoning accidents, so as to protect life and property.
Overview:
It is used to detect the concentration of flammable gas or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value, the controller will sound and light an alarm to promptly remind to take safety measures to prevent explosion and poisoning accidents, so as to protect life and property.
This product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc. It adopts industrial-grade sensor, the instrument shell is designed with explosion-proof structure, 4-20mA standard signal or directly into the DOS system, and can be widely used in metallurgy, petroleum, chemical, municipal and other industries, and is in the leading level of similar products in China.

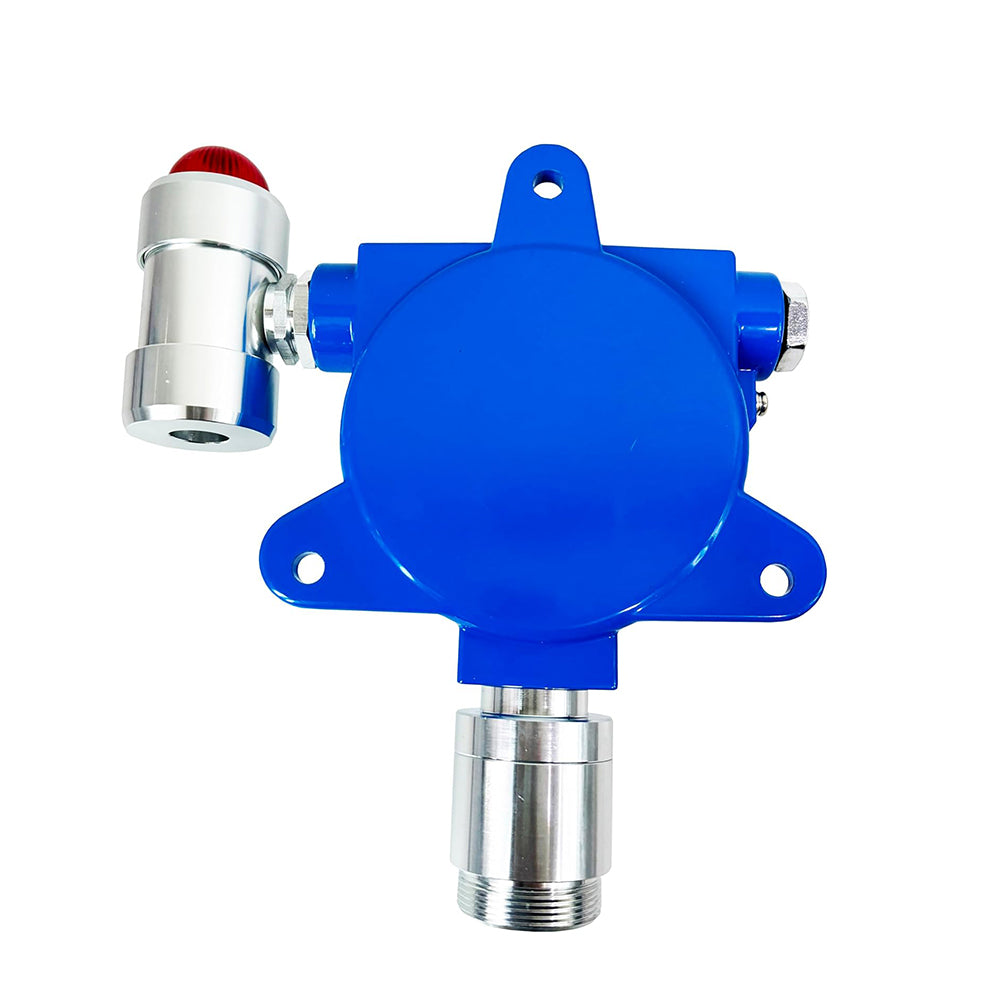

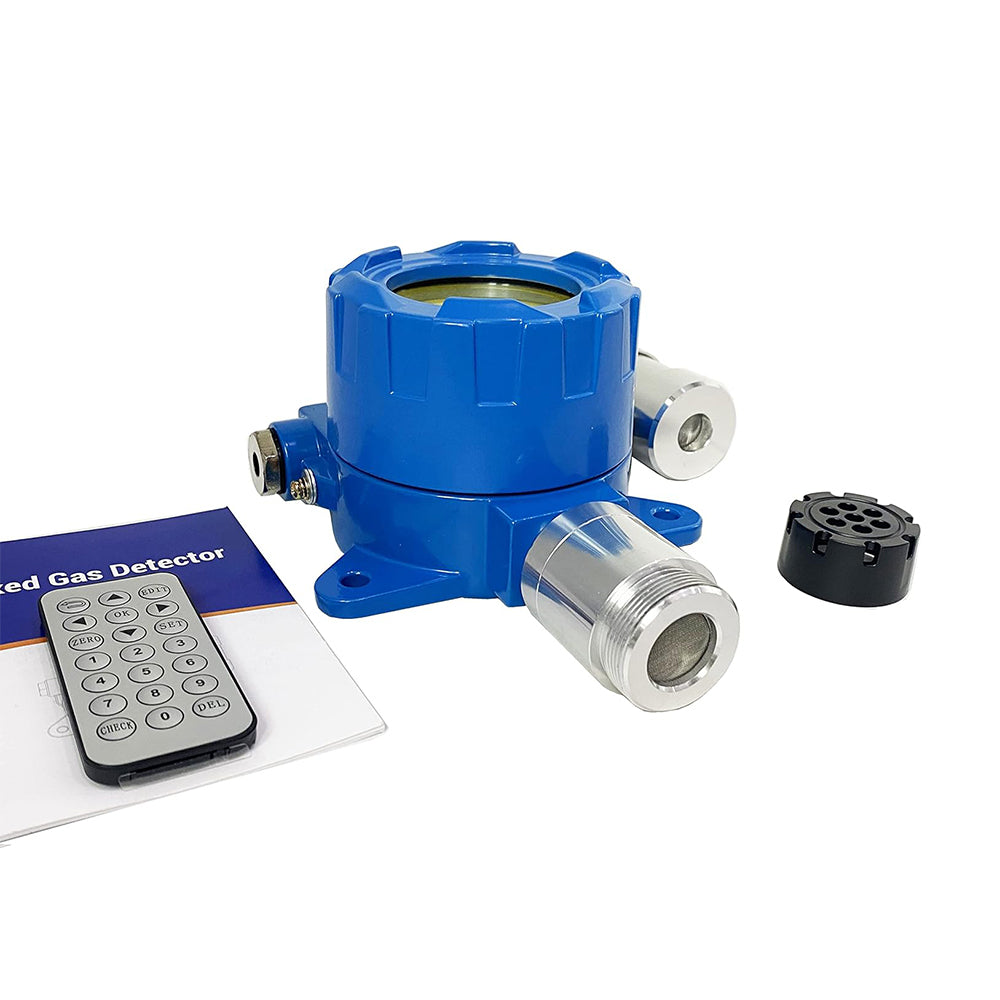

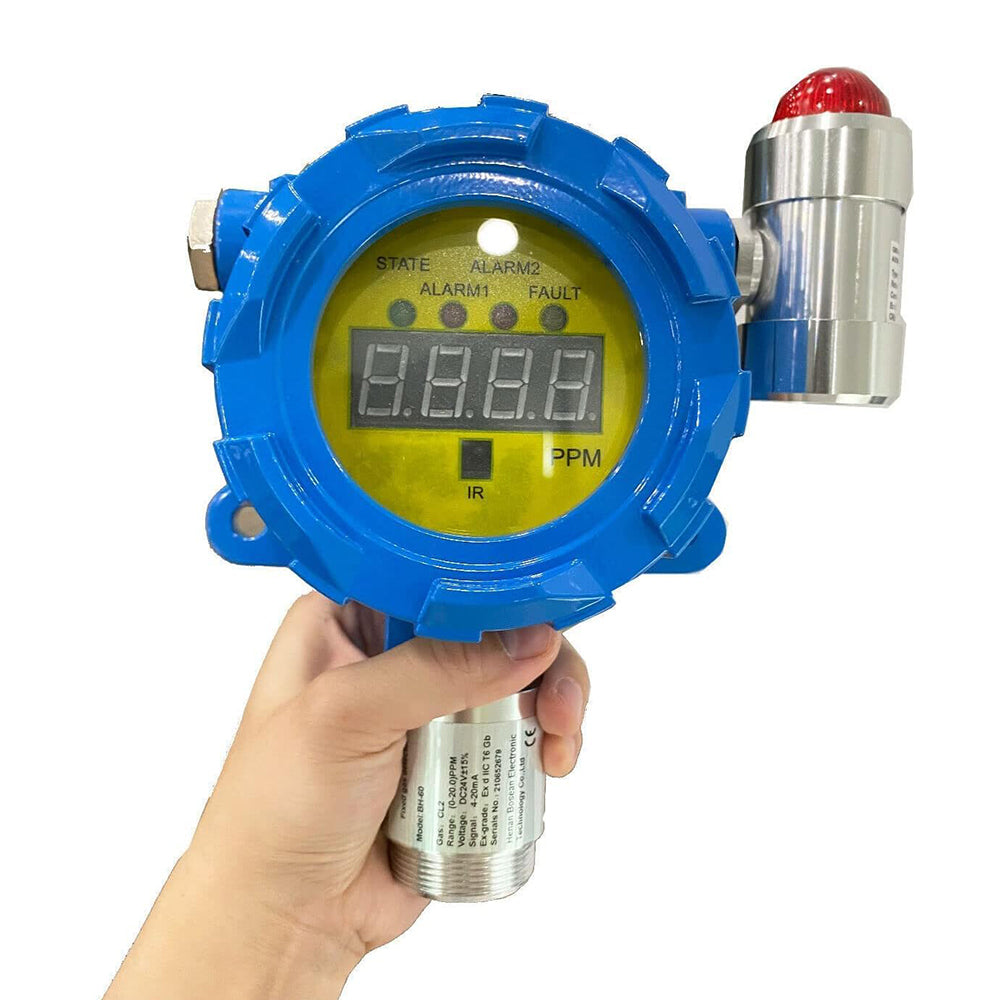

The housing adopts die-casting aluminum shell with explosion-proof structure design, the groove design of the upper cover can lock the housing, the front side of the sensor is designed with downward structure to ensure good contact between the sensor and the gas, and the inlet port adopts explosion-proof waterproof connector.
Features:
Test gas: Ozone (O3)
Measuring range: 0-20ppm
Resolution: 0.1ppm
L-alarm: 5ppm;H-alarm: 10ppm
Explosion proof grade: Exd ⅡC T6 Gb
Response time: ≦30S
Power supply: DC24V±10%
Working temperature: -20℃～50℃
Output current: -20mA;Working humidity: -95%RH
Contact output: ree contact output, max power 1kW
Single input: 20mA and RS485
Installation method: all-mounted
Shell material：Aluminum
Dimensions: 190x150x95mm（L×W×H）
