QIUSUO Electromagnetic Ultrasonic Thickness Gauge Non-contact Electromagnetic Ultrasonic Thickness Gauge withSampling Rate 80Msps Bandwidth 2.5Mhz～6Mhz Accuracy ±0.01mm USB Communication Interface Sound Velocity Saving

QIUSUO Electromagnetic Ultrasonic Thickness Gauge Non-contact Electromagnetic Ultrasonic Thickness Gauge withSampling Rate 80Msps Bandwidth 2.5Mhz～6Mhz Accuracy ±0.01mm USB Communication Interface Sound Velocity Saving

$2,580.00
$2,580.00
Sale Sold out
Shipping calculated at checkout.

View full details

Description

QIUSUO Electromagnetic Ultrasonic Thickness Gauge Non-contact Electromagnetic Ultrasonic Thickness Gauge withSampling Rate 80Msps Bandwidth 2.5Mhz～6Mhz Accuracy ±0.01mm USB Communication Interface Sound Velocity Saving

About this item

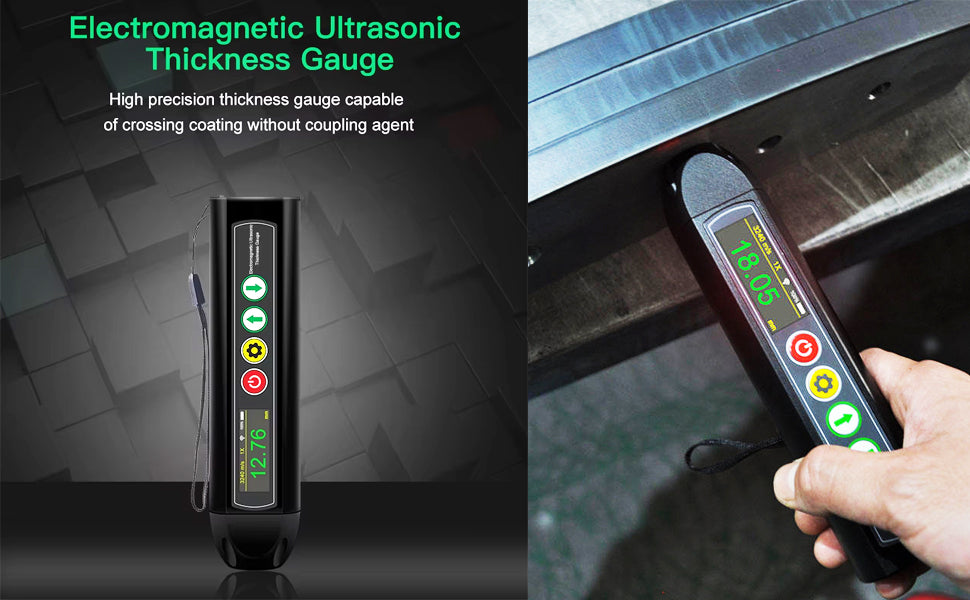

Non-contact thickness measurement device that does not require acoustic coupling agents. It can measure the thickness of metal or magnetic materials.

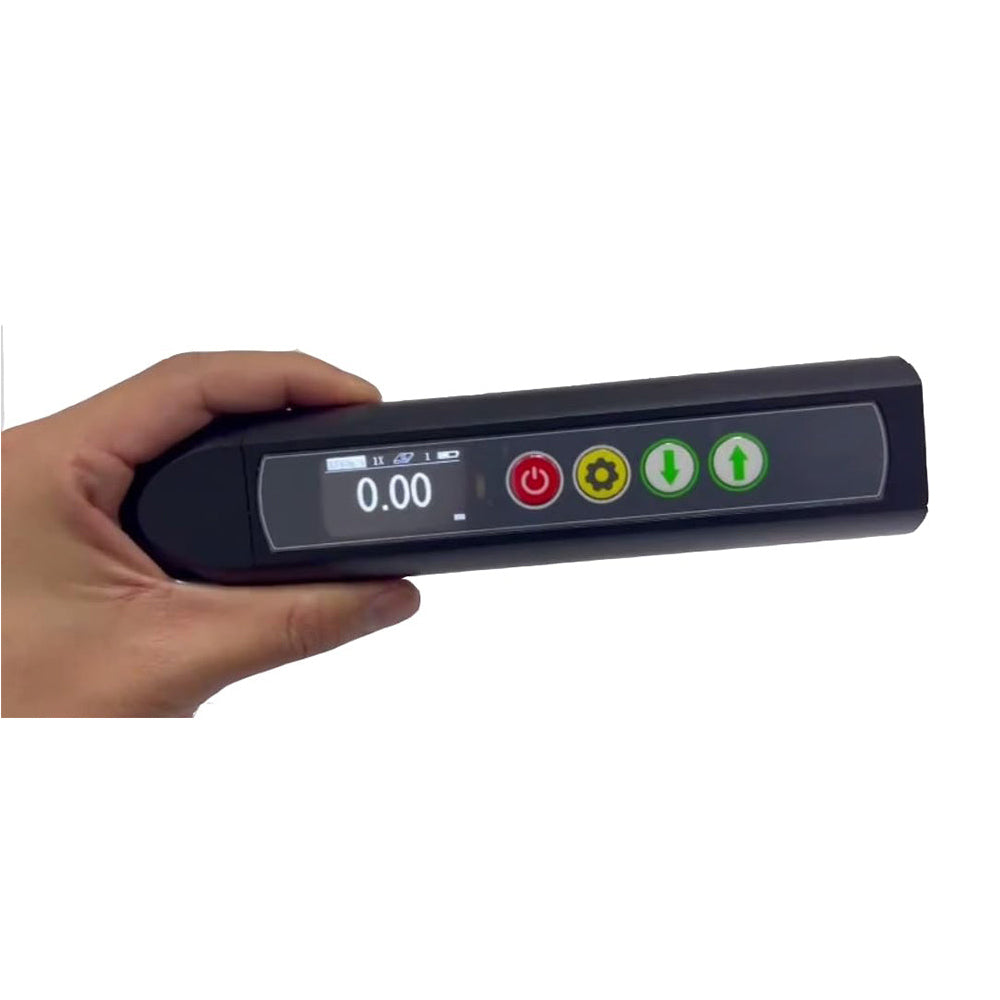

Small size and easy to carry.

The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.

It is insensitive to the coating and can realize the thickness measurement of coated workpiece.

No acoustic coupling agent is required, it is suitable for thickness measurement of high-temperature workpiece.

Introduction:

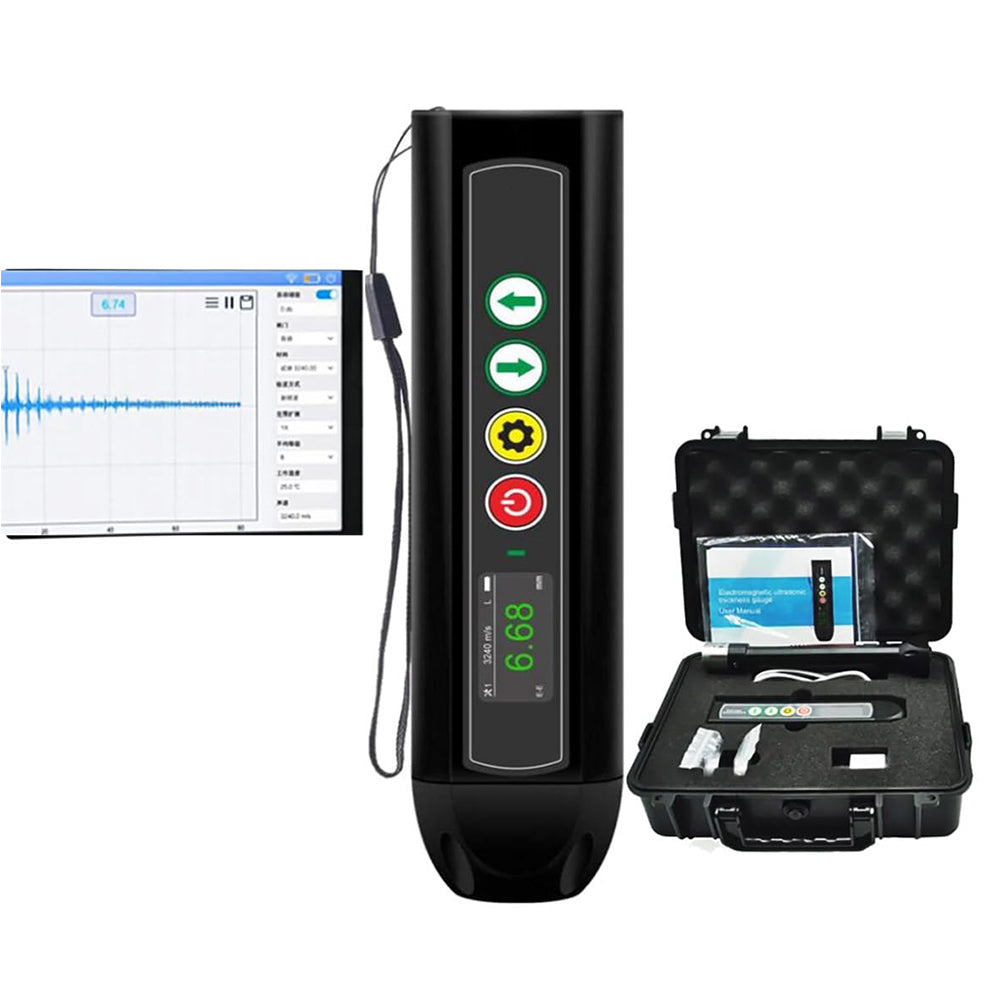

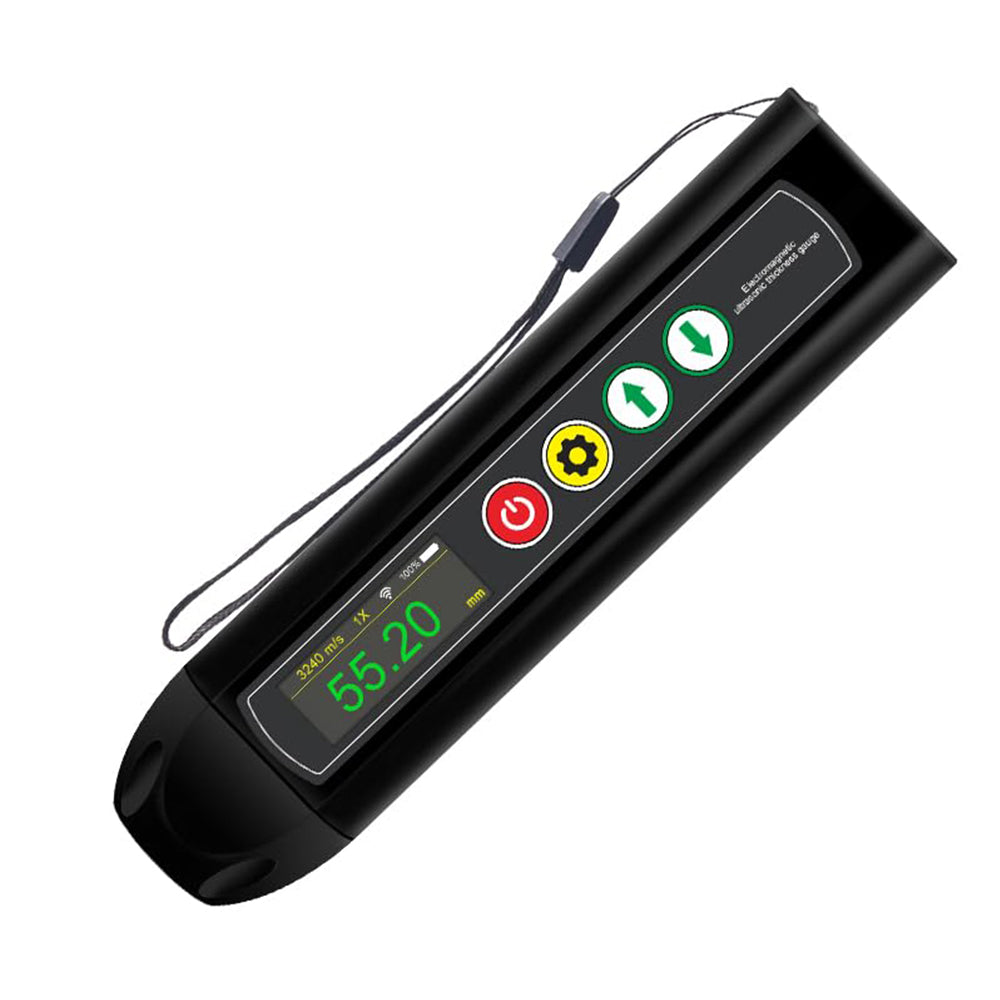

Electromagnetic ultrasonic thickness gauge is a ultra small,non-contact thickness measurement device that does not require acoustic coupling agents. It can measure the thickness of metal or magnetic materials.

Product Features:

Small size and easy to carry.

The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.

It is insensitive to the coating and can realize the thickness measurement of coated workpiece.

No acoustic coupling agent is required, it is suitable for thickness measurement of high-temperature workpiece.

Basic Parameters:

Sampling rate: 80MSPS

Bandwidth: 2.5MHz～6MHz

Launch: ± 600V_400Hz_125ns

Gain: Automatic 0～96dB, pace 1dB

Measurement accuracy:±0.01mm

Sound velocity Range:400～9999 m/s

Effective range:1.0～320mm

Average level:L, M, H three-level adjustable

Lifting distance:4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel)

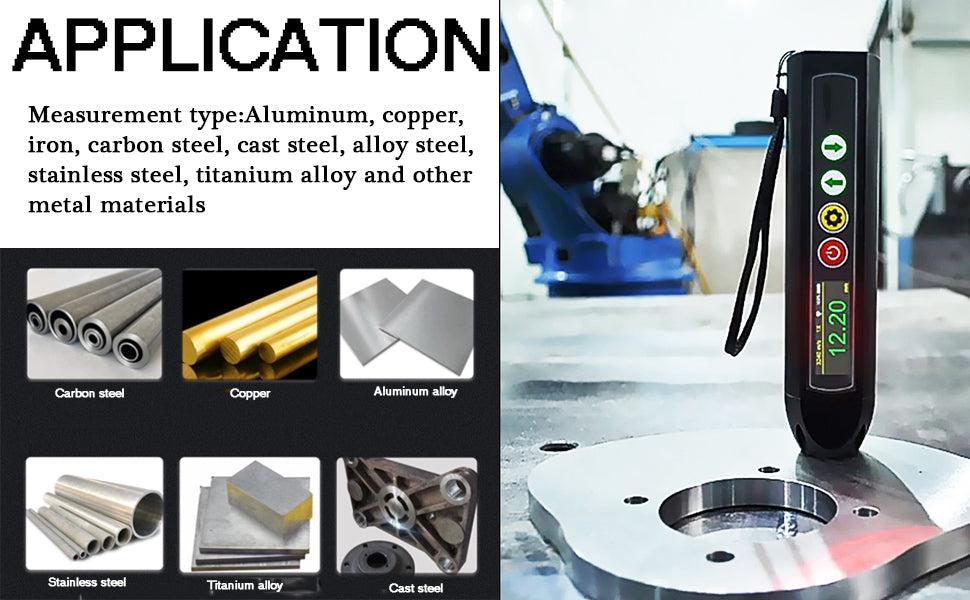

Measurement type:Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials

Measurement mode:Single echo(I-E), Dual echo(E-E)

Auxiliary functions:Auto freeze, Auto gain, Auto sleep, Metric and British switching, Sound velocity saving, Backlight adjustment

Revised function:sound velocity calibration, high temperature compensation

Communication Interface:RS-485 or USB2.0(Just for charging)

Charger:5V2A, Standard Type-C interface

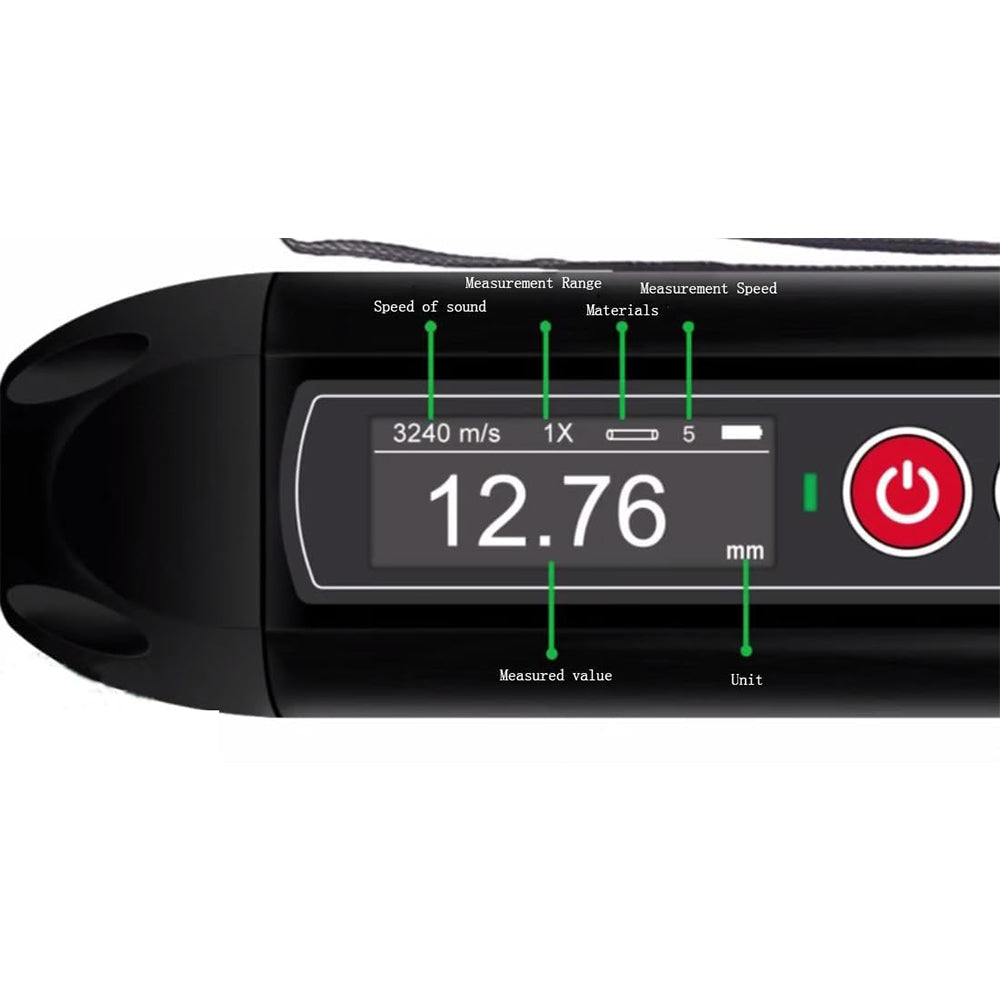

Display screen: 1.47 inch 320×172 IPS_LCD

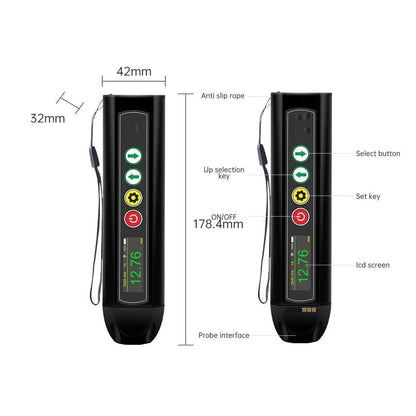

Dimension: 178.4mm×42mm×32mm

Battery life: 3.7V 3400mAh Lithium battery, 6 hours of battery life

Bare weight: A Metal shell: 358g ; B Injection molded shell: 255g;C Injection molded + quick release: 289g

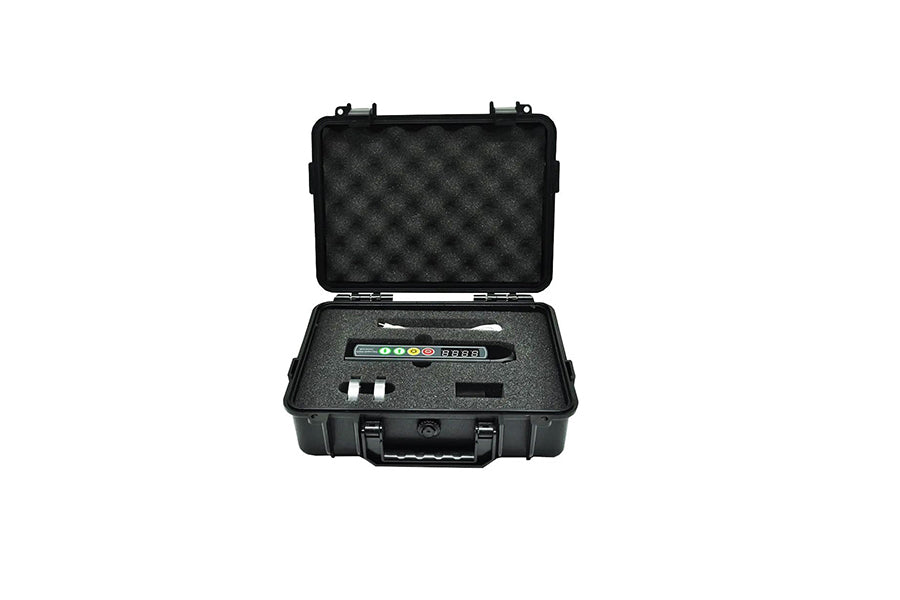

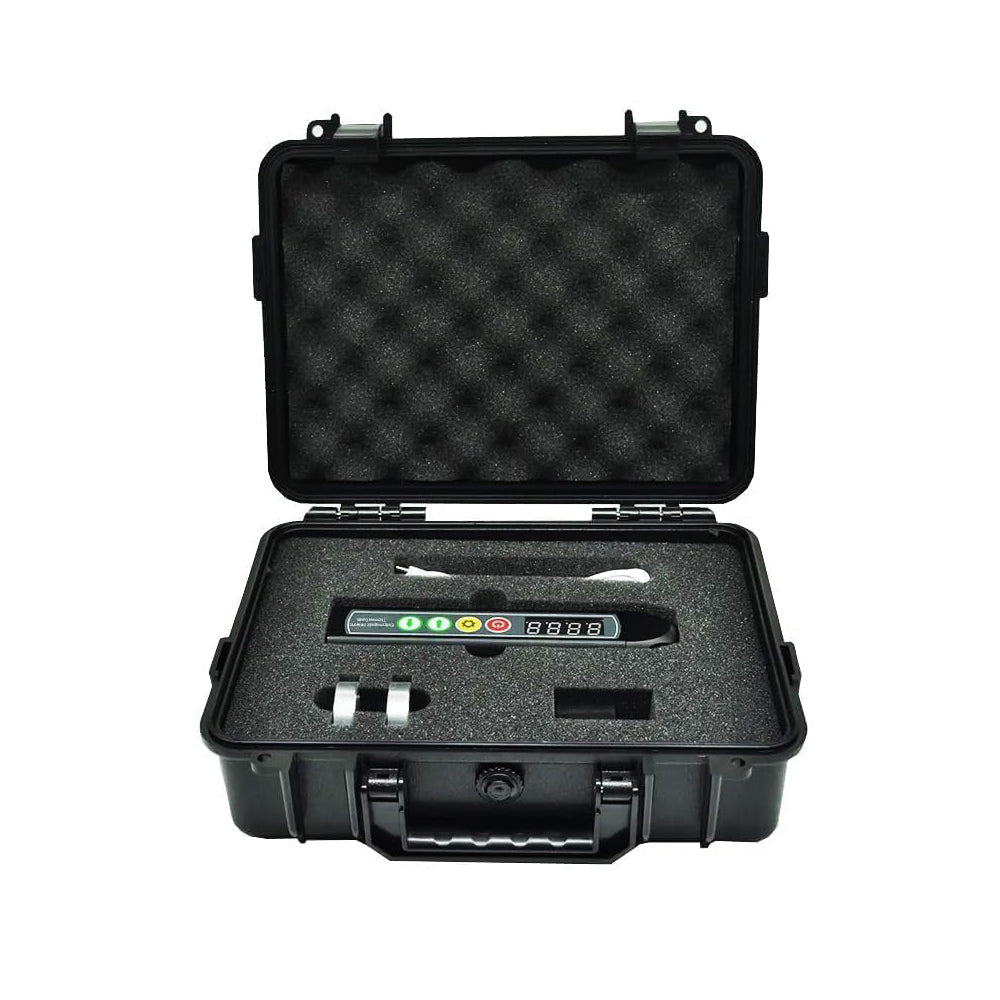

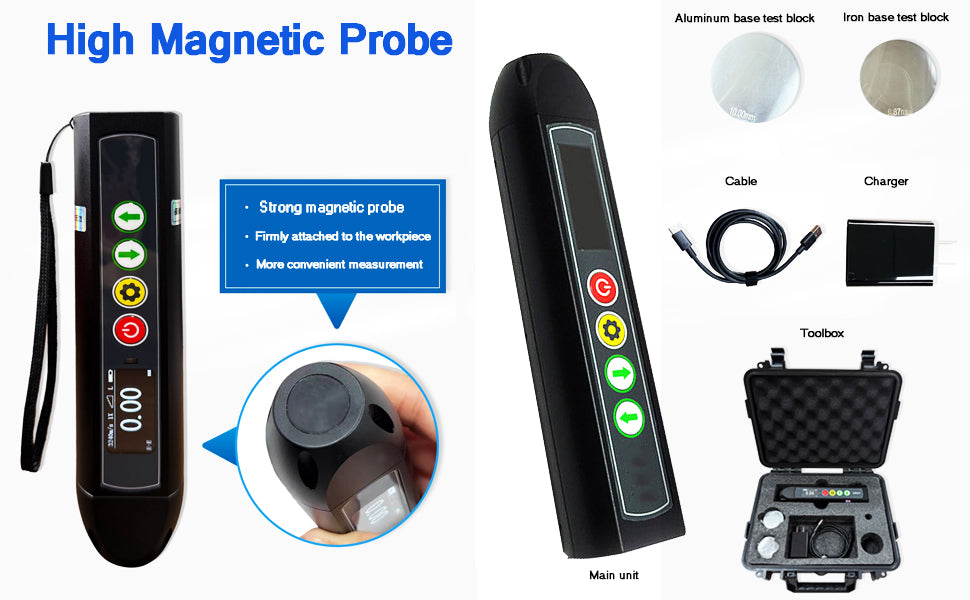

Standard Configurations:Host,Normal temperature probe(4MHz，Φ42mm*32mm),Charging data cable,Charging plug,Manual,Iron based test block,Aluminum based test block,Packing box

Optional Configuration:High temperature probe 4MHz，Φ33mm*40mm; Small diameter normal temperature probe 4MHz，Φ13mm*36mm; Large diameter normal temperature probe 4MHz，Φ40mm*60mm（ it is not included in the standard configuration）
