QIUSUO Digital Two Apertures Haze Meter Haze and Transmittance Measurement with Aperture 21mm 15mm Geometry 0/d 2.8 Inch Touch ScreenUSB Interface High Precision High Stability Sample Size Thickness≤40mm for Film Glasses Haze Transparency Test

About this item:

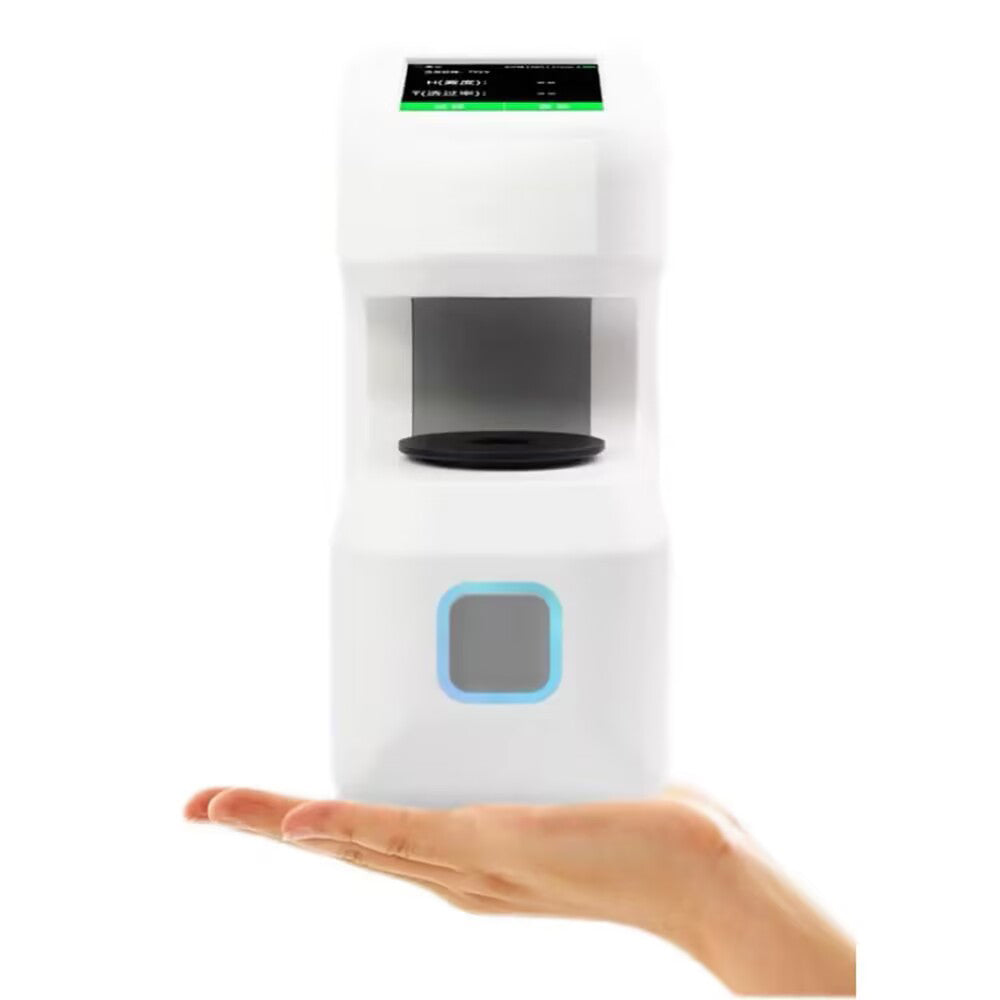

Light Transmission Tester Haze meter The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.

Instrument will do self-check regularly when it is in standby mode.

Dual Optical Paths Design

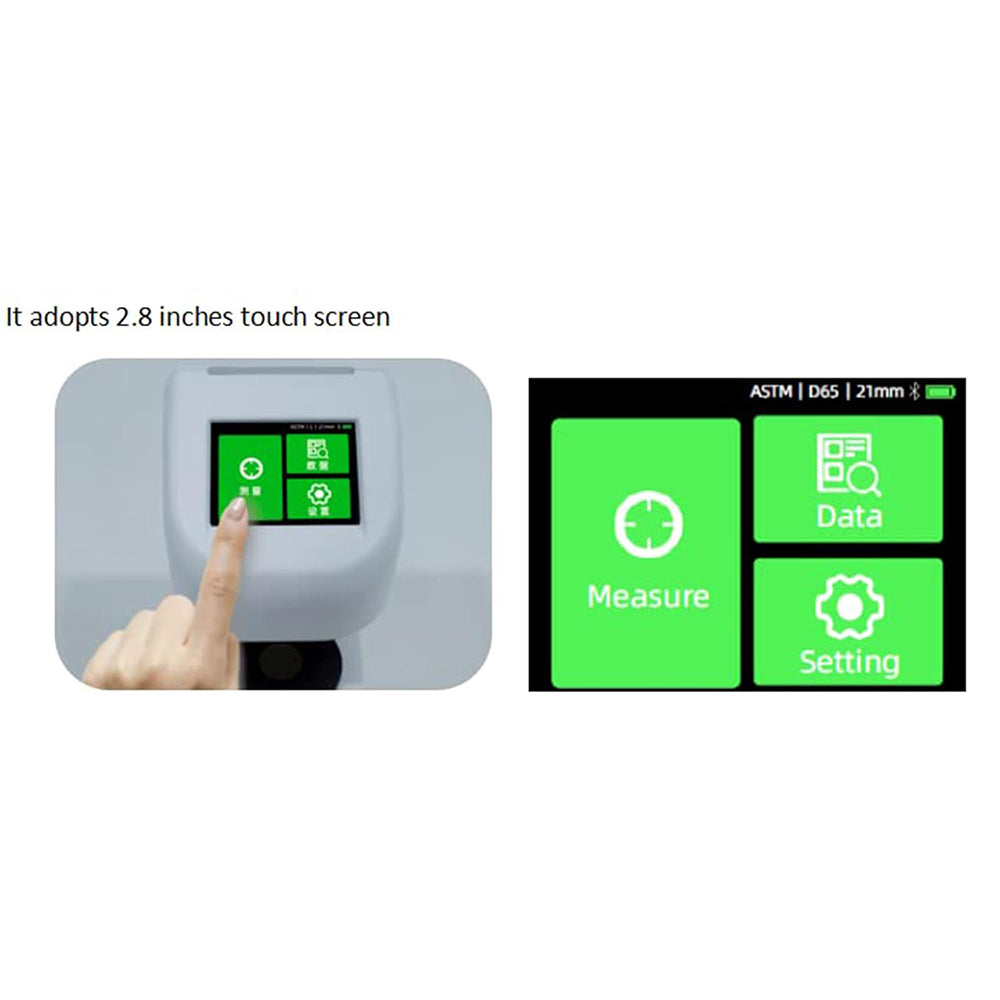

It adopts 2.8 inches touch screen

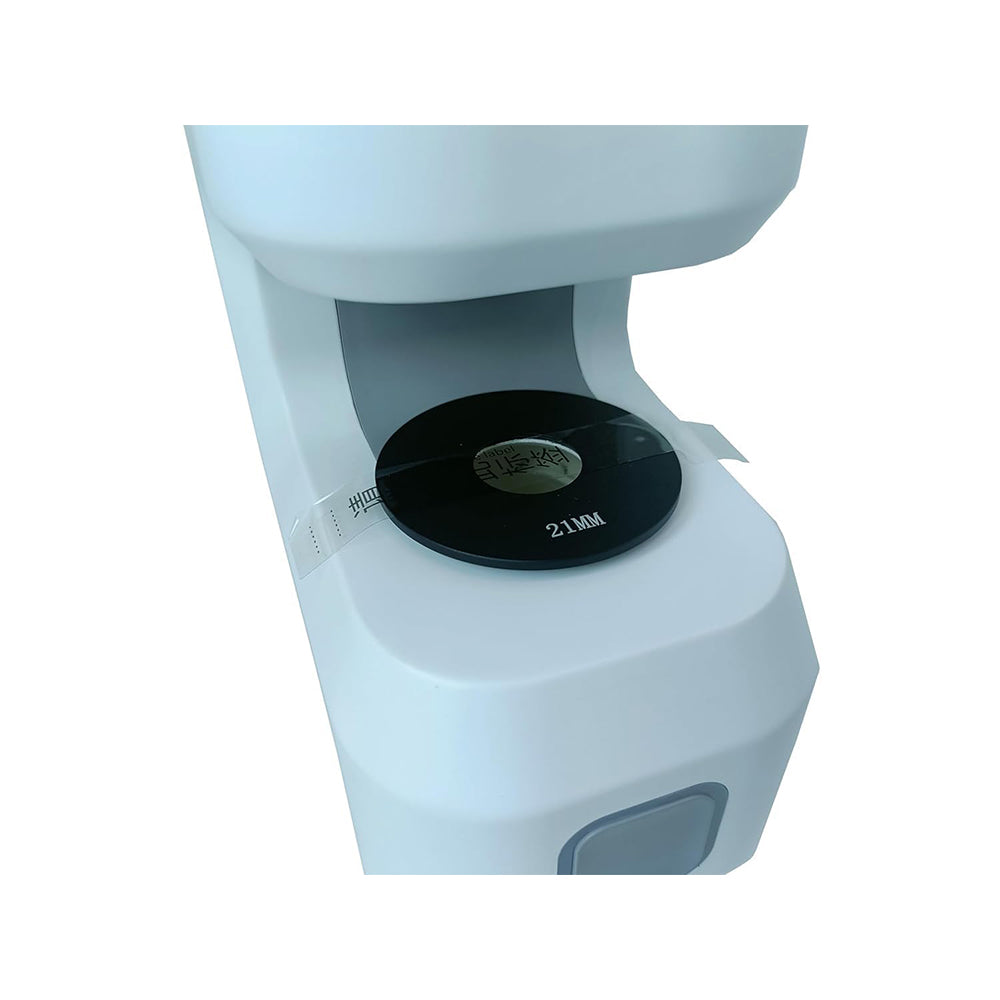

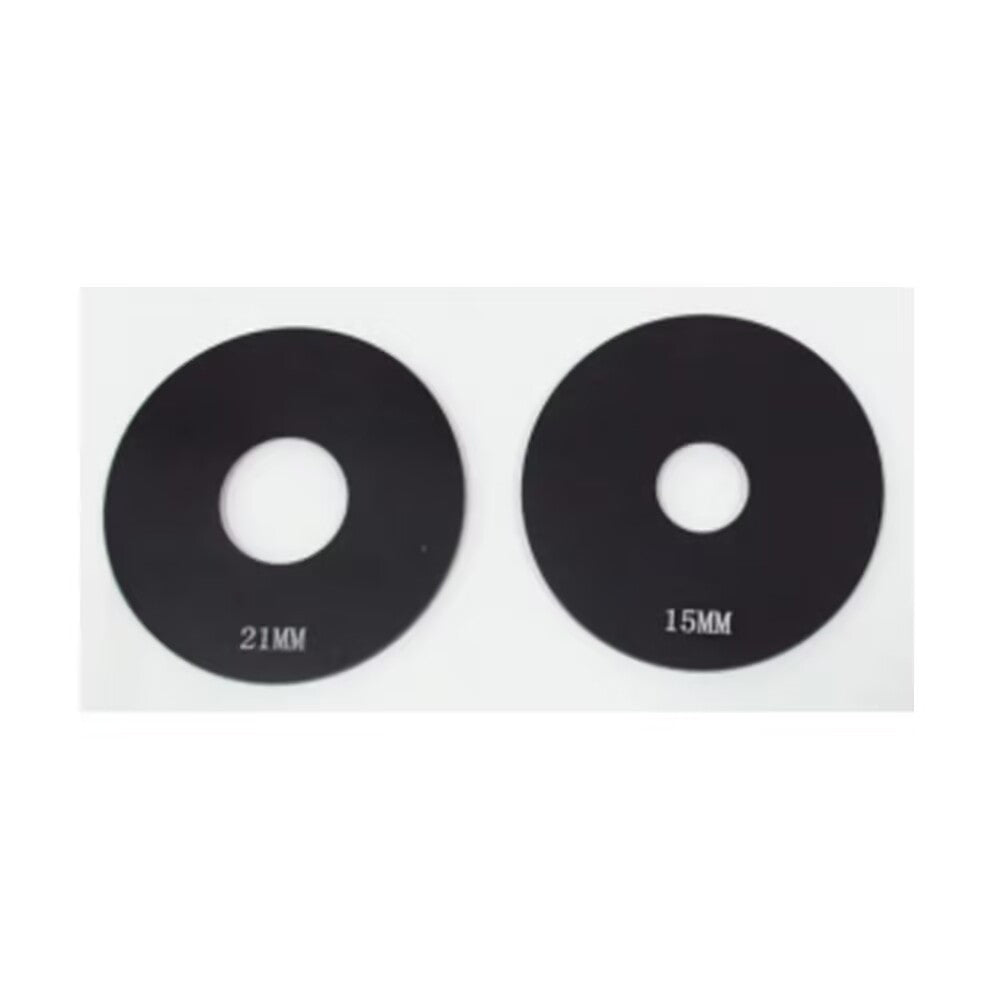

Supports 2 kinds of test apertures 21mm, 15mm

Introduction:

The handheld haze meter is compact in size and weighs only 1.25kg, making it easy to carry and measure haze and transmittance anytime and anywhere; Contains 2 calibers, covering multiple sizes for sample measurement; The repeatability reaches 0.05; 2.8-inch touch screen, connected to mini programs, massive storage; Supports lithium battery power supply.

Feature:

Measurement aperture: 21mm, 15mm

Resolution: 0.01%

Repeatability: 0.05

Weight: 1.25kg

Light source: CIE-A, CIE-C, CIE-D65

Following standard: ASTM D1003/D1044, ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Measurement parameters: haze and transmittance under both ASTM and ISO standards

Spectral response: CIE spectral function Y/V (λ)

Optical path structure: 0/d

Measurement aperture: 21mm, 15mm

Range: 0-100%

Resolution: 0.01%

Repeatability: 0.05

Sample size: Thickness ≤ 40mm

Display: 2.8-inch touch screen

Storage data: massive storage

Interface: USB interface

Power supply: lithium battery power supply

Working temperature: 5-40 ℃, relative humidity of 80% or lower (at 35 ℃), no condensation of water vapor

Storage temperature: -20 ℃~45 ℃, relative humidity of 80% or lower (at 35 ℃), no condensation of water vapor

Volume: Length X Width X Height: 133mmX99mmX224mm

Weight: 1.25kg

Optional: Customized Caliber Plate
