Note：The tablet hardness tester can be switched between N and KG via the circuit board; the default setting is N.

Technical Specifications：

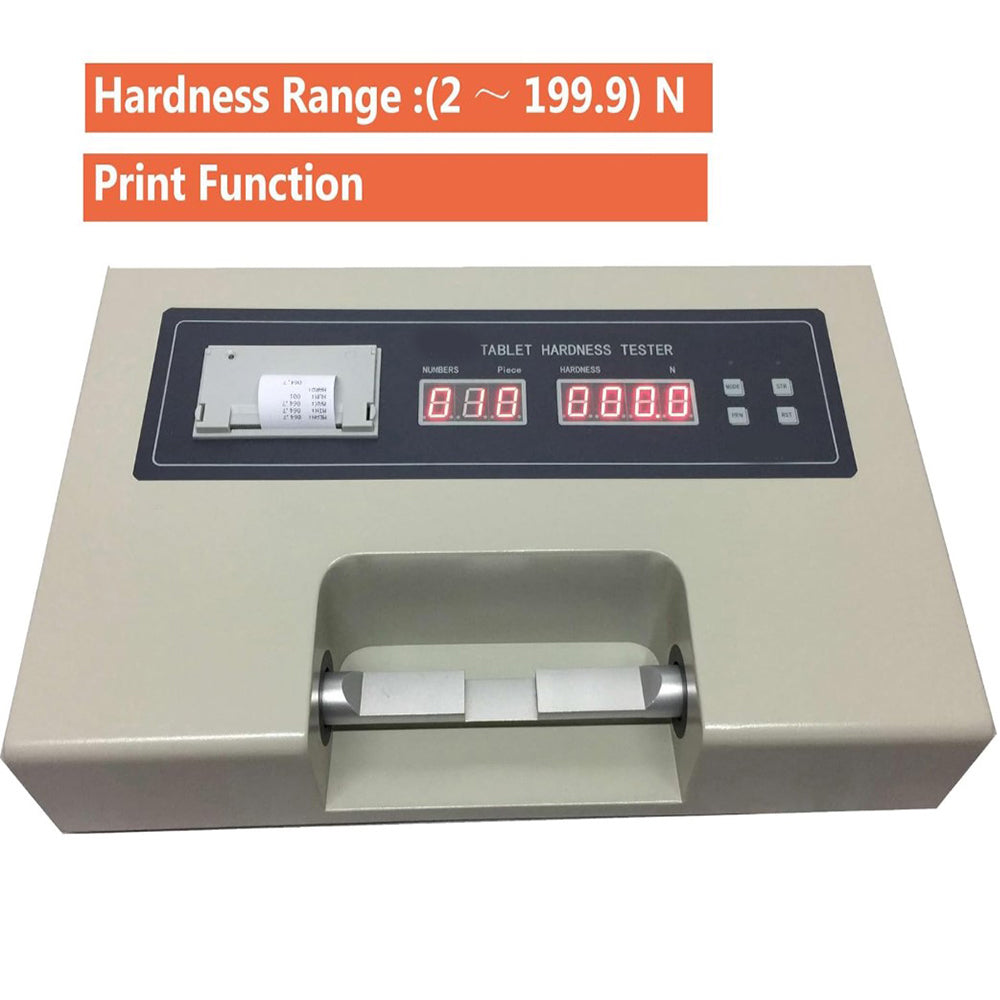

Hardness range：(2~200)N

Hardness accuracy: Max. (±0.05%)

Probe procession range：(3~40)mm

Number of test pieces in each group: ≤100

Each test time: > 20Second

Continuous working time: More than 24 hours

Test period：20S/P

Max number in each group：100P

Power：220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W

Dimension：(500*300*160)mm3

Features:

The tablet is loaded artificially and pressed automatically.

Automatic statistical printing.

There is high accuracy press sensor and hardness data is displayed on LED.

It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.

Time of testing will be saved by directly measuring the diameter.

Test data is displayed and locked automatically, so can test be reset and cycled.

It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.

The parameters can be preset at any time. Either preset or real data is displayed on the LED.

Automation: auto-test, auto-diagnose, auto-alarm.
