About this item:

Function：

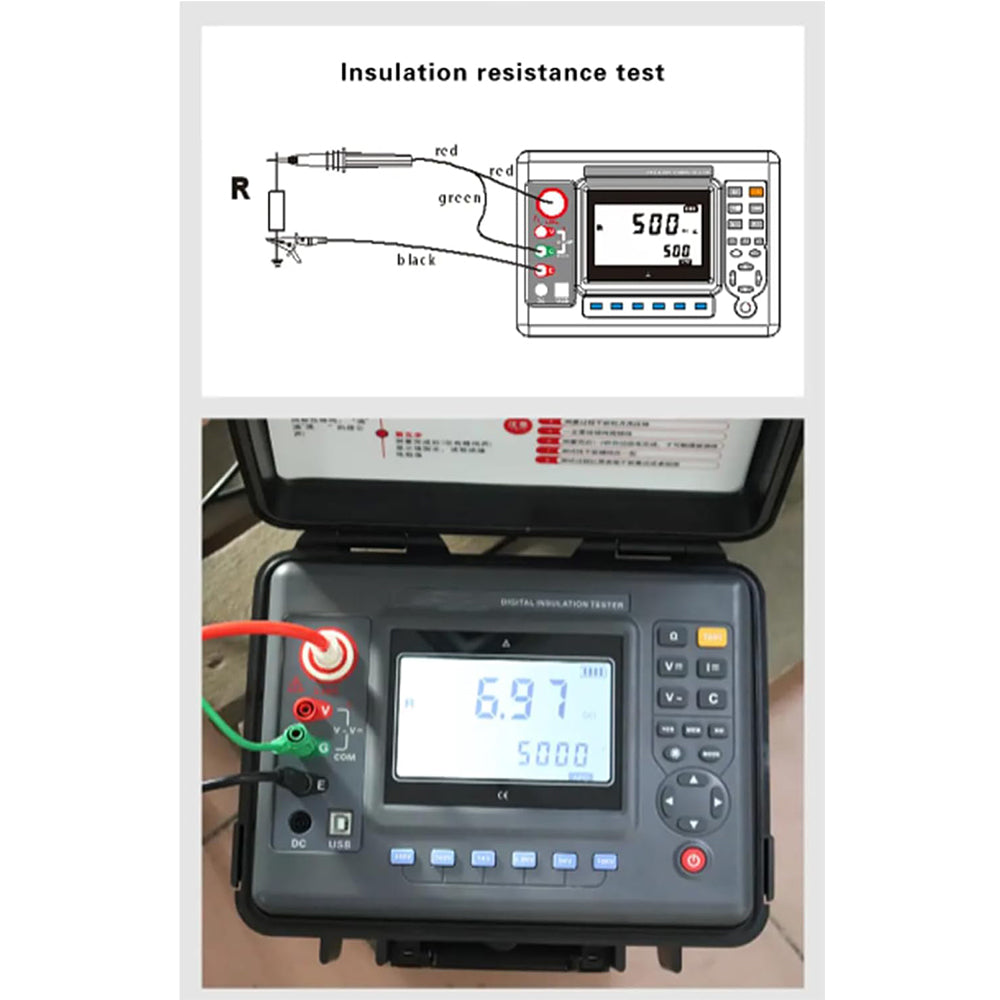

Insulation resistance tester, voltage test, DC current test

capacitance test Basic condition:23℃±5℃，below 75%rh

Rated voltage:100V、250V、500V、1000V、2500V、5000V

Insulation resistance range:0.01MΩ～10TΩ

resolution：0.01MΩ

Test Voltage(V):rated voltage×（1±10%）

DC Voltage Range:0～1000V Resolution: 0.1V

AC Voltage Range:0～750V Resolution: 0.1V

DC Current:0.1nA～6mA Resolution: 0.1nA

Capacitance:10nF～50uF Resolution: 10nF

Output short-circuit Current:≥6mA@15KV

Absorption Ratio and Polarization Index Measurement:Have

Power Supply:12.6V rechargeable battery

Backlight:Controllable gray screen backlight, suitable for use in dim places

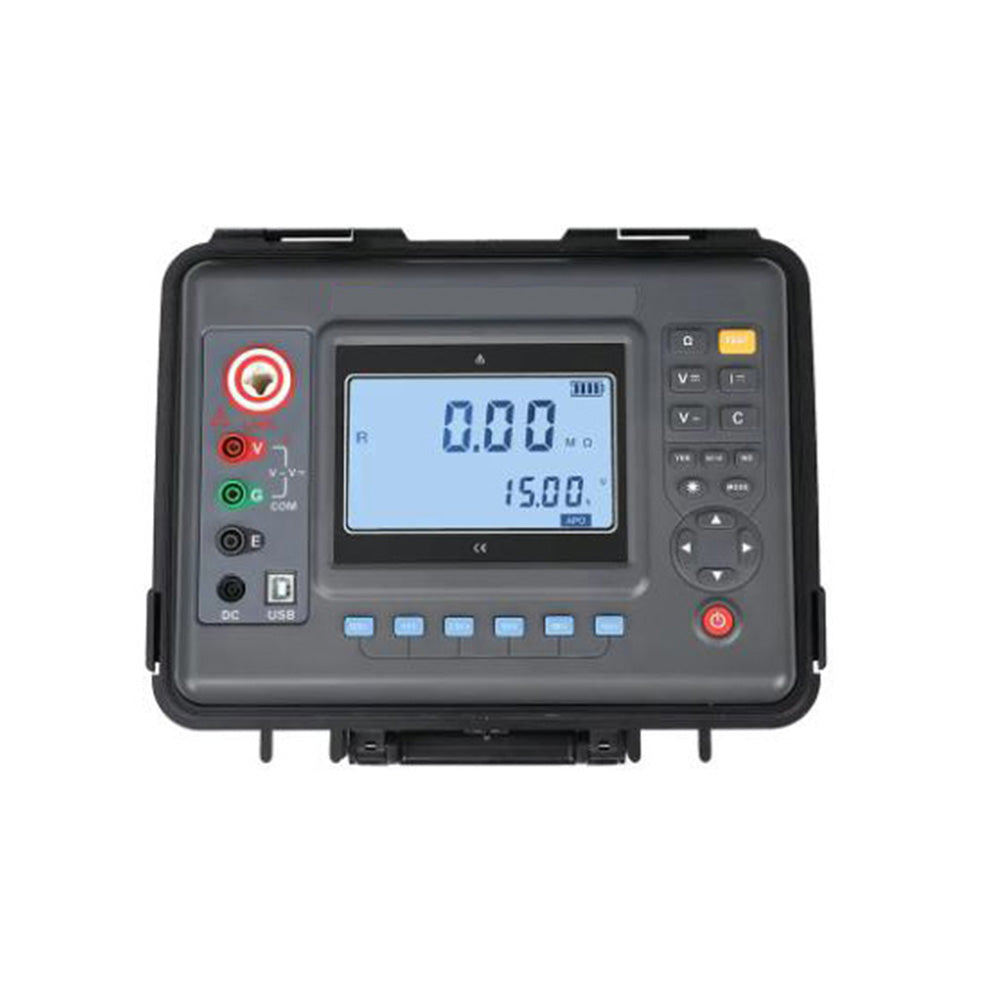

Dispaly---Dispaly mode:4-bit large LCD display, gray screen backlight

LCD display size:108mm×65mm

Instrument size:L/W/H：240mm×188mm×85mm

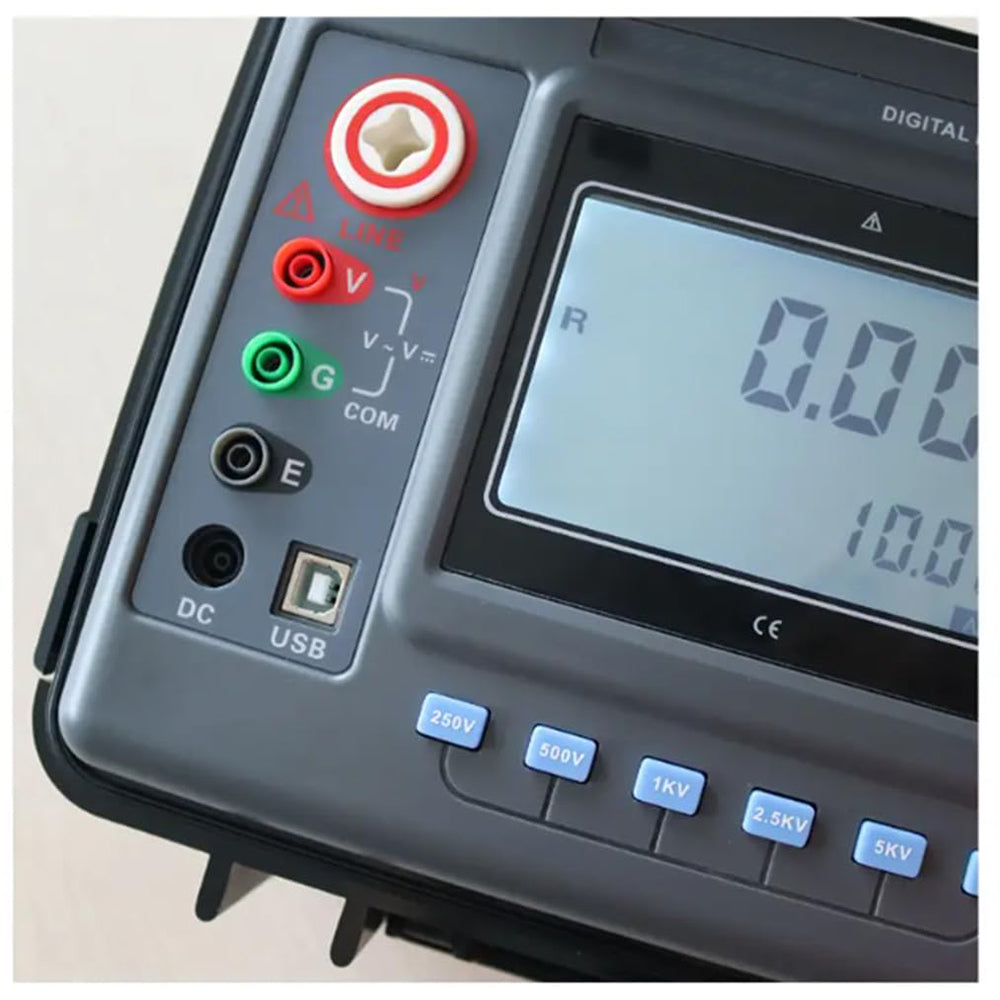

USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

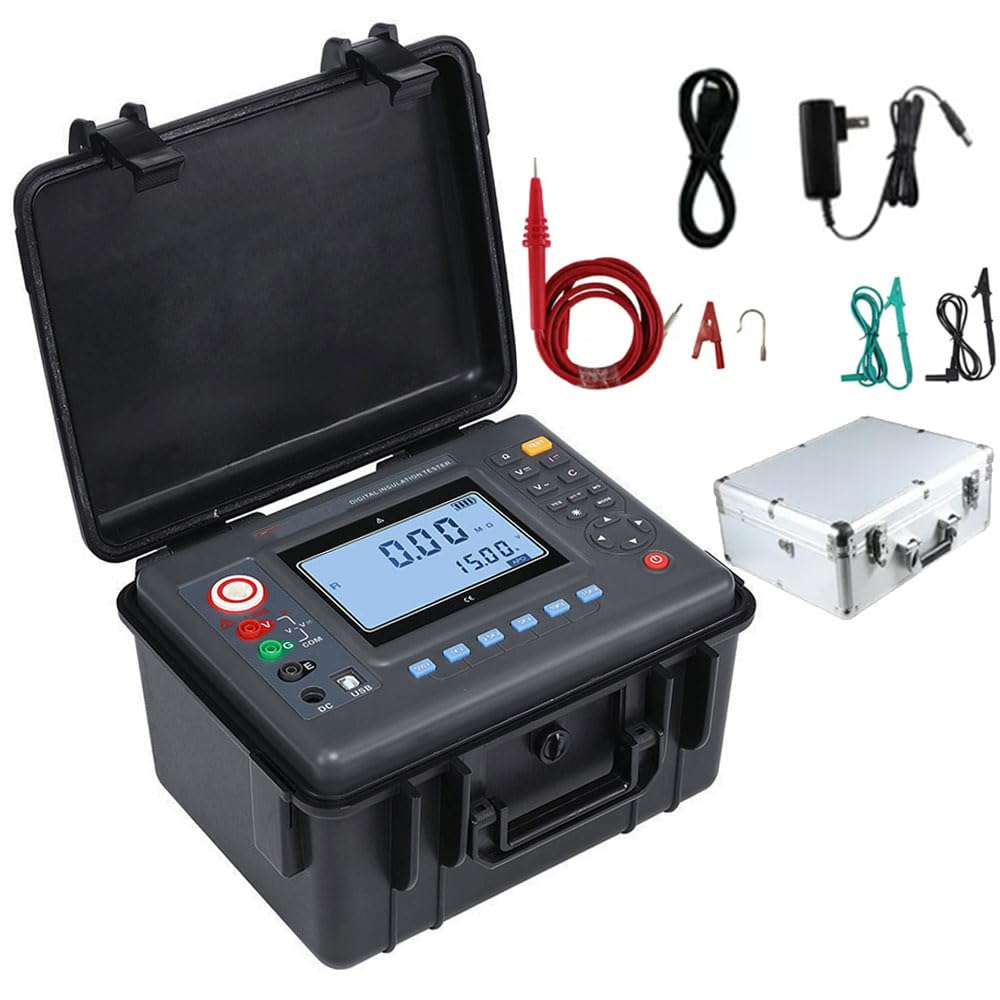

Communication Line:USB communication line 1PC

Test Line:High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter

Data Storage:500 groups, "FULL" symbol indicates that storage is full

Data Review:Data review function: "MR" symbol display

Overflow Display---Exceed measurement range overflow function: “> ” symbol display

Alarm Function:Alarm when the measured value larger or smaller than the alarm setting value

Power Consumption:

Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max

Measure:200mA Max(backlight off)

Weight---Instrument weight:2750g(including battery)

Battery voltage:When the battery voltage is low, low battery symbol “ ”will display

Automatic shut-down:automatic shutdown after 15 minutes boot Insulation

Resistance:≥50MΩ(between Measuring line and housing)

Pressure Resistance:AC3kV/50Hz 1min

Working Temperature and Humidity：- 10℃ ～+50°C<85%RH

Storage Temperature and Humidity：- 15°℃C～+55°℃<90%RH

Suitable for Safety Regulations：IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(P54)、pollution grade 2、CAT I 300V
