About this item:

Measure aperture: 21mm

resolving power: 0.1%

Repeatability:0.1

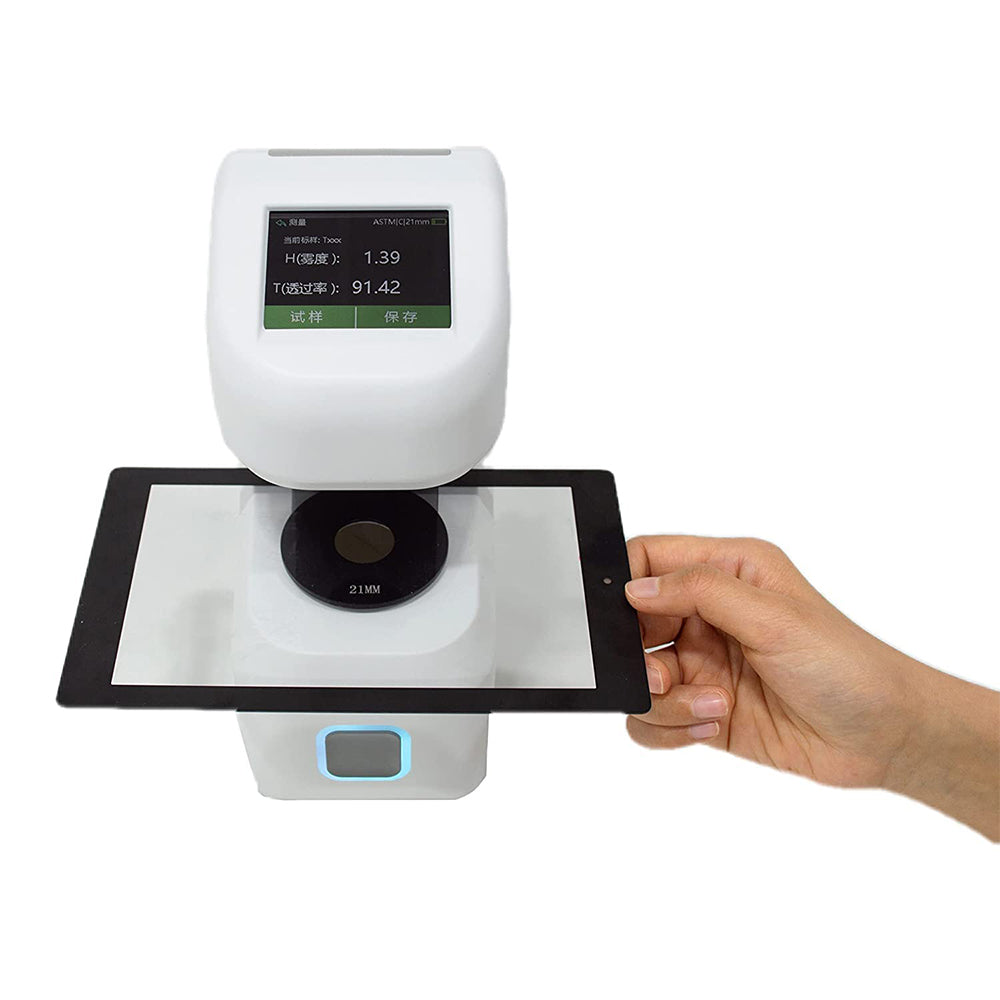

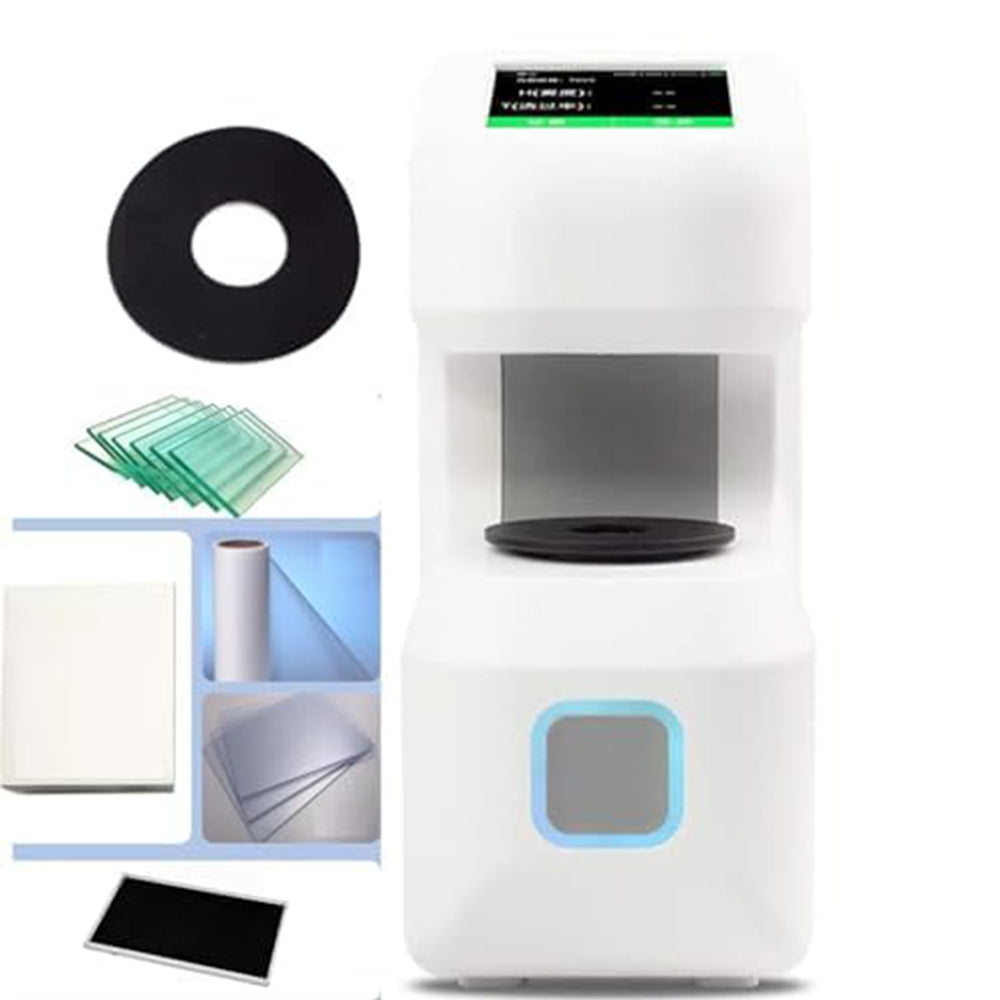

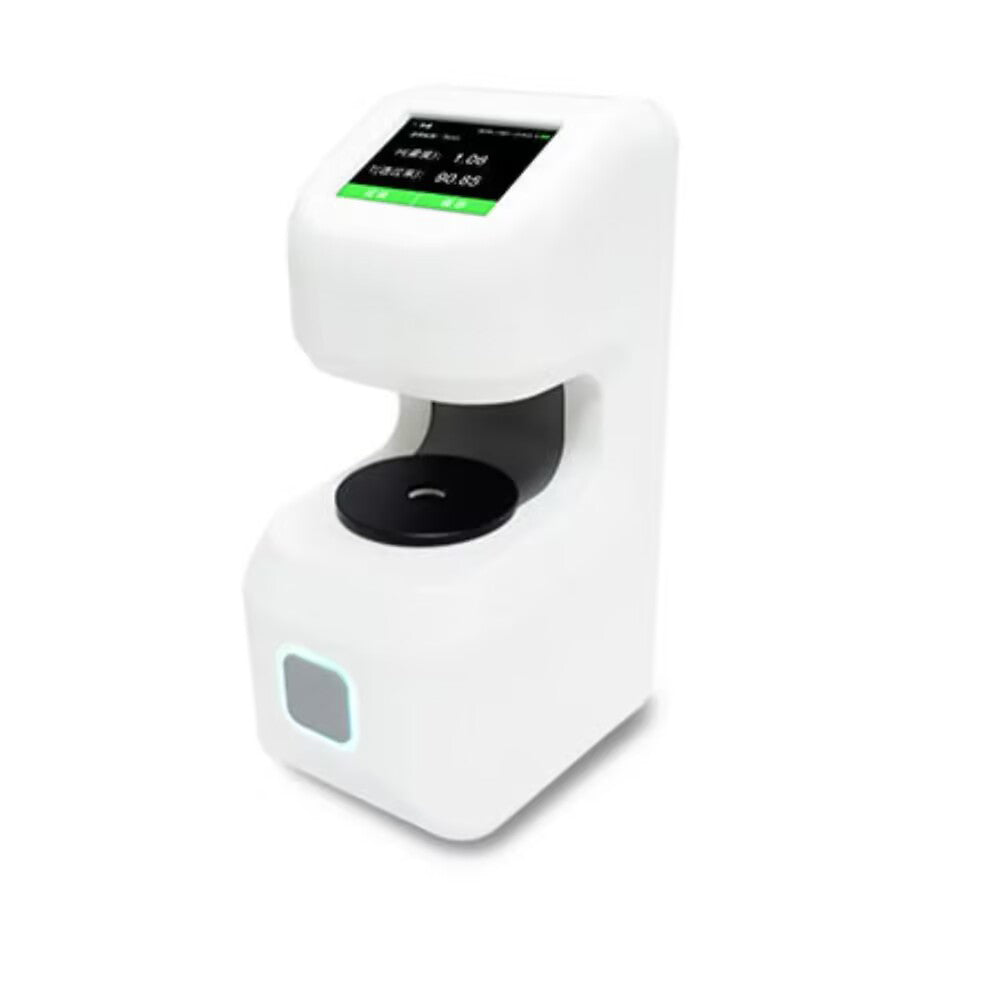

The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.

Instrument will do self-check regularly when it is in standby mode.

Dual Optical Paths Design

It contains three kinds of light source to measure the haze and transmittance of different standards.

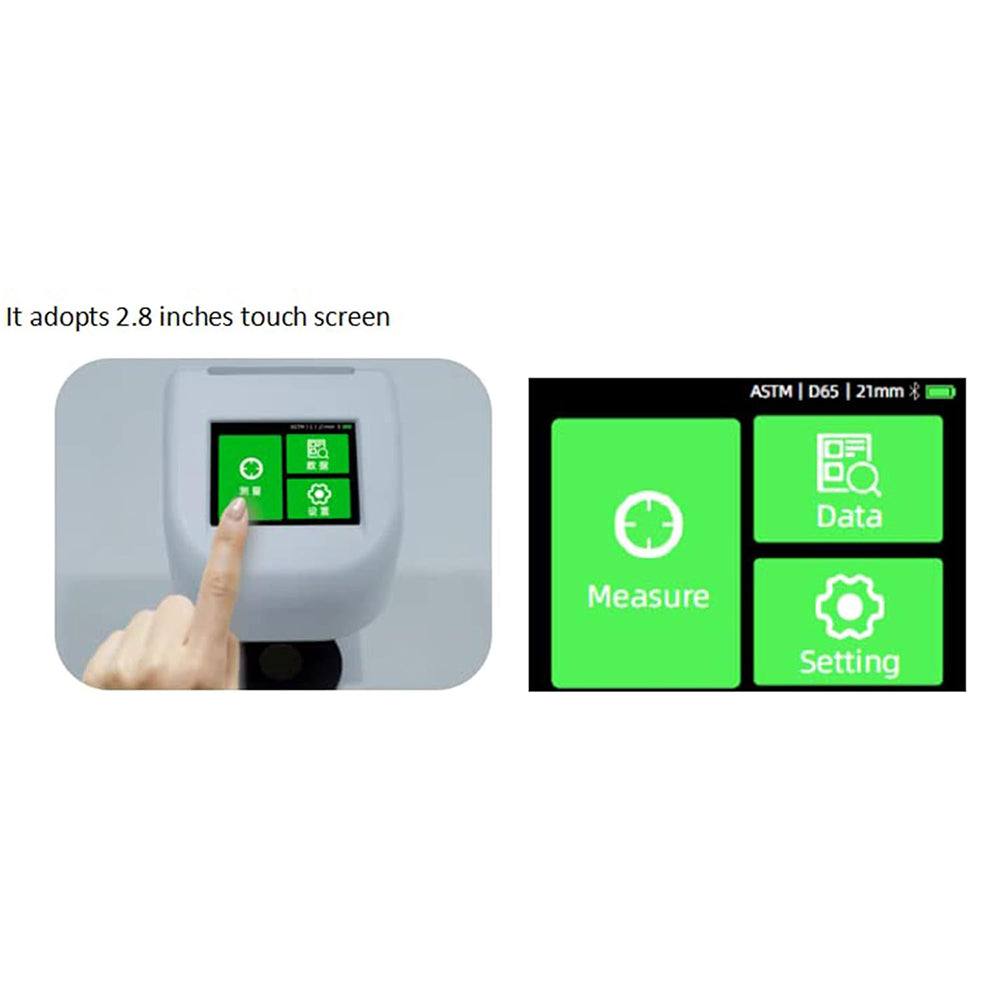

It adopts 2.8 inches touch screen

Introduction:

The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.

High Accuracy: Display resolution 0.01; Good repeatability ≤0.02

The haze meter conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361 and JIS K 7136.It contains three kinds of light source to measure the haze and transmittance of different standards.It adopts 2.8 inches touch screen

Feature:

Light Source:CIE-A,CIE-C,CIE-D65

Standards:ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Parameter:ASTM-haze/transmittance

Spectral Response:CIE The spectrum function Y/V(λ)

Geometry:0/d

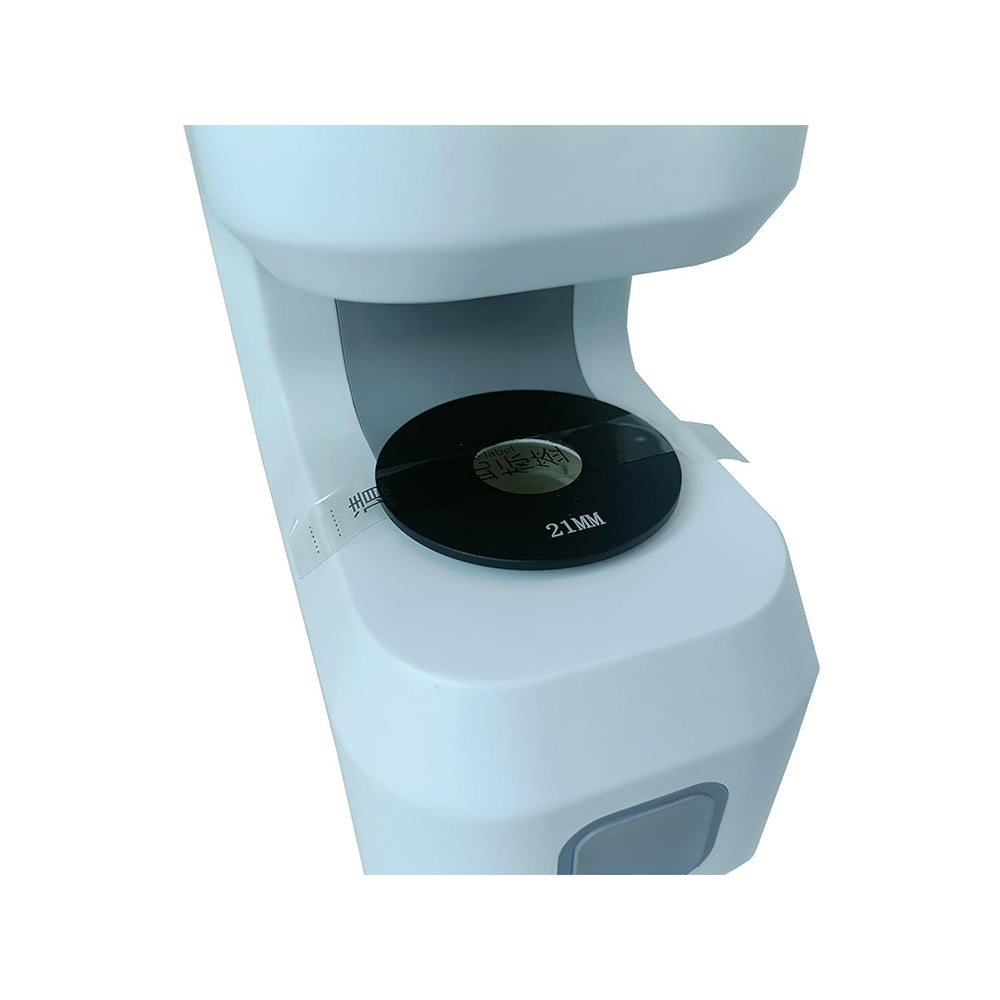

Test Aperture :21mm

Test Range:0-100%

Resolution:0.10%

Repeatability:0.1

Sample Size:Thickness ≤40mm

Display:2.8 inches touch screen

Data Storage:Mass Storage

Interface :USB

Power:DC 5V/2A

Working Temperature:5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation

Storage Temperature:-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation

Size :133mm x 99mm x 224mm (length X width X height)

Weight:1.13 kg

Optional :Test Aperture with custom made size
