QIUSUO C2H4O Gas Detector Ethylene Oxide Detector with Measuring Range 0-100ppm Resolution 1ppm L-Alarm 10ppm H-Alarm 20ppm Response time T＜30s LCD Display for Detection of Gas Concentration in Air

About this item:

Measuring Range:0-100ppm

Resolution 1ppm

L-alarm:10ppm ; H-alarm:20ppm

Output current:4-20mA

It is used to detect the concentration of flammable gas or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value, the controller will sound and light an alarm to promptly remind to take safety measures to prevent explosion and poisoning accidents, so as to protect life and property.

Overview:

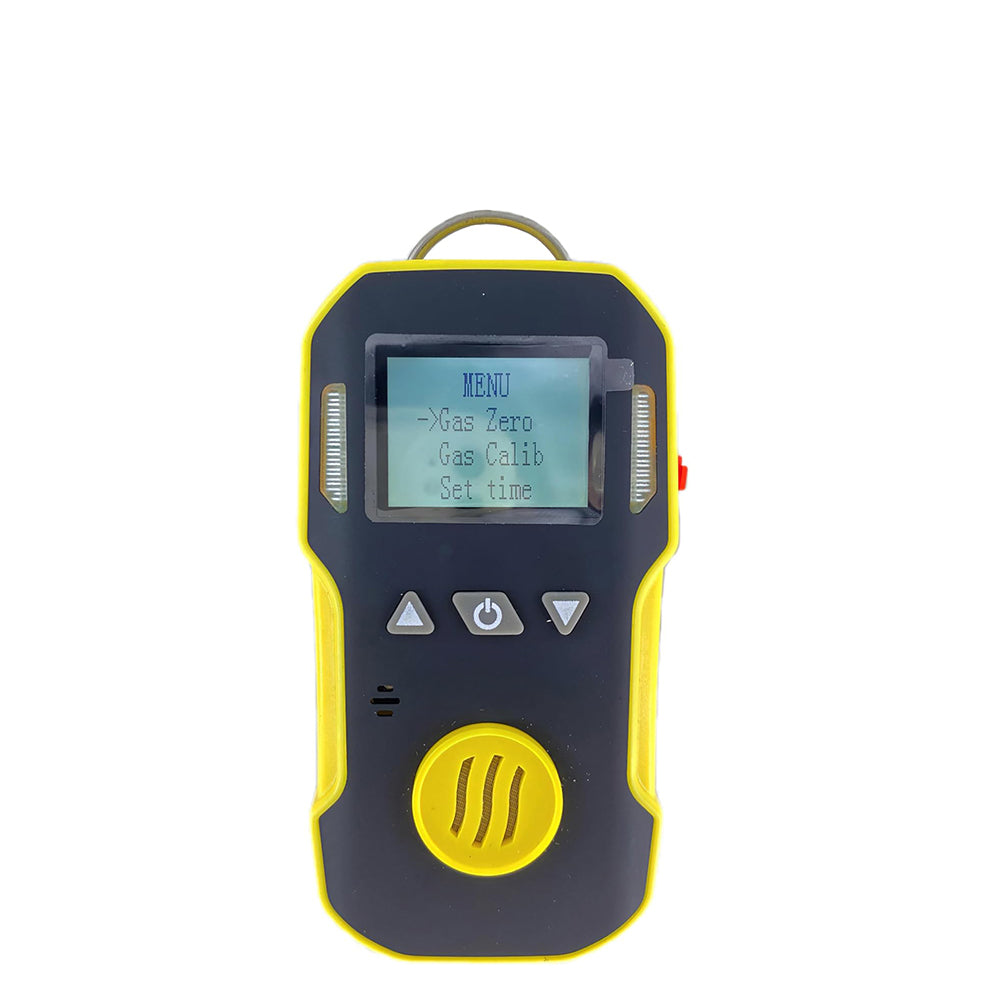

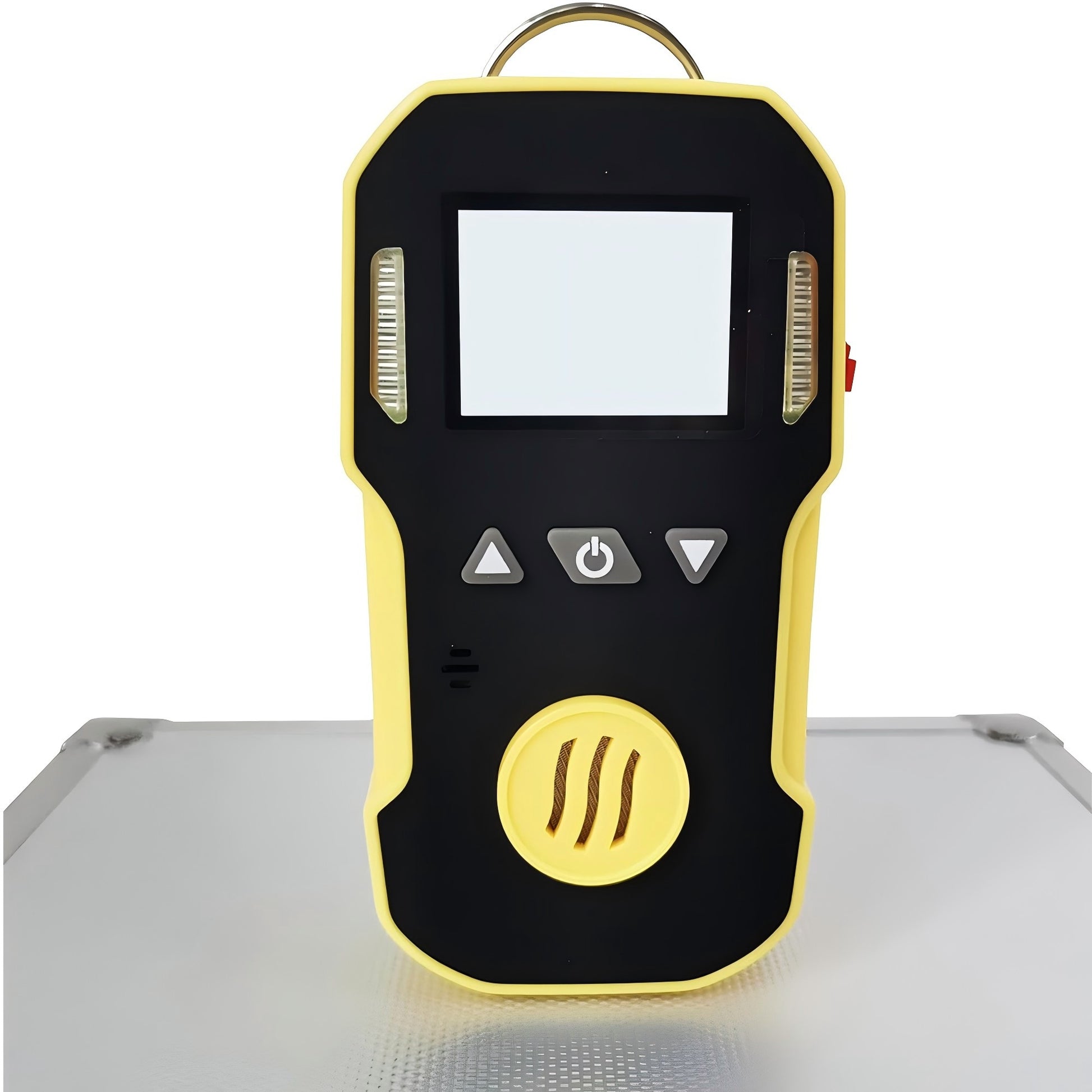

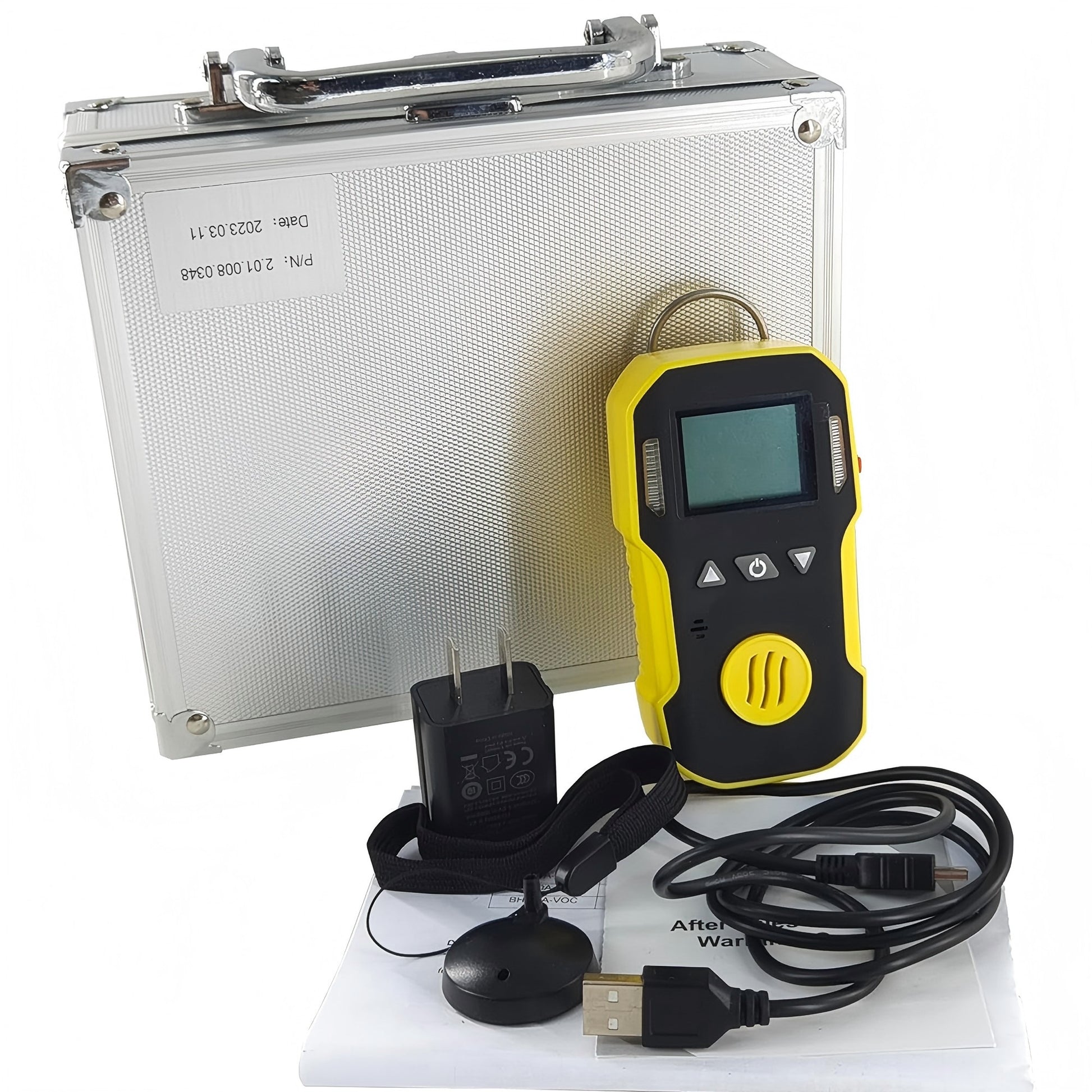

The portable single gas detector can make continuous detection to combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipe or mines, and keeps the workers safe, prevents the facilities from being destroyed.The detector, adopting excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts embedded MCU controller, easy to operate.

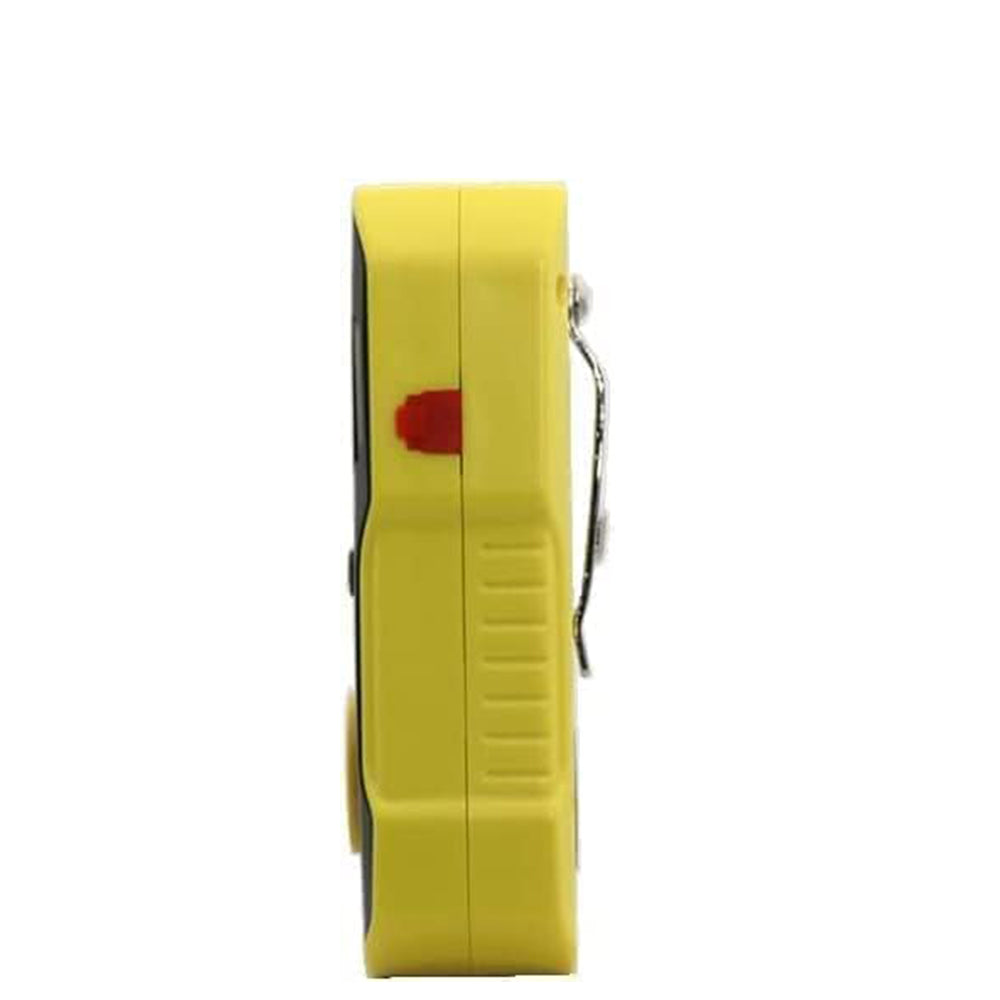

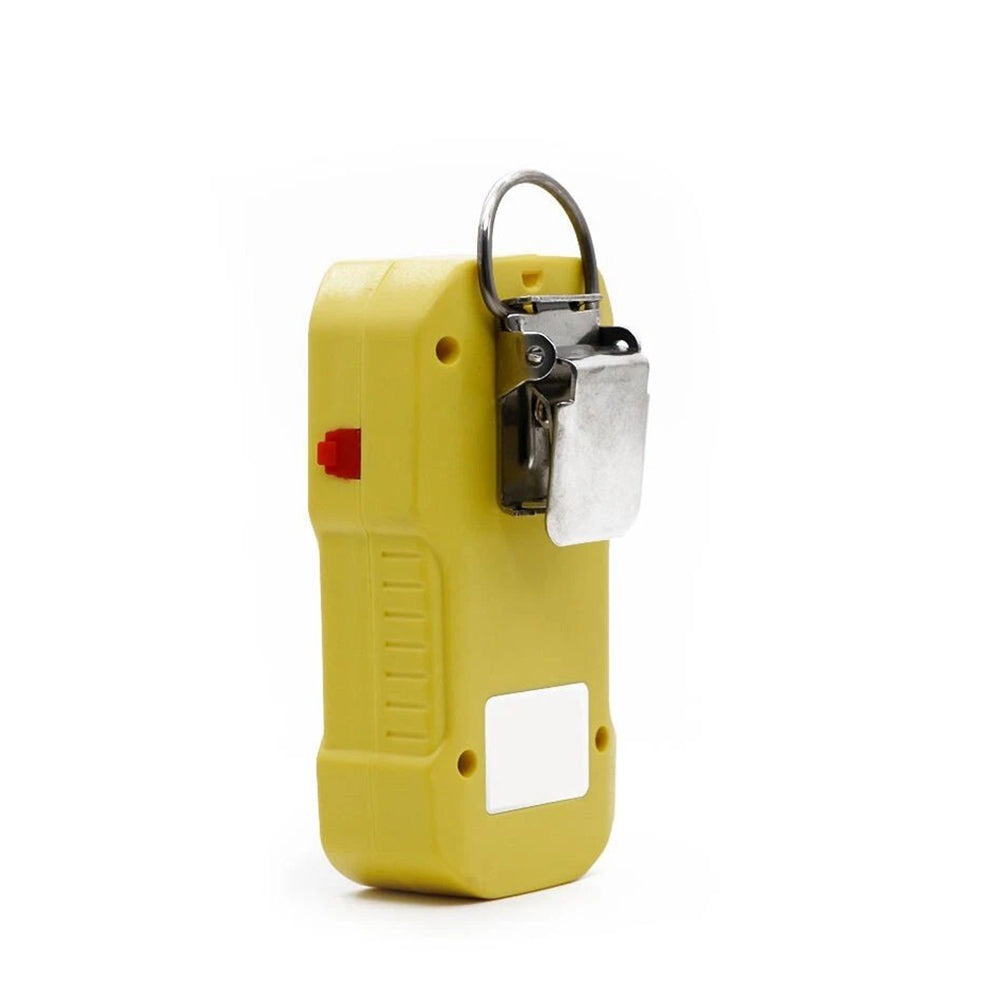

The shell adopts special high strength material and anti-smooth rubber, with the characters of water-proof and dust-proof.

Features:

Range:0-100ppm

Resolution:1ppm

L-alarm:10ppm; H-alarm:20ppm

Display Error:<±3%FS

Response time:T90<60s

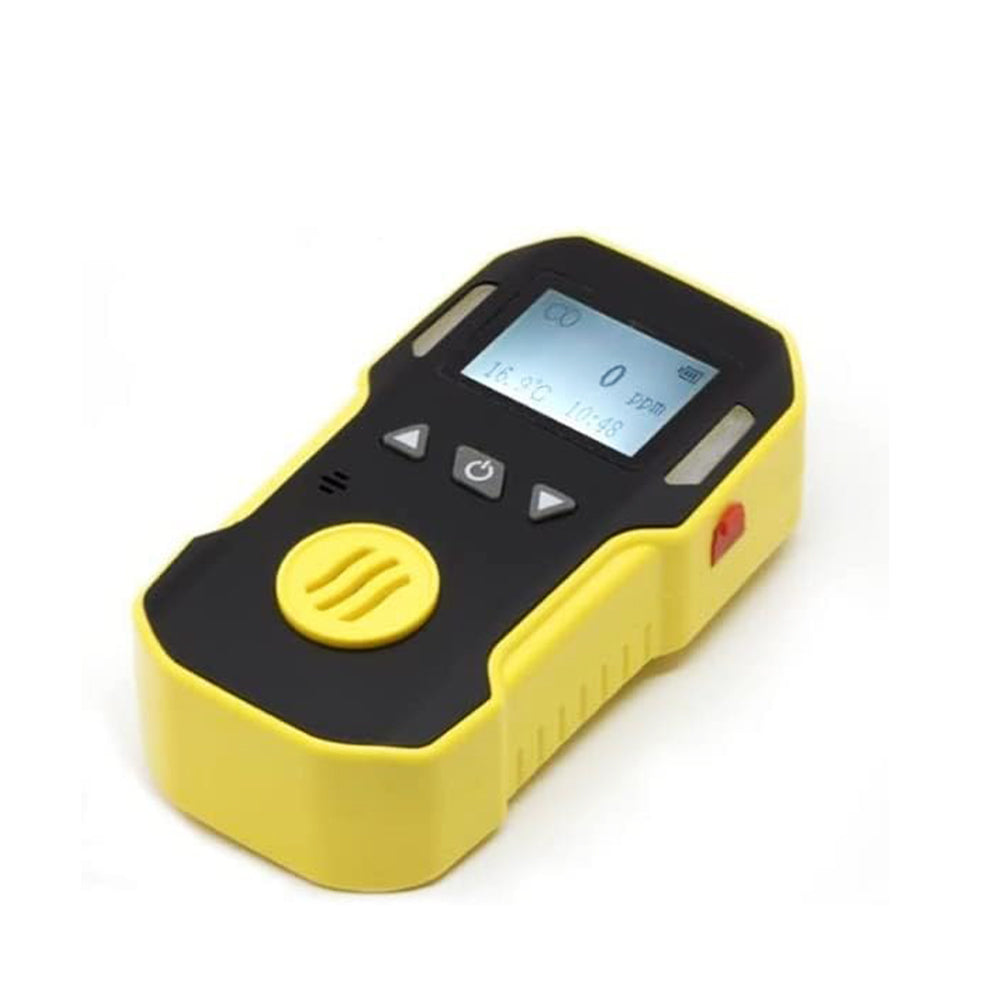

Indication:LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration

Operating Environment: Operating temperature -40℃～70℃ (for combustible gas);

Operating temperature: -20℃～50℃ (for toxic gas)

Humidity:＜95%RH non-condensing

Operating voltage:DC3.7V Li battery 1500mAh

Working time:≧8h continuously

Charging time:4h～6h

Protection category:IP65

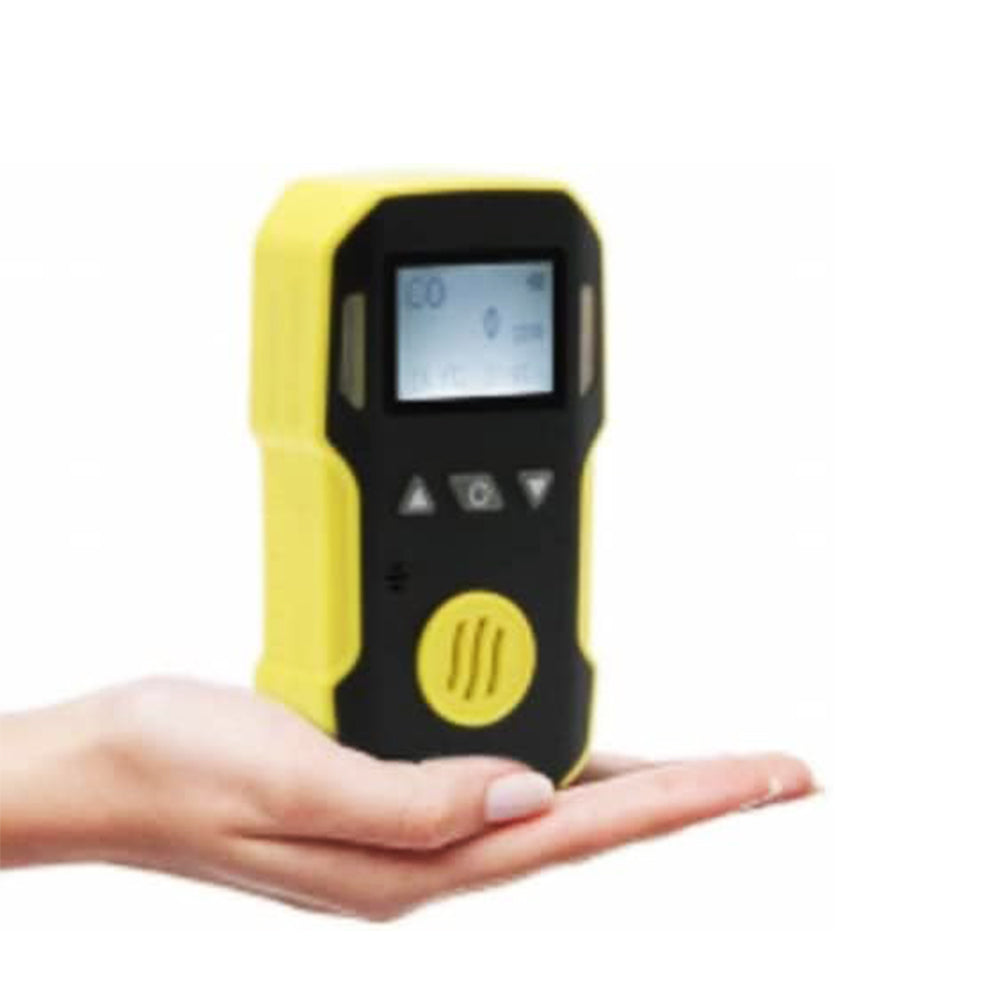

Weight:about 130g(not including batteries and accessories)

Shell material: ABS

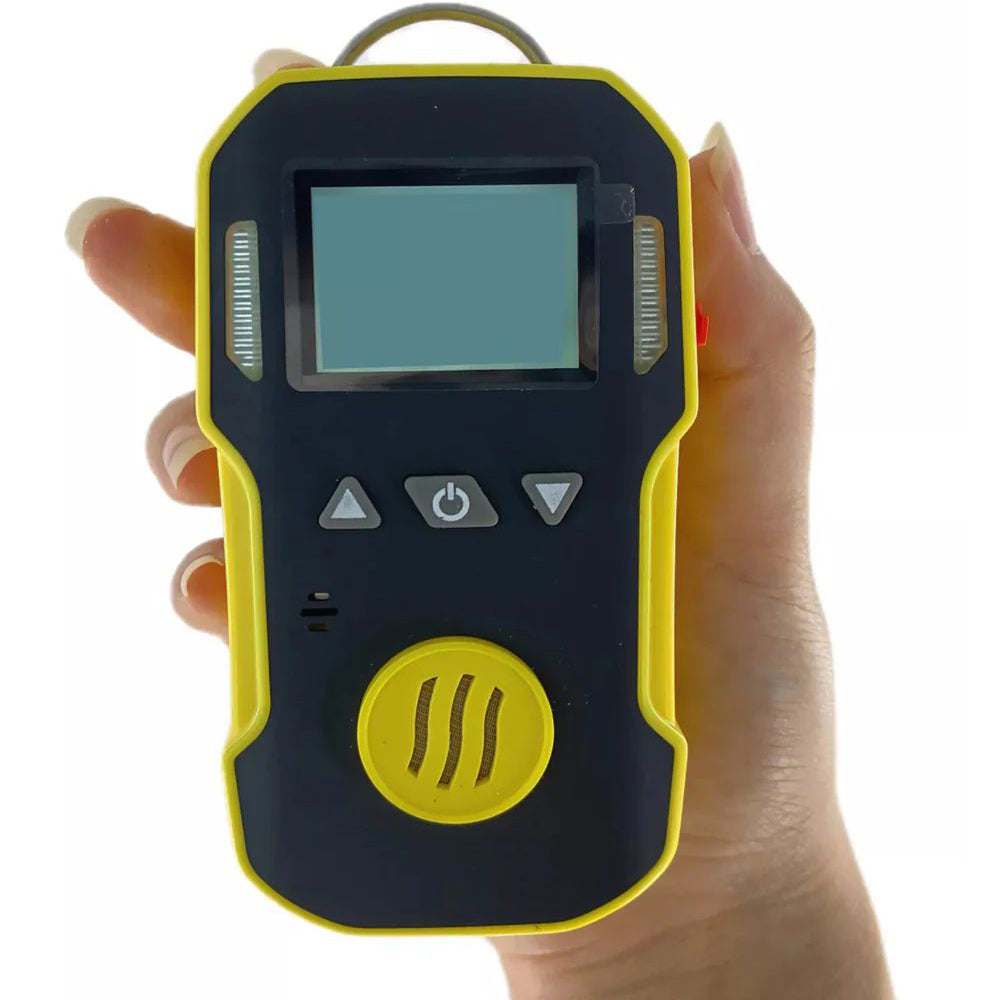

Dimension: 109x60x30mm (LxWxH)
