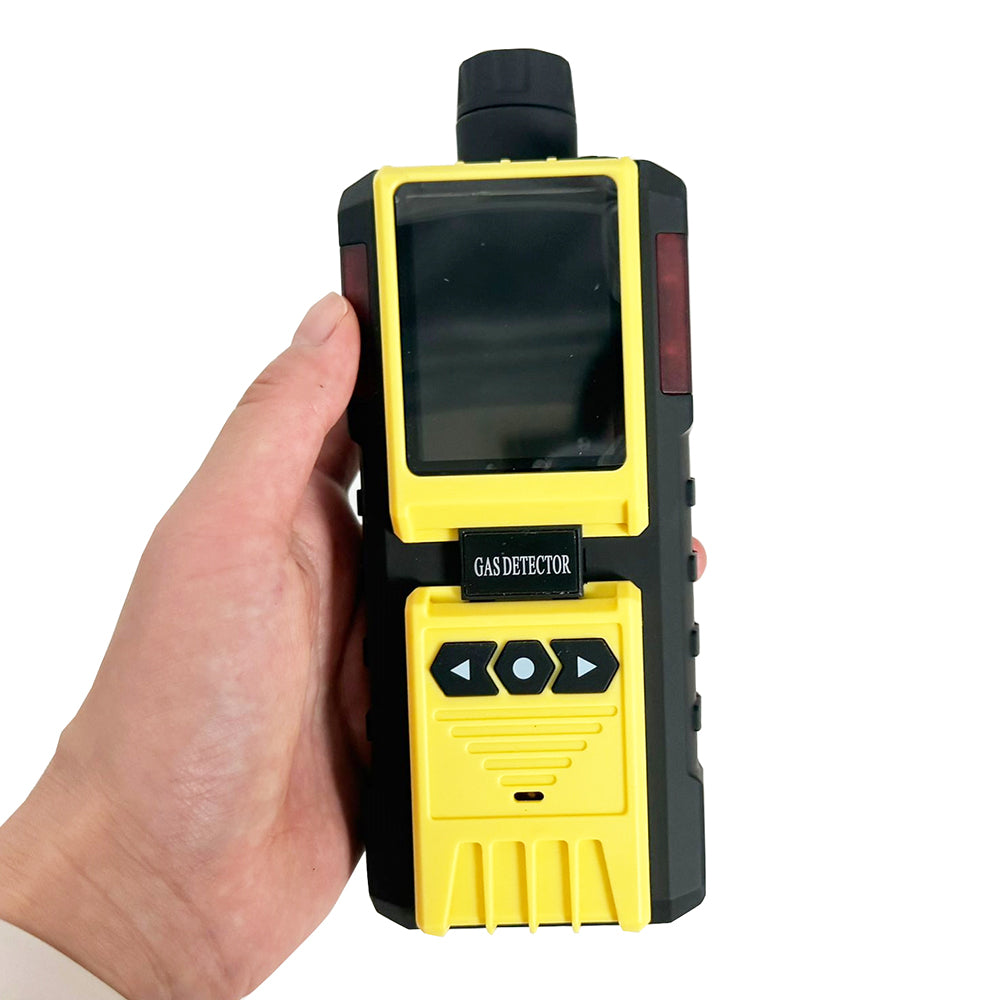

QIUSUO C2H4O Detector Ethylene Oxide Gas Detection Equipment with High-sensitivity Sensor Built-in Pump Measuring Range 0-100ppm Resolution 1ppm L-alarm 10ppm H-alarm 20ppm Accuracy ≦±5% F.S. for C2H4O Gas Leakage Detection

About this item

Test gas: Ethylene Oxide C2H4O

Range:0-100ppm; Resolution: 1ppm; Accuracy ≦±5% F.S.

L-alarm: 10ppm；H-alarm: 20ppm

With built-in pump: Gas pump sampling method and high-sensitivity sensor,with high sensitivity and repeatability.

High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof

Overview:

With built-in pump is a new intelligent gas detector, which adopts an advanced integrated circuit, with standard intelligent level design technology, and proprietary digital analog hybrid communication technology.

The detector is of excellent sensitivity and repeatability, which makes it very easy to use and maintain. Thus greatly meets the safety requirements of industrial sites with high reliability.

The detector is made of high-strength engineering plastics, compound non-slip rubber, which is of high strength and good hand feeling. what's more, the detector is water-proof, dust-proof and explosion-proof.

It is widely used in petroleum, chemical, environmental, metallurgy, refining, gas transmission and distribution, biochemical medicine, agricultural and other industries.

Gas pump sampling method and high-sensitivity sensor,with high sensitivity and repeatability.

32-bit built-in MCU, high reliability and self-adaptation ability.

Full functions, easy operation.

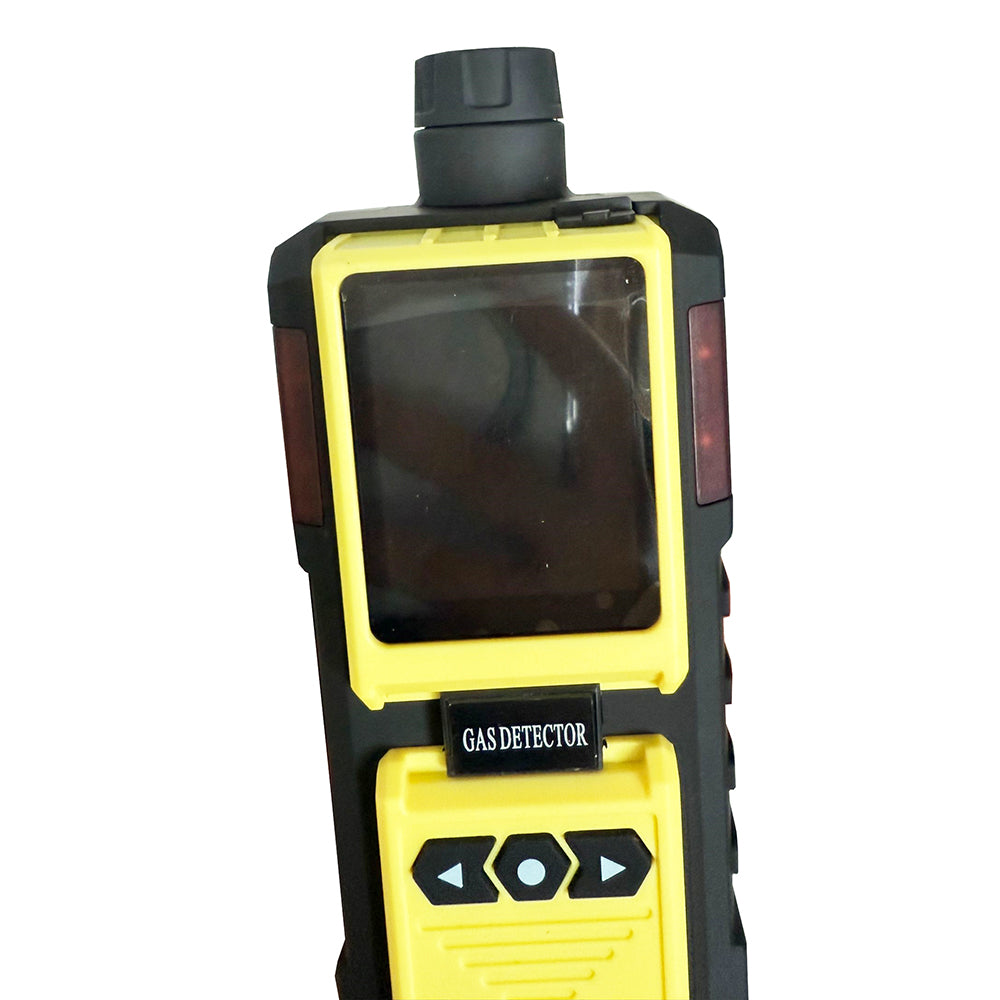

CSTN colorful LCD, more intuitionistic, abundant and clear indication.

Compact design, easy carrying.

High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

1200pcs data records, can be contacted with computer via software. Can print the data records, can store data records, can make the data analysis.

Specifications:

Testing gas: Ethylene Oxide C2H4O

Measuring Range: 0-100ppm; Resolution: 1ppm; L-Alarm 10ppm; H-Alarm: 20ppm

Gas sampling method: Gas pump sampling

Accuracy: ≦±5% F.S.

Response Time: ≦30s

Indication: LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state.

Working environment: -20℃～50℃, ＜95%RH (no dew)

Power Source: DC3.7V Li-on battery, 3200mAh

Charging time: 6h~8h

Working time: ≧8h continuously (without alarming)

Gas Sensor Life: 2 years

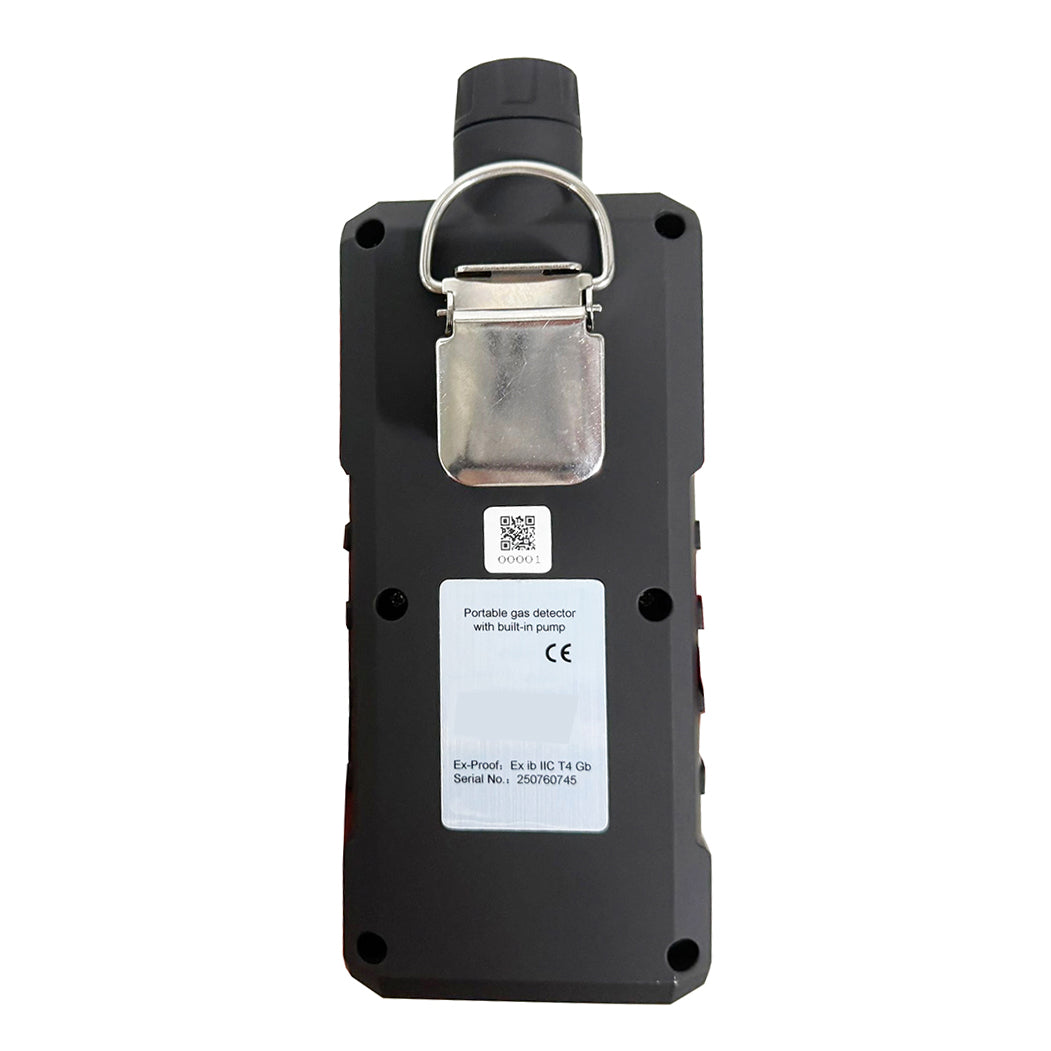

Explosion-proof grade: Ex ib IIBT4 Gb

Protection Grade: IP65
