Description
About this item:
1% Accuracy: please note that of this Triaxial Fluxgate Magnetometer measurement accuracies is +/-1% .
Range Switch: You can Choose mT(mite) or mG(gauss).
Wide Range of Application:
1.Earth's magnetic field measurement, environmental magnetic field detection;
2.Detection of weak magnetic fields in small ferromagnetic bodies or rocks;
3.Measurement of residual magnetism in metal parts processing, package/wrap inspection;
4.Evaluation of the attenuation characteristics of magnetic shielding;
5.Detection of NMR or electron microscopes;
6.Detection of magnetic field drift of precision instruments;
7.Calibration of weak magnetic field sources (solenoids/Helmholtz coils) for laboratory use

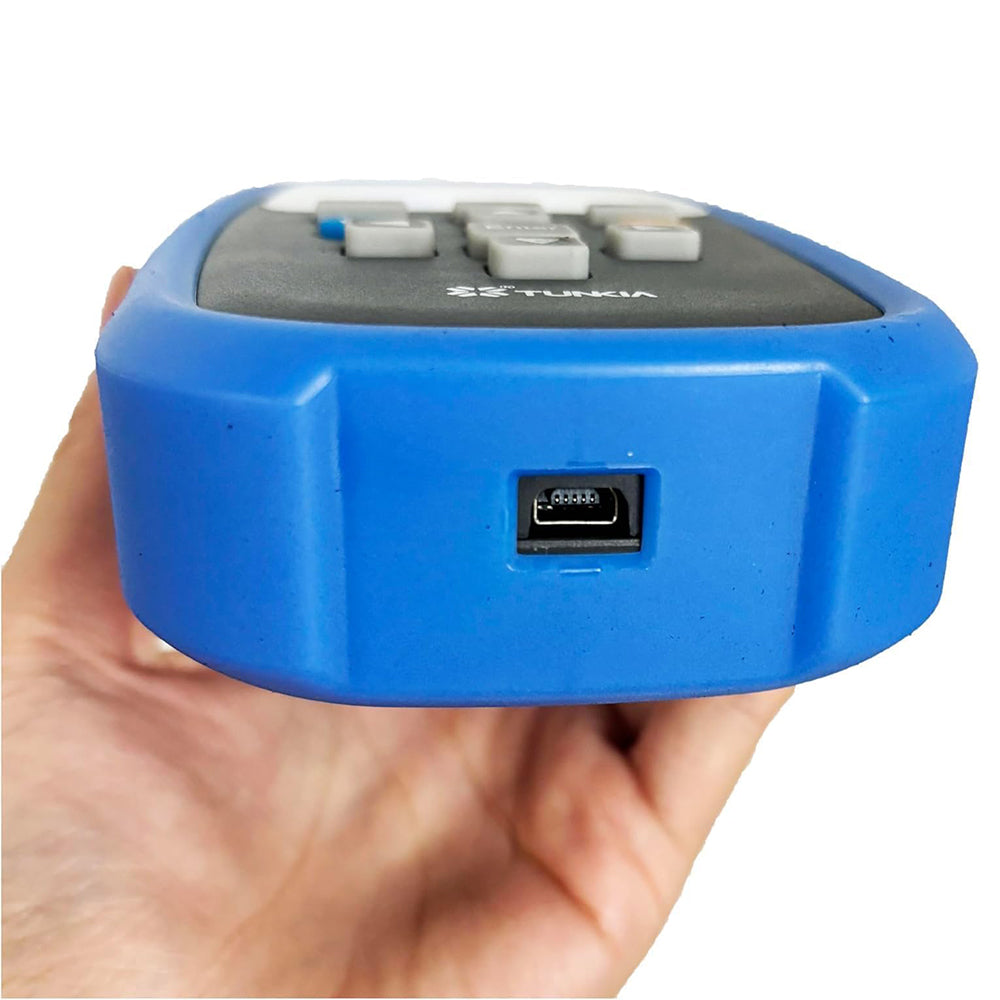

USB interface: USB charging AND Communication interface

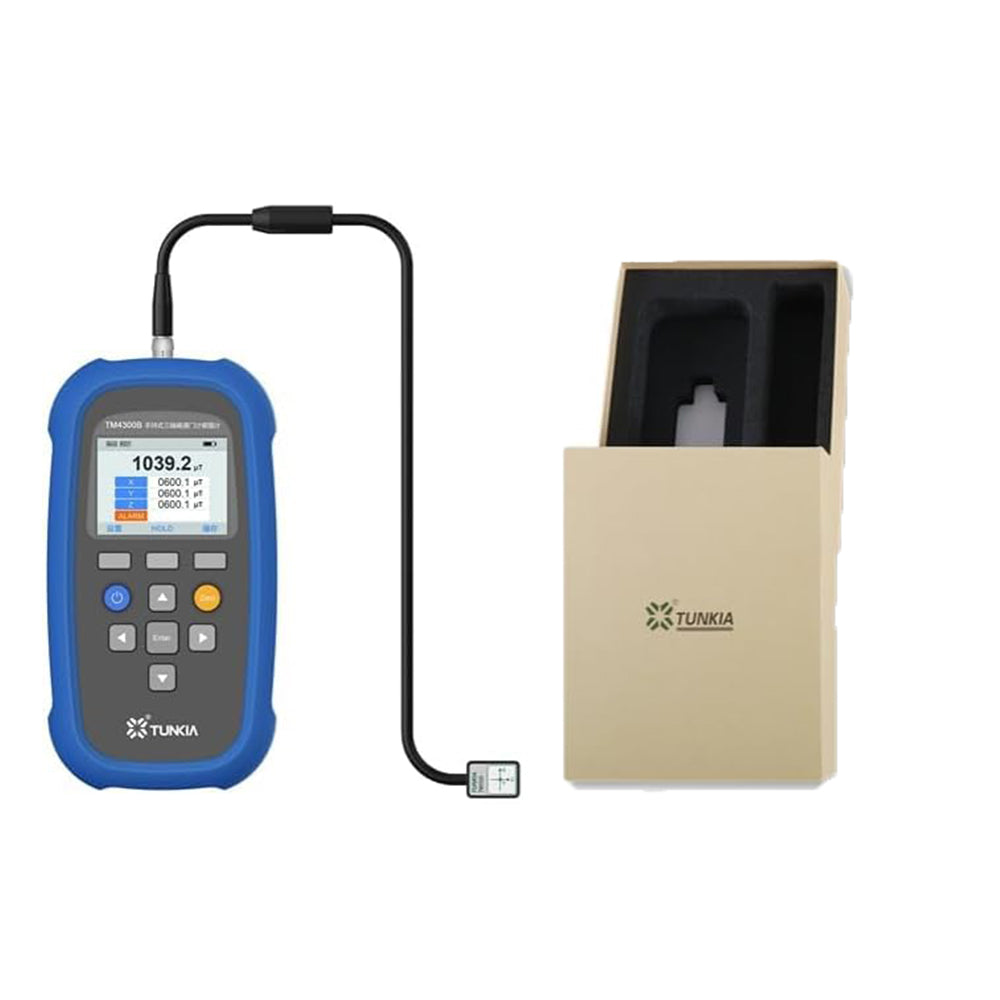

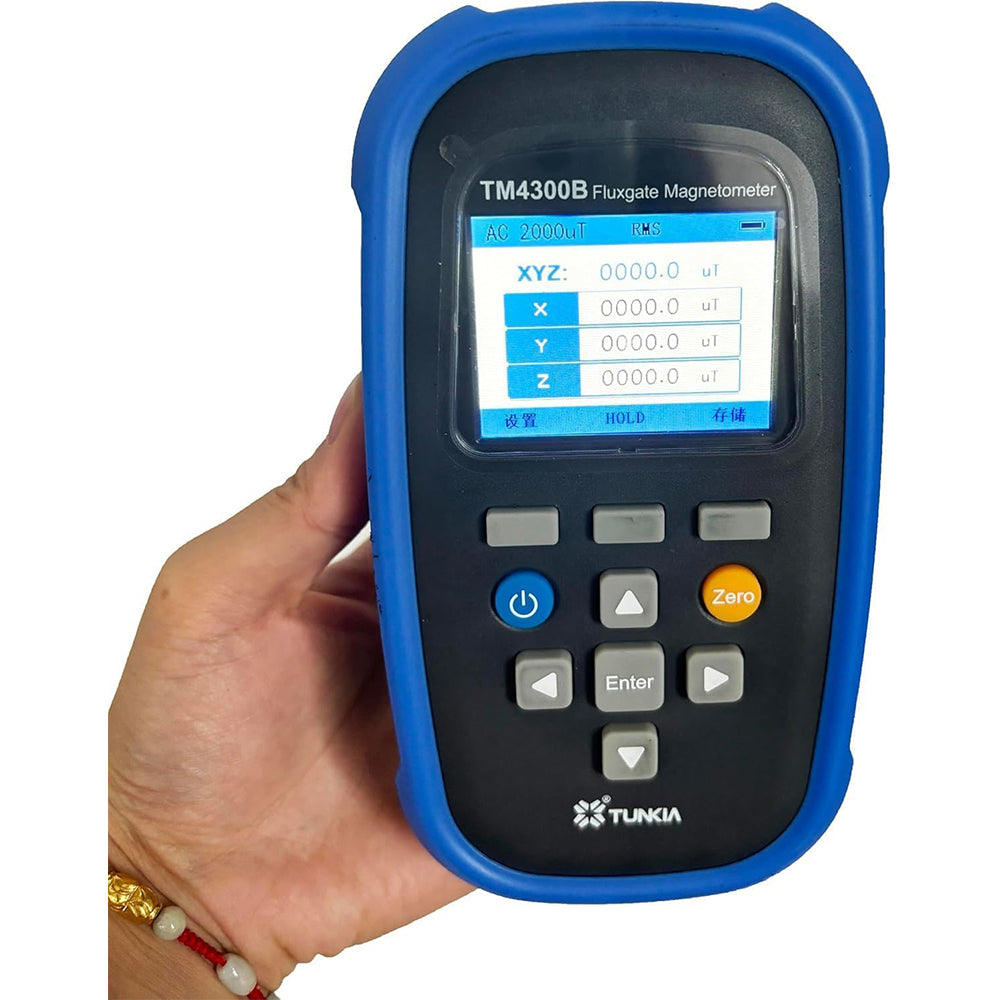

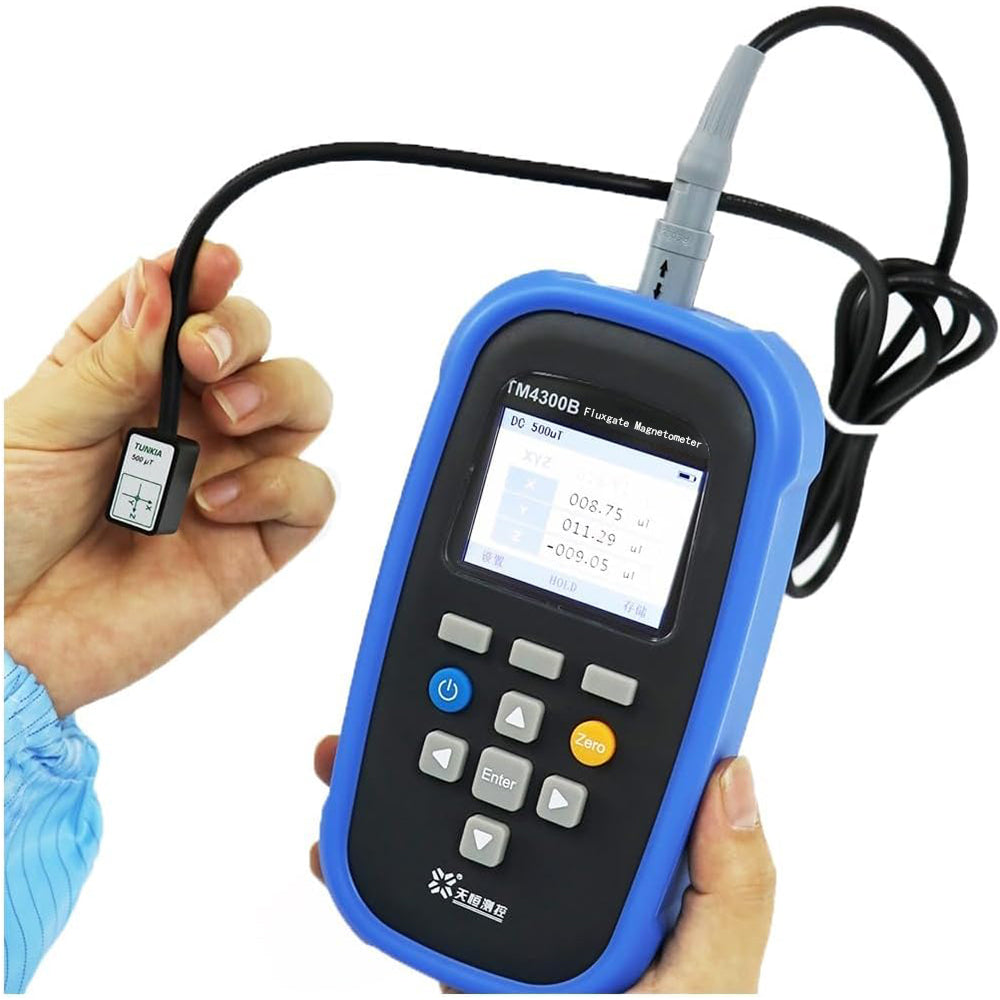

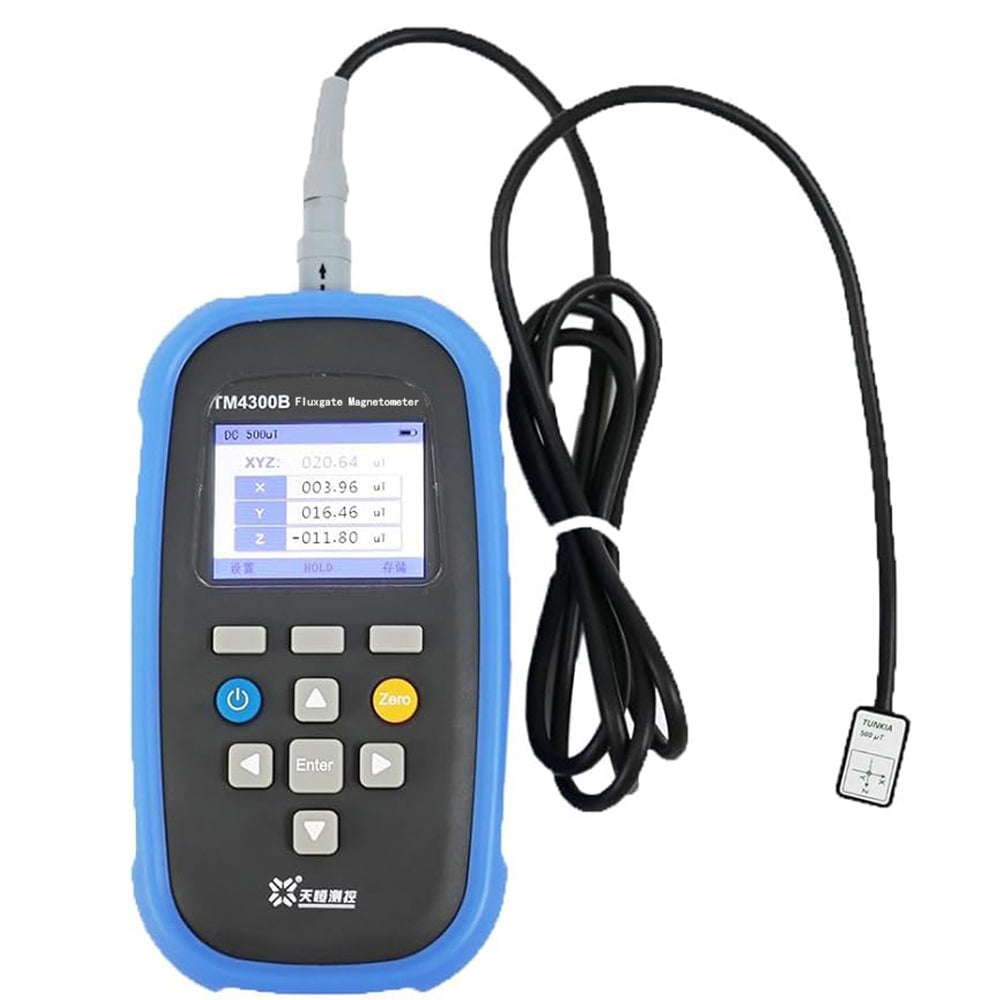

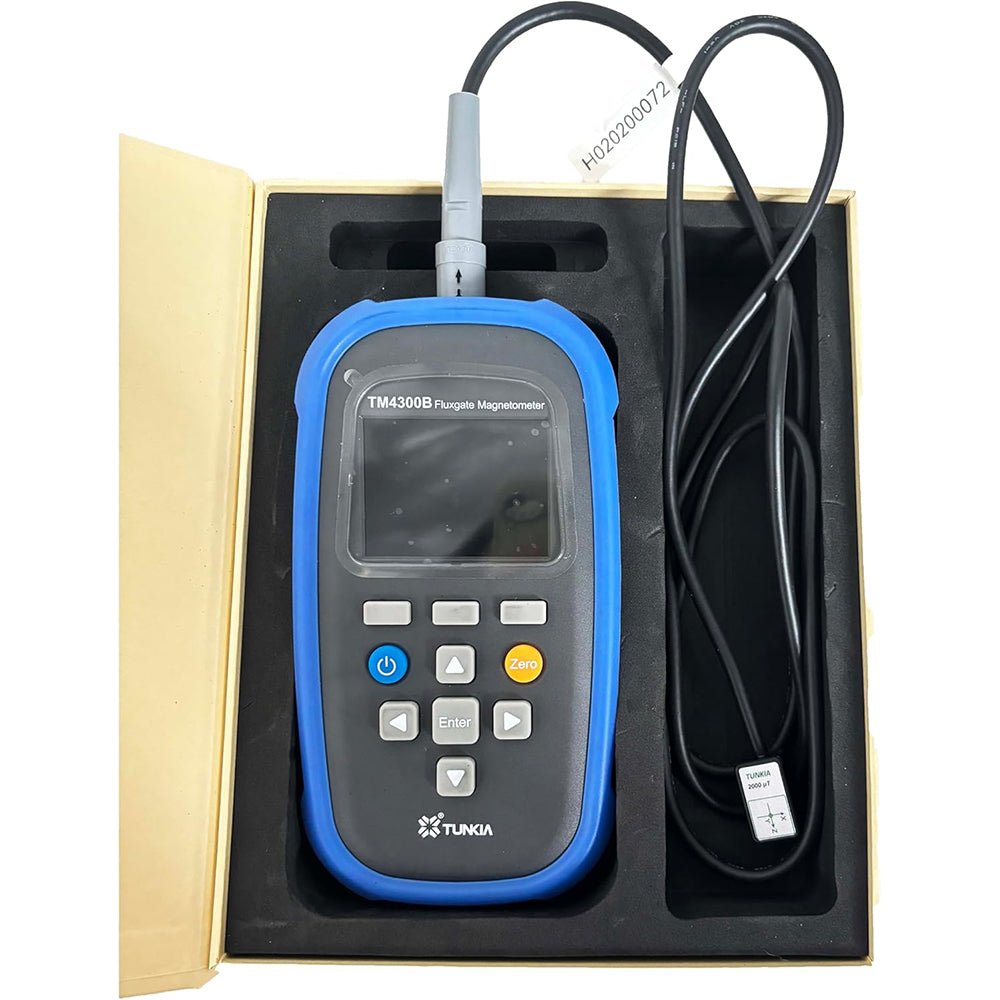

Tri-axis Fluxgate Magnetometer:Measuring XYZ component, vector synthetic value.
Application:
Measuring low magnetic field.
Geological prospecting.
Fragmentation processing, security check.
Fault location, research experiment.
Magnetic shielding evaluation.
Calibrating low magnetic field sources.
Detecting magnetic resonance meter.
Detecting electron microscope.
Detecting Magnetic field drift.
Technical Specifications:
Range: (μT):100
Resolution (nT):10
Accuracy(k=2):1%.
Temperature coefficient (%/°C):0.1
Noise: <20nTrms @ 1Hz
Power supply: 4000 mAh lithium battery power, USB charging
Operating temperature: 0°C~45°C; Storage temperature: -20°C~70°C
Operating humidity: 20%~80% R. H non-condensing
Storage humidity: <85% R.H, non-condensing
Weight: approx. 500 g
Communication interface: Magnetic fluxgate probe input interface, USB interface
Dimension: 90 mm(W) X 40 mm(D) X 165 mm(H)

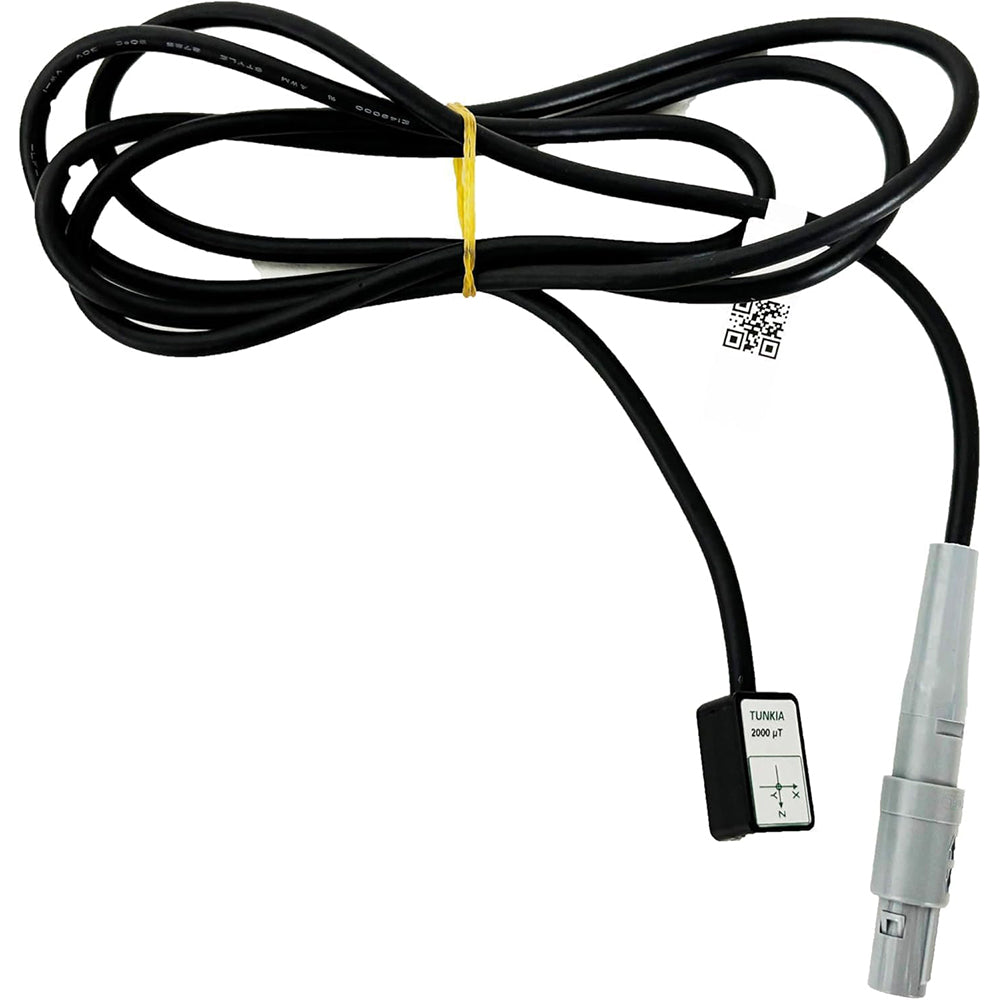

Probe size: 20 mm(L) X 14 mm(W) X 12 mm(H)
