QIUSUO Lab Liquid Colorimeter Liquid Spectrophotometer with Standard Deviation within 0.05% D/0 Geometric Optical Structure Rich Chromaticity Indicators Transmittance Range 0-200% Chroma value within ΔE*ab 0.015 for Liquid Chromaticity Measurement

About this item:

Standard deviation within 0.05% (360~780nm: within 0.04%)

Chroma value: within ΔE*ab 0.01 (after preheating correction, measured at an interval of 5S)

Combined full spectrum LED light source

Data Storage: 1000 standards, 20000 samples; Host computer mass storage

It widely used in various solvents, pharmaceuticals, petroleum, industrial oil, cosmetics, food and beverage and other fields.

Introduction

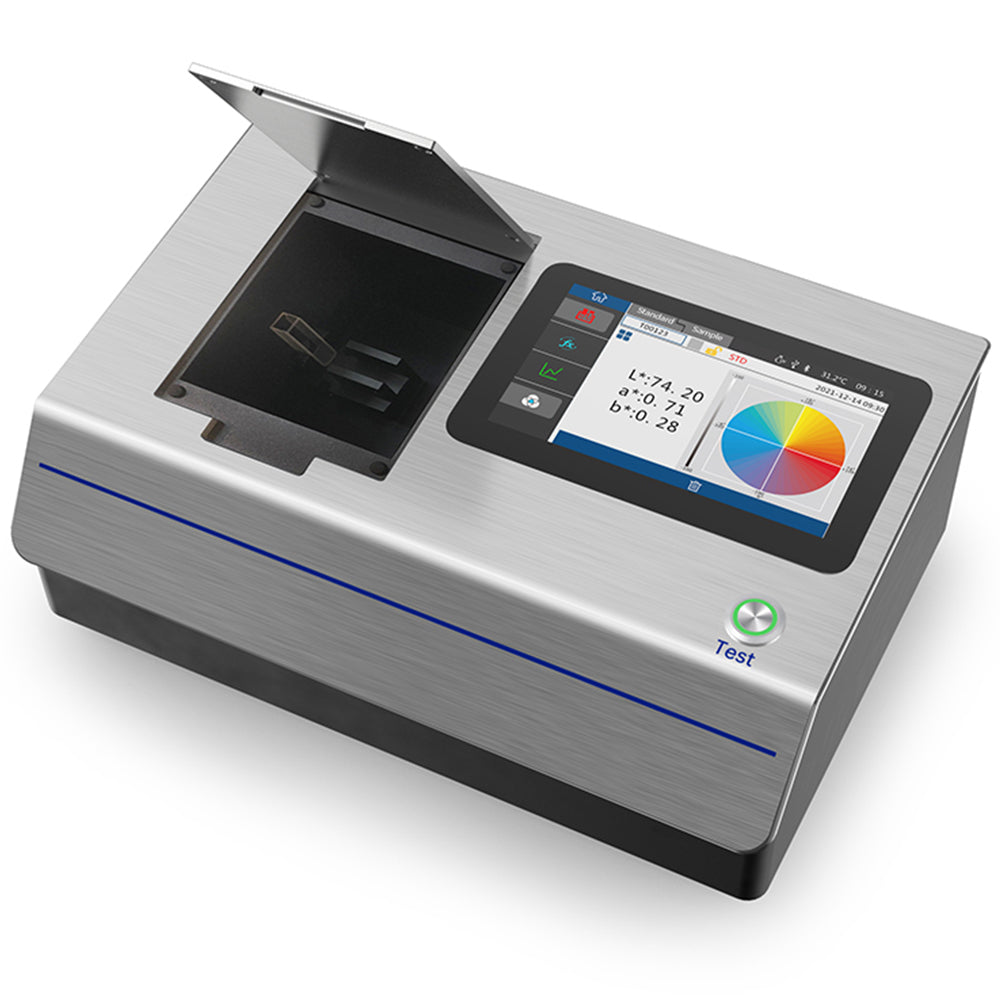

The liquid colorimeter is a highly accurate color analysis tool designed for liquid colorimetric measurement using innovative core technology. With a D/0 optical structure, full-band LED light source and a high-performance test system, the liquid colorimeter captures the transmitted color of a sample quickly and accurately, and analyzes its subtle chromaticity properties in depth. Widely used in various solvents, pharmaceuticals, petroleum, industrial oil, cosmetics, food and beverage and other fields.

Feature:

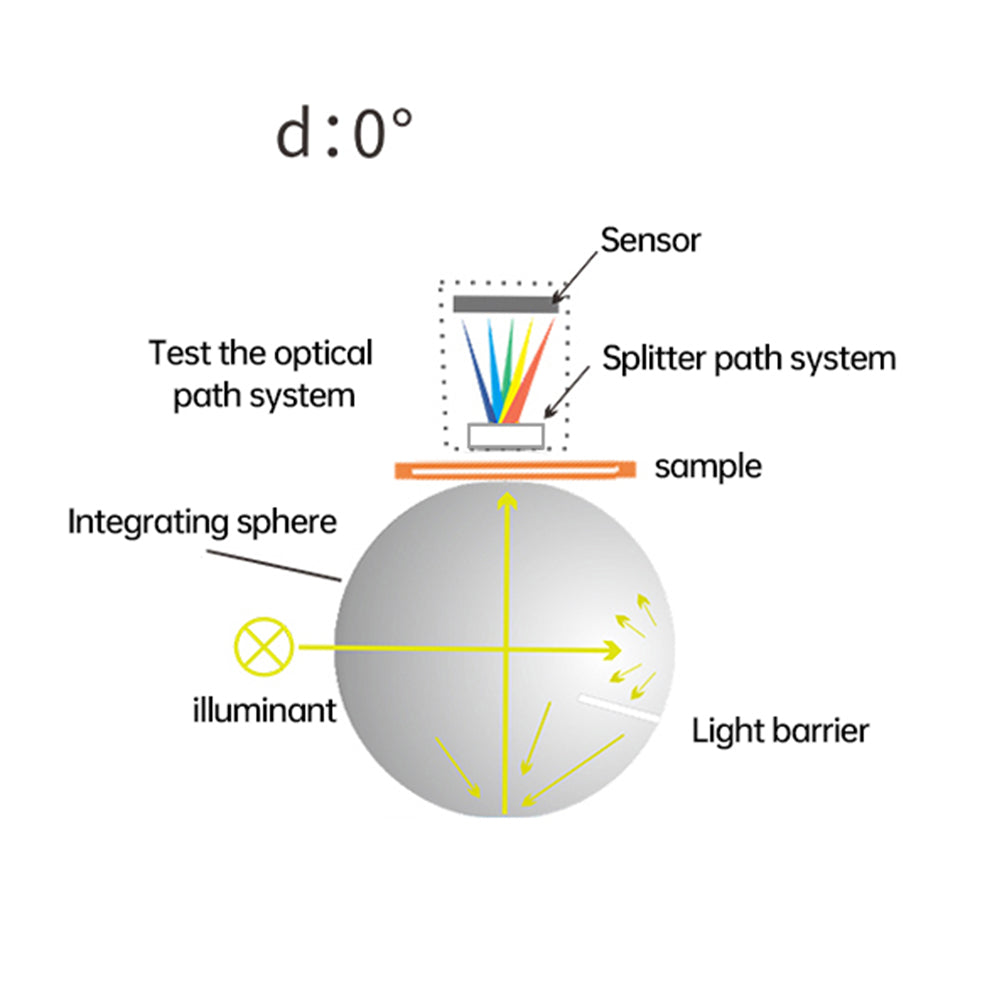

1.D/0 geometric optical structure

The D/0 geometric optical structure can provide a more comprehensive chroma analysis to ensure that your products meet the quality standards :GB/T 3978,GB/T 18833,GB 2893 ASTM D1003/1044,CIE No.15,ASTM E308,DIN5033 Teil7.

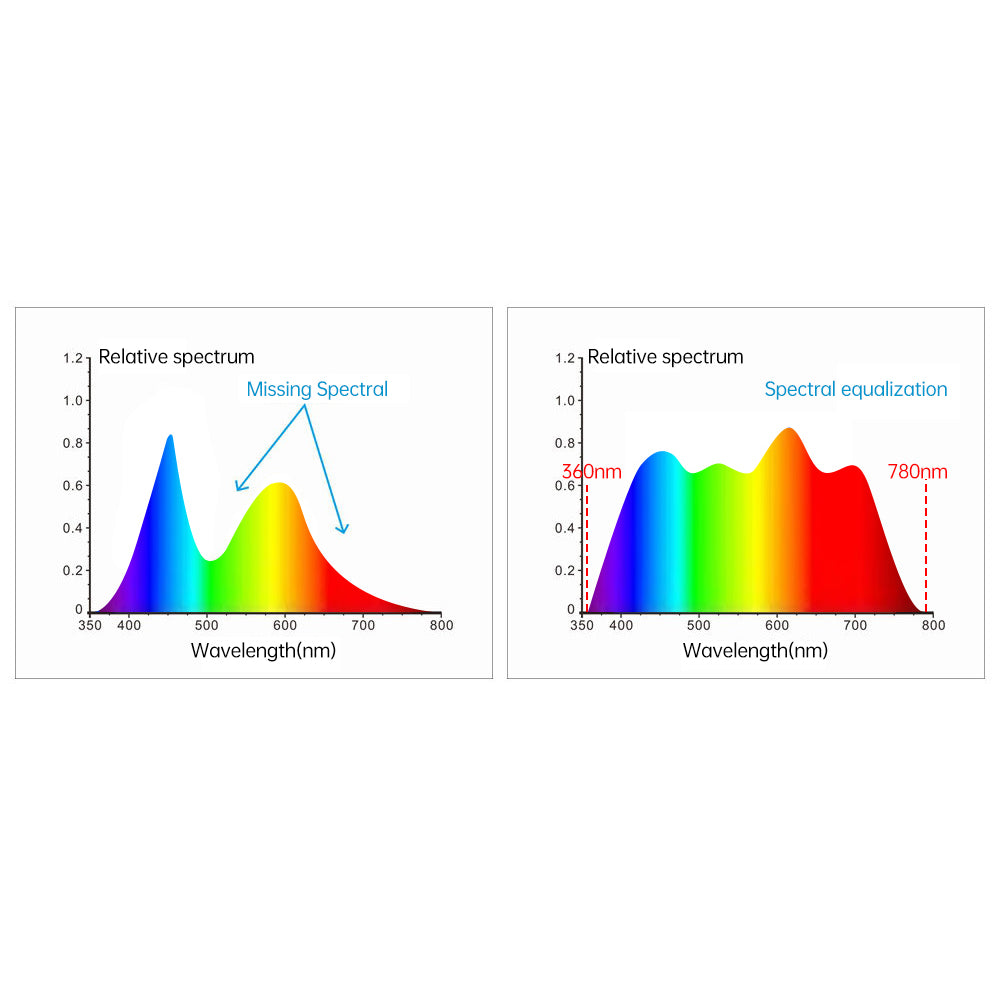

2. Combined full spectrum LED light source

The combined full spectrum LED light source is used as the lighting source, covering the wavelength range of 360 ~ 780nm, ensuring the high stability of the test.

3.High-performance dual array sensor

Equipped with high-performance silicon photodiode dual 40 array sensor to ensure measurement speed and accuracy, improve work efficiency.

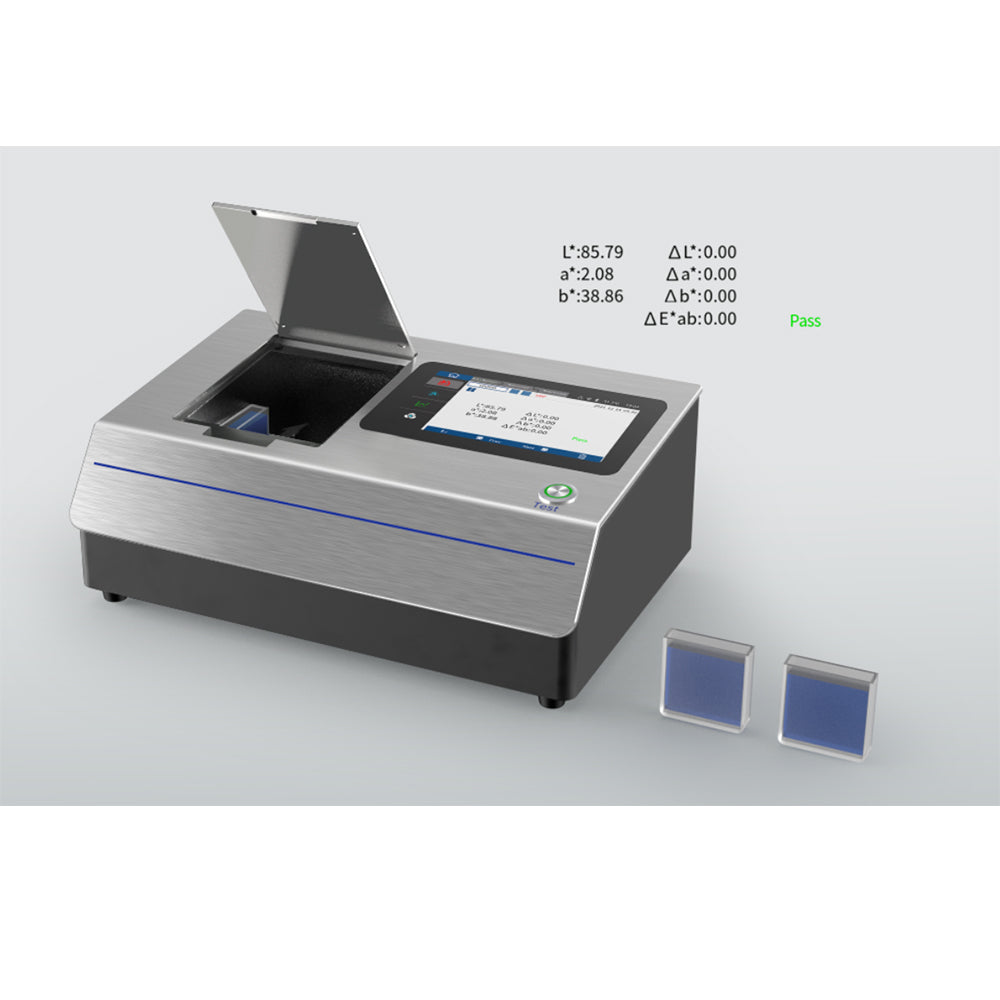

4.Excellent repeatability and difference between stations

The repeatable spectral transmittance is within 0.05%, the chroma value is within 0.015, and the difference between stations is within 0.25, ensuring that the measurement results between multiple devices are highly consistent, and escorting the quality control in mass production

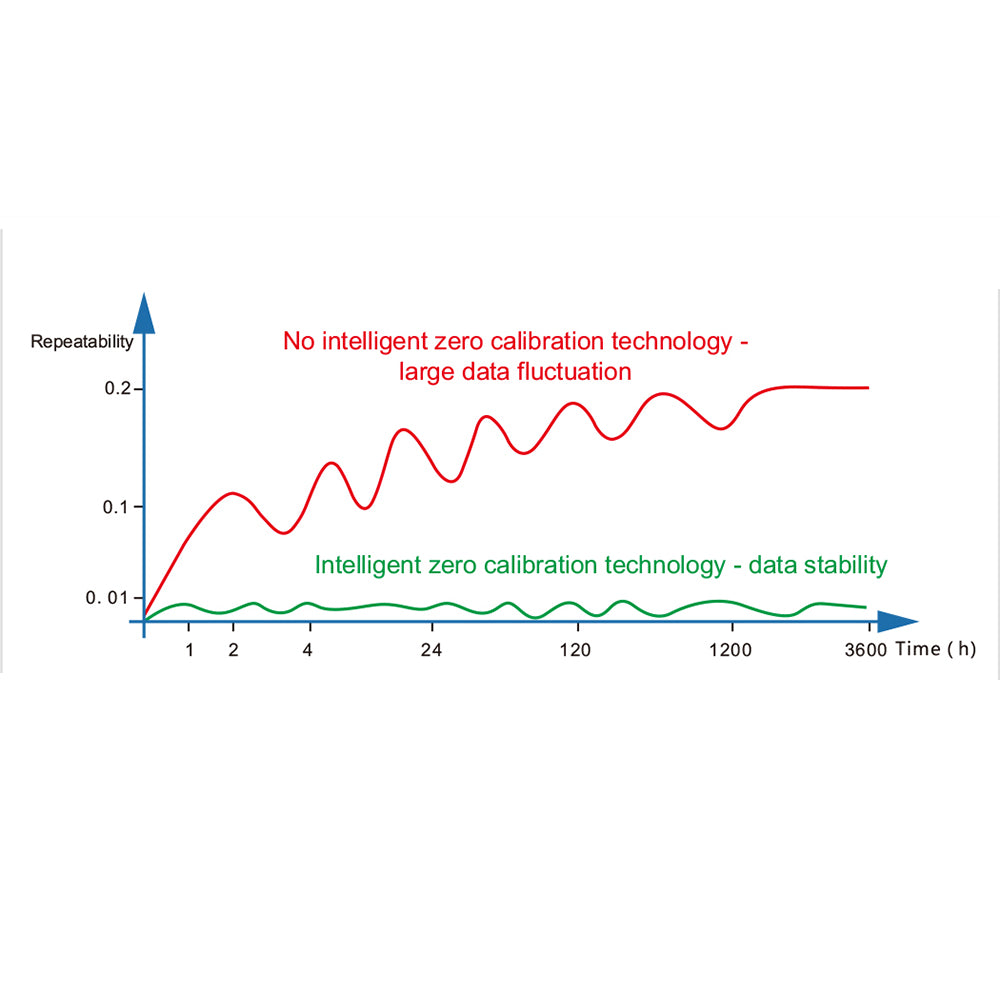

5.Intelligent zero calibration

Intelligent zero calibration technology is adopted to reduce the influence of external interference, adapt to different measurement environments, and ensure the accuracy and reliability of measurement data.

6.Multiple light source simulation

A range of International Lighting Commission approved standard light sources are built in to ensure that your products can accurately measure color under different light  sources.

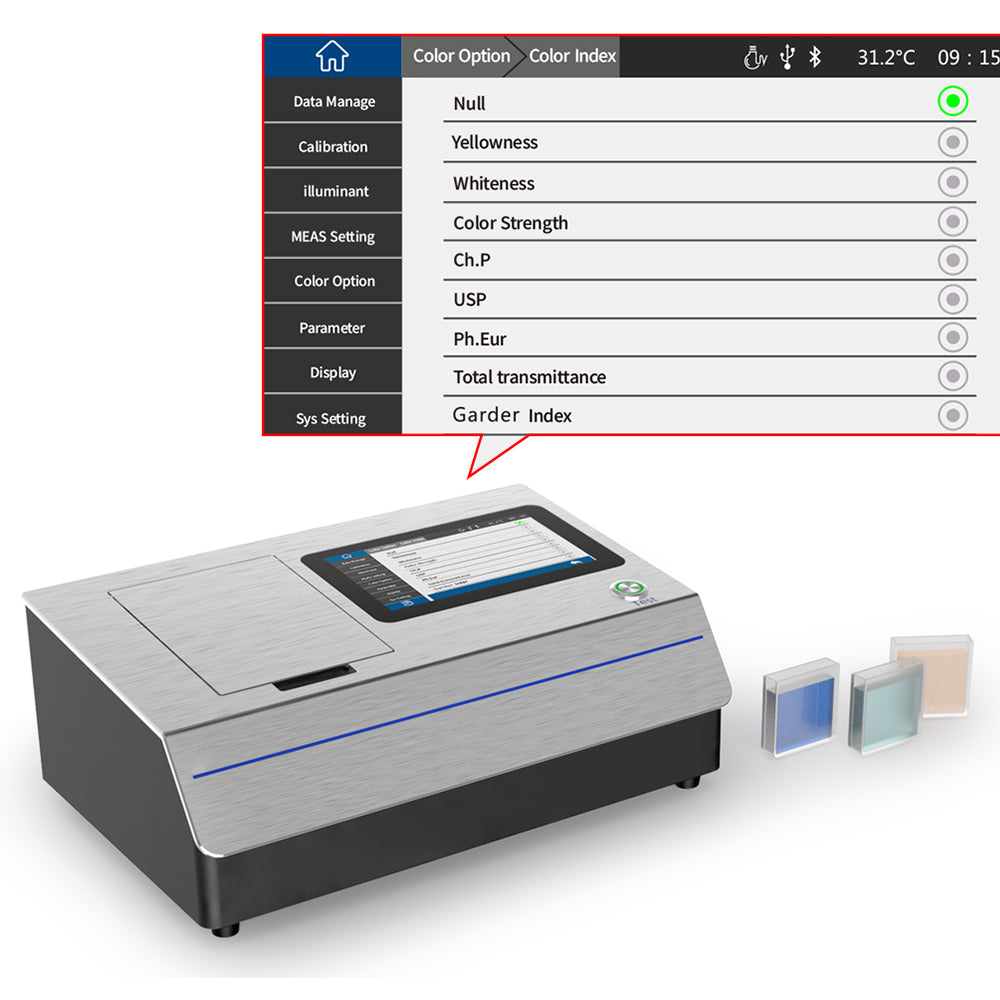

7.Chroma index is abundant

In addition to the commonly used Color index measurement, it can also provide color indicators such as transmittance, oil color scale (ASTMD1500), platinum cobalt index, Gardner Index, Saybolt (Sebert Index), pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, US pharmacopoeia), EBC (beer color), ICUMSA Color(sugar color), etc. Meet the needs of diverse industries.

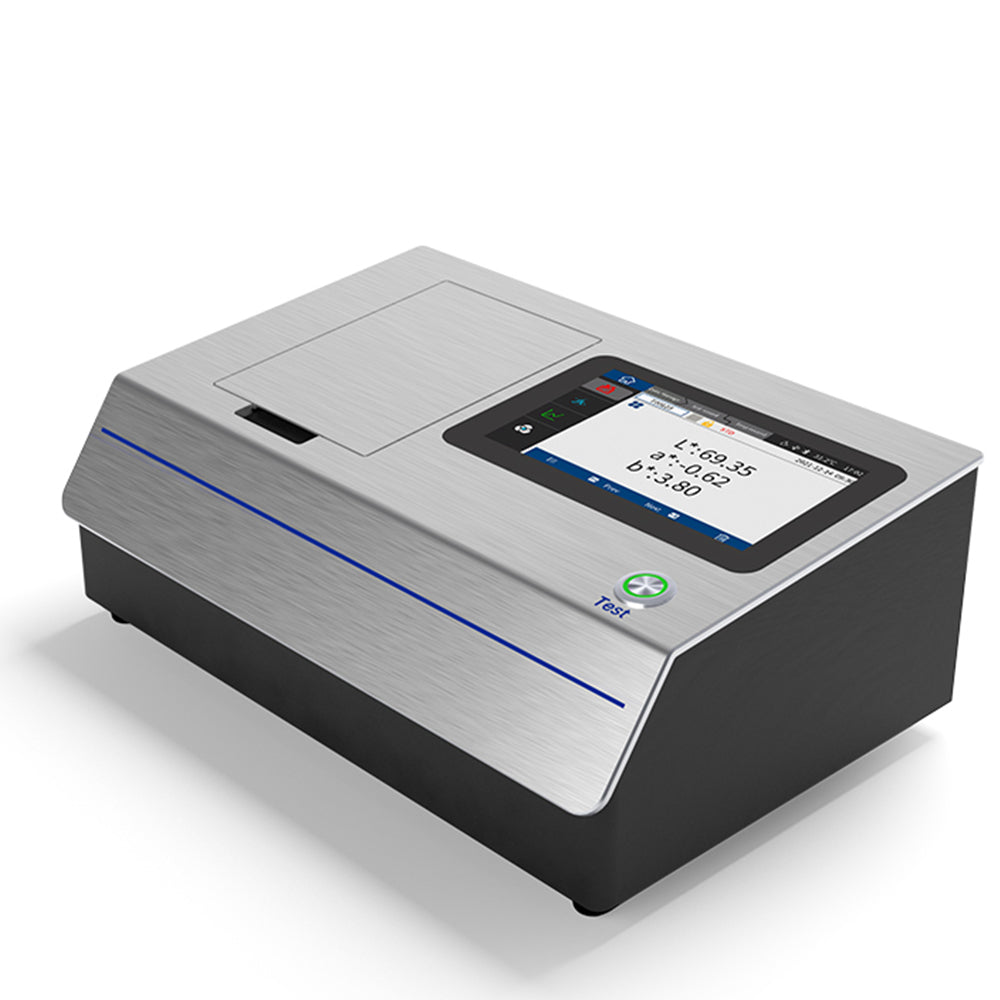

8.Powerful display and interaction capabilities

Equipped with 7-inch true color capacitive touch screen, large screen navigation operation, can display a variety of chrominance indicators such as spectrum, color difference value/chart, color simulation and color deviation, and achieve fast and accurate color analysis and judgment.

9.PC quality management software

Provide powerful analysis software, suitable for quality management in various industries, and generate test reports from users' test results to facilitate customer customization and management.

Optional accessories

Meet the different measurement needs of customers

This product is equipped with a variety of accessories; Such as micro printer, 30mm colorimetric dish, 100mm colorimetric dish, etc., to meet customer measurement needs.

The instrument is widely used in various solvents, drugs, petroleum, industrial oil, cosmetics, food and beverage and other fields. Colorimetric analysis and transmittance testing are also widely used in glass processing, plastic processing, film, display processing, packaging industry, liquid and pharmaceutical analysis and other industries.

Product parameter:

Lighting mode: Transmission: D/0 (diffuse illumination, 0° direction reception);Approximate CIE15 provisions 0/0 (parallel light illumination /0 degree reception);Standards :GB/T 3978,GB/T 18833,GB 2893 ASTM D1003/1044,CIE No.15,ASTM E308,DIN5033 Teil7

Peculiarity: National Standard Pharmacopoeia color measurement, glass processing, plastic processing, film, display processing, packaging industry, liquid pharmaceutical analysis and other industries chroma analysis, transmittance test are widely used, support micro transmission measurement

Integrating Sphere Size: Φ40mm

Lighting source: Combined full spectrum LED light source

Spectroscopic method: Planar grating spectroscopy

Sensor: Silicon photodiode array(double row 40 groups)

Wavelength Range: 360-780nm

Wavelength Interva: 10nm

Semiband Width: 5nm

Transmittance measurement range: 0~200%

Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 ,CMYK(The above part is realized by the upper computer)

Color Difference Formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter),ΔE*CH

Other Colorimetric Index: The transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), isochromatic index Mt, color fastness, color changing fastness, absorbance,APHA/Hazen/Pt-Co (platinum-cobalt index), Gardner Index, iron-Cobalt index, Saybolt (Seibert Index),ASTM D1500 Color scale, Pharmacopeia(Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia),EBC (Beer color), ICUMSA Color(sugar color)

Observer Angle: 2°/10°

Illuminant: D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5(41 light sources in total,part achieved via software in PC)

Displayed Data: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Measuring Time: Fast mode approx. 0.8s

Repeatability: Spectral transmittance: standard deviation within 0.05% (360~780nm: within 0.04%);Chroma value: within ΔE*ab 0.015 (after preheating correction, measured at an interval of 5S);

Inter-instrument Error: ΔE*ab≤ 0.25

Dimension: L*W*H=370X300X200mm

Weight: Approx.9.6kg

Power: AC 24V, 3A Power adapter power supply

Illuminant Life Span: 5 years, more than 3 million times measurements

Display: 7-inch TFT color LCD, capacitive touch screen

Data Port: USB, print serial port

Data Storage: 1000 standards, 20000 samples; Host computer mass storage

Special function: Intelligent zero calibration

Operating Environment: 0~40℃（32~104°F）

Storage Environment: -20~50℃（-4~122°F）

Standard Accessory: Power adapter, manual, quality management software (download from official website), data cable, transmission blackboard, 10mm cuvette, 50mm cuvette, 50mm cuvette governing device.

Optional Accessory: Micro printer, 30mm cupola,100mm cupola,100mm Colorimetric Cell Fixture,Microhole (4mm) transmission test fixture assembly,Bluetooth Adapter, Heating Controller
