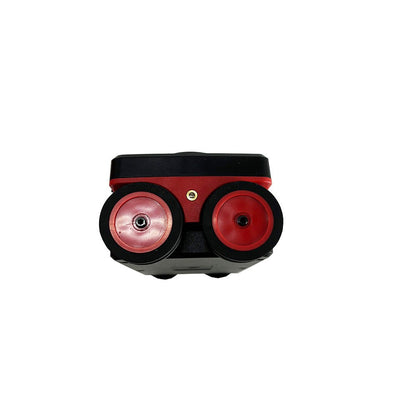

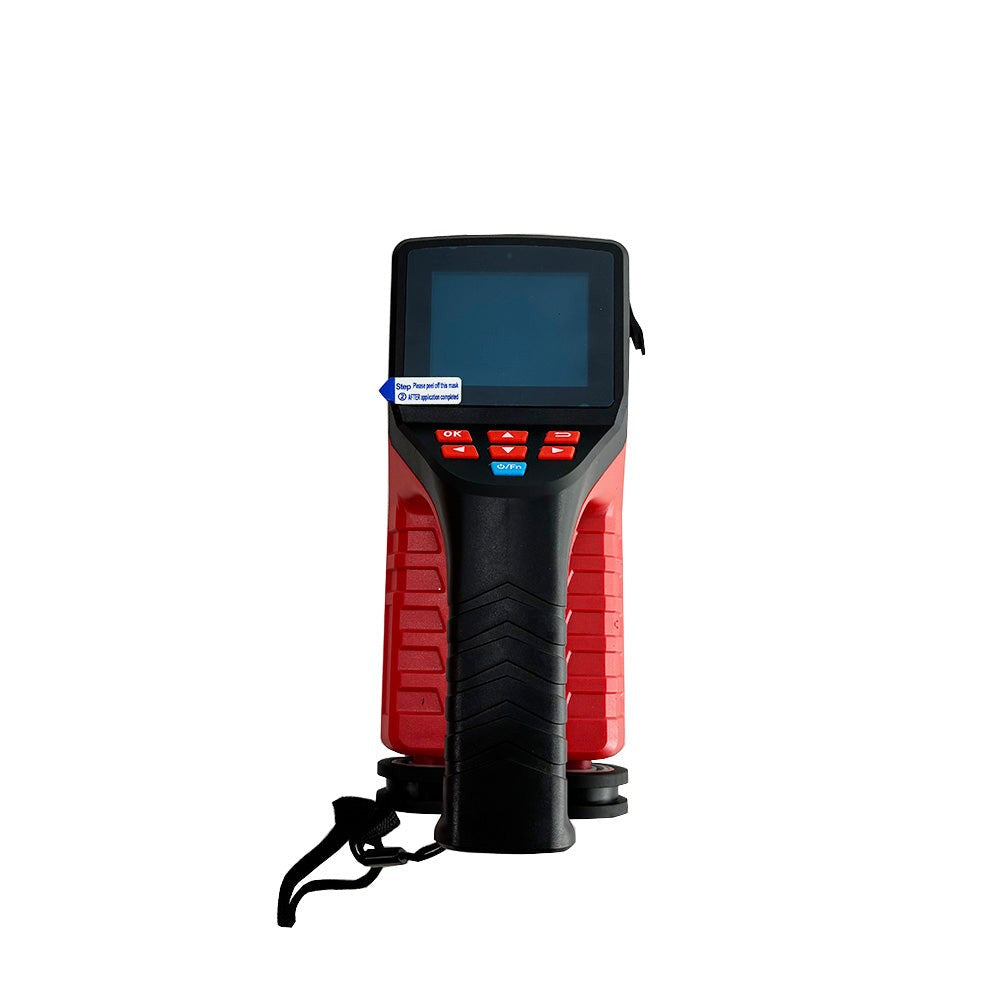

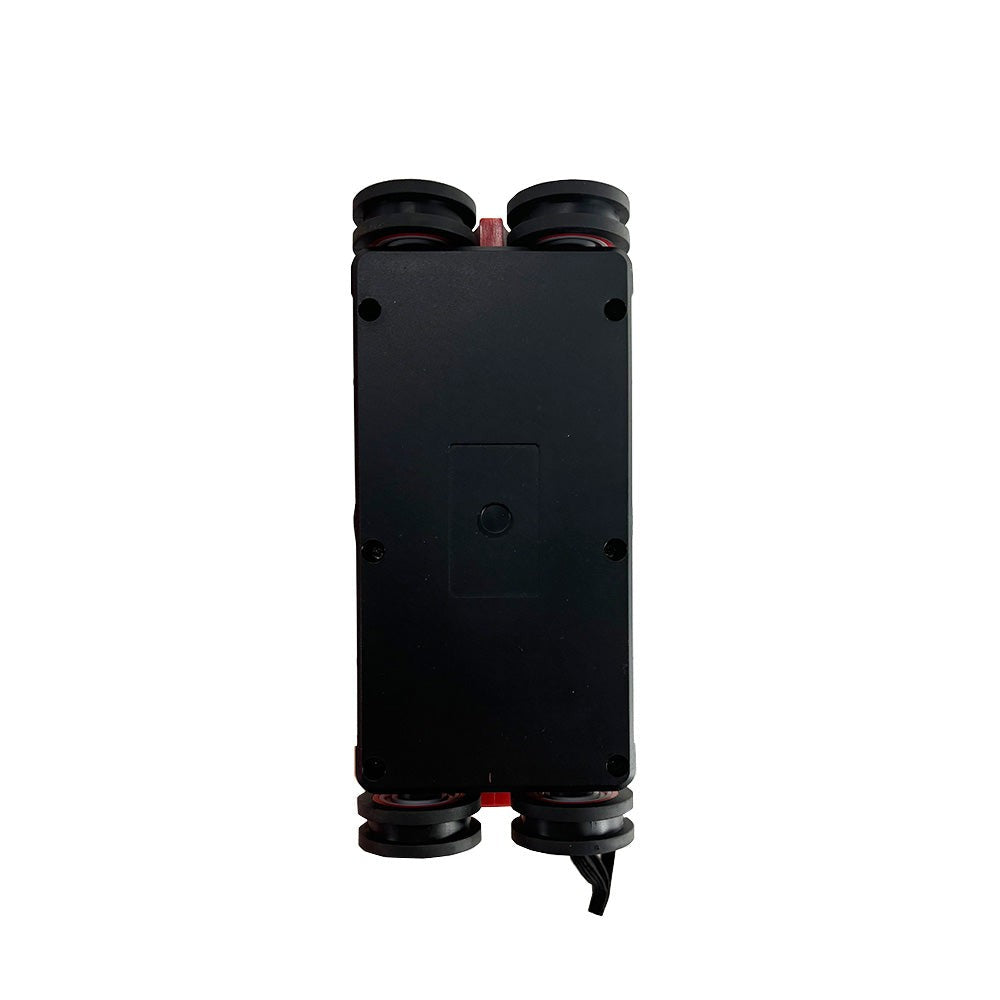

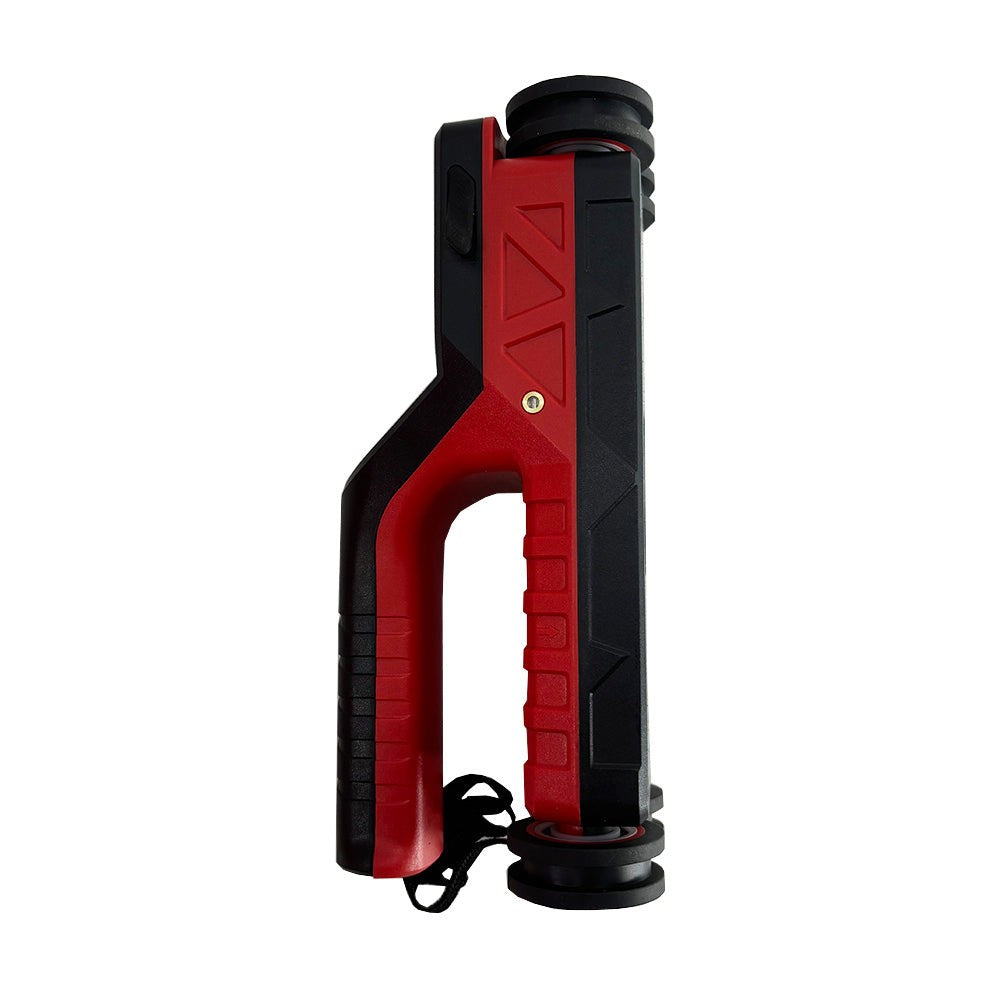

QIUSUO Integrated Rebar Detector Integrated Concrete Rebar Scanner with Protective Layer Thickness Calibration Range 0 ~ ±50 mm Rebar Diameter Setting Range φ6mm~φ50mm Distance Accuracy ±1mm 5 Kinds Of Theme Choice

About this item

◆The thickness of reinforcement protective layer, the position of reinforcement and the spacing of reinforcement are displayed on the same screen. Automatic interpretation of rebar position center;

◆Two-dimensional laser positioning, real-time display of rebar position and adjacent rebar center line

◆Display frame and indicator signal value multiple reminders, convenient rebar positioning and drilling core;

◆The pattern dense reinforcement algorithm is optimized to reduce stirrup interference effectively.

◆Intensive waveform detection greatly improves the accuracy of the number of rebars and the thickness of the protective layer;

◆Reverse compensation, repair the complex site automatic calculation, compensate the protection layer data deviation;

◆Data can be exported from a USB flash drive

Product features:

◆Measure the thickness of the concrete protective layer

◆Positioning of reinforcement

◆Estimated rebar diameter

◆Test rebar spacing, display rebar grid distribution,

◆Detection of magnetic and electrical conductors in non-magnetic and non-conductive media.

Technical features:

◆The thickness of reinforcement protective layer, the position of reinforcement and the spacing of reinforcement are displayed on the same screen. Automatic interpretation of rebar position center;

◆Two-dimensional laser positioning, real-time display of rebar position and adjacent rebar center line;

◆Display frame and indicator signal value multiple reminders, convenient rebar positioning and drilling core;

◆The pattern dense reinforcement algorithm is optimized to reduce stirrup interference effectively.

◆Intensive waveform detection greatly improves the accuracy of the number of rebars and the thickness of the protective layer;

◆Reverse compensation, repair the complex site automatic calculation, compensate the protection layer data deviation;

Specification:

◆1. rebar diameter setting range: φ6mm~φ50mm

◆2. Protective layer thickness measurement (nominal) range:

The first range (nominal) range: 1mm ~ 120mm

The second range (nominal) range: 5mm ~ 210mm;

◆3. Protective layer thickness calibration range: 0 ~ ±50 mm;

◆4.Measuring range of different rebar diameters:

Range rebar diameter(mm):φ6～φ8----φ10～φ20----φ22 and abovev

Small range（mm）:1～60----1～80----1～120

wide-range（mm）:5～120----5～160----5～210

◆5.different thickness error range:

Range error range（mm）:±1----±2----±4

Small range（mm）:1～80----81～120----/

wide-range（mm）:5～80----81～120----121～210

◆6. Diameter estimation range: φ6mm~φ50mm

◆7, the maximum error of diameter estimation (mm) : ±1 mm

◆8, distance accuracy: ±1mm

◆9, scanning mode: conventional scanning, procedure scanning, grid scanning, profile scanning, fine scanning, image scanning

◆10, power supply: built-in large capacity lithium battery

◆11, operation language: Chinese and English switch

◆12, backlight brightness: 8 adjustable

◆13, theme setting: 5 kinds of theme choice

◆14, working temperature: -10℃ ~ +50℃

◆15, host volume: 219mm×92mm×106mm

◆16. Weight: 0.6kg

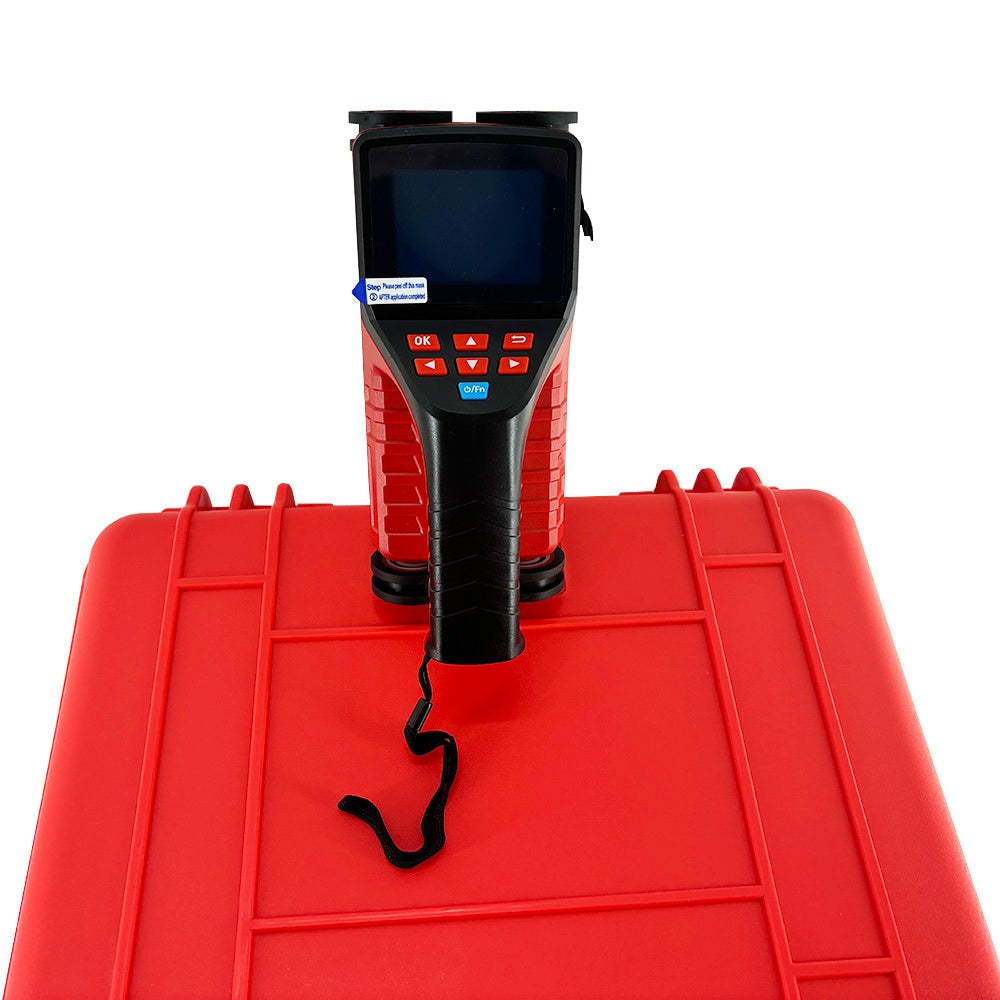

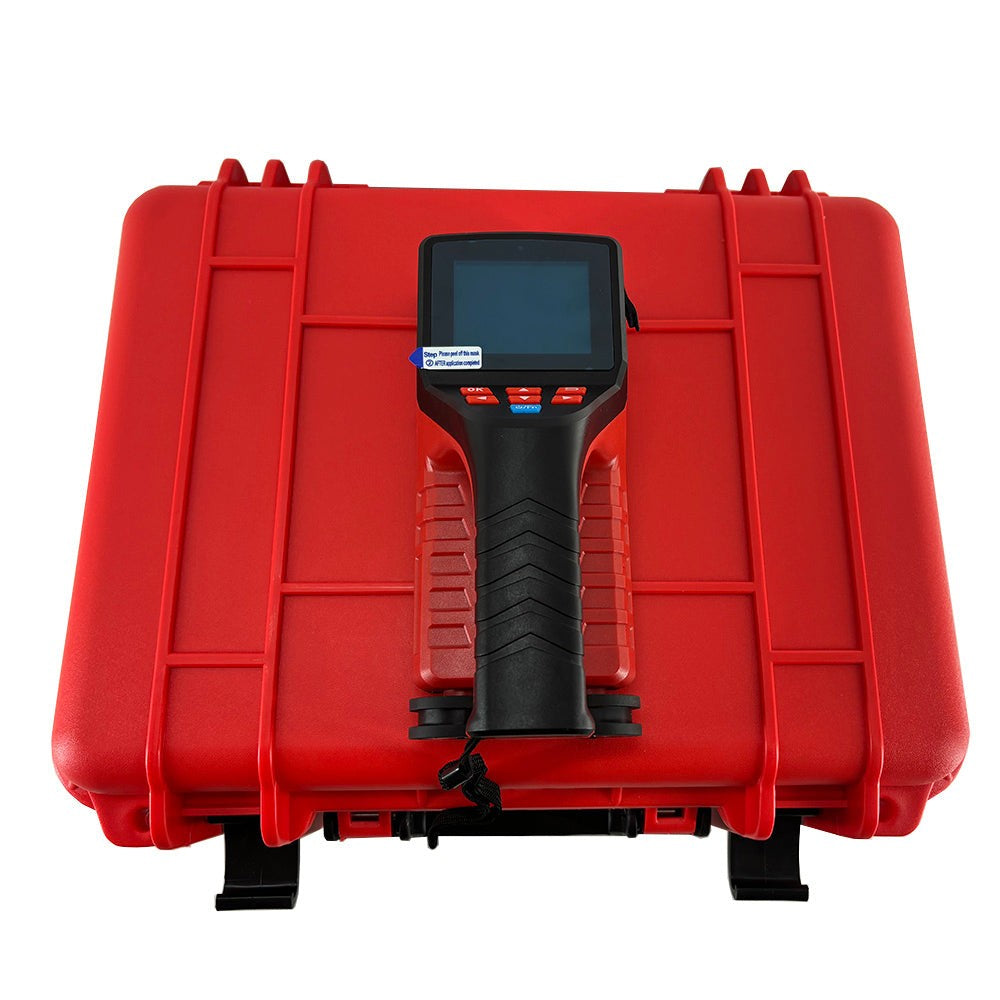

◆Standard accessories：host, charger, software CD, packing case

According to the standard:

◆GB 50010-2010 Code for Design of Concrete Structures (2015 edition)

◆GB 50204-2015 "Concrete structure engineering construction quality acceptance Code"

◆GB/T50344-2019 "Technical Standard for Testing Building Structures"

◆JGJ/T152-2019 "Technical Specification for Inspection of rebars in Concrete"

◆DB11/T365-2016 "Electromagnetic induction method test rebar protective layer thickness and rebar diameter technical specification"

◆GBT/50784-2013 "Technical Standard for On-site Testing of Concrete Structures"
