Description
QIUSUO Color Difference Analyzer Digital Spectrocolorimeter with Single Aperture Φ8mm Displayed Accuracy 0.01 Measured Reflectance Range 0-200% Measuring Time About 1s Observer Angle 2°/10°
About this item:
Measurement aperture: Φ8mm single aperture;Wavelength Range:400-700nm;Displayed Accuracy:0.01;Measured Reflectance Range:0-200%;Reflectance Resolution:0.01%
Optical Geometry:D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Light Source:Combined full spectrum LED light source;Integrating Sphere Size: Φ40mm; Sensor: CMOS dual beam splitting sensor
Specular Component:SCI/SCE; Color Space: CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB,HunterLab,βxy,DIN Lab99; Color Difference Formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99 ,ΔE(Hunter)
It is not only a colorimeter, but also a spectrocolorimeter, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.
Technical Advantages
Adopt D/8 optical structure and SCI/SCE mode.
Adopt full waveband balanced LED light source
CMOS dual beam splitting sensor:High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate.
Contact automatic whiteboard calibration
Multiple color measurement spaces, multiple illumination source:It supports CIE LAB,XYZ,Yxy, LCh, CIE LUV,S- RGB, βxy, DIN Lab99 Color space and D65, A, C, D50, D55, D75, F1, F2(CWF) ,F3, F4 F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), U35, NBF, ID50, ID65 multiple illumination source, Meet different measurement requirements.

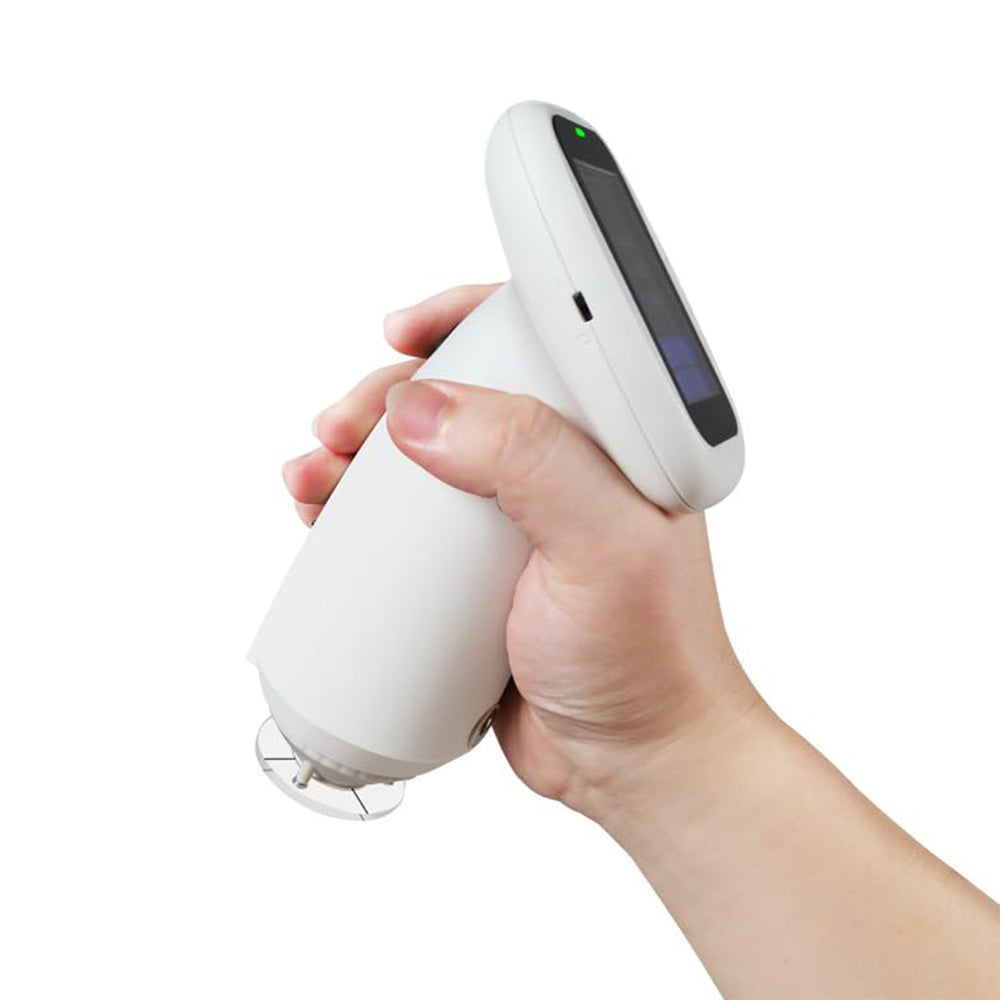

Ergonomic design and easy measurement: The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. Which is portable, fast, easy to measure and use.

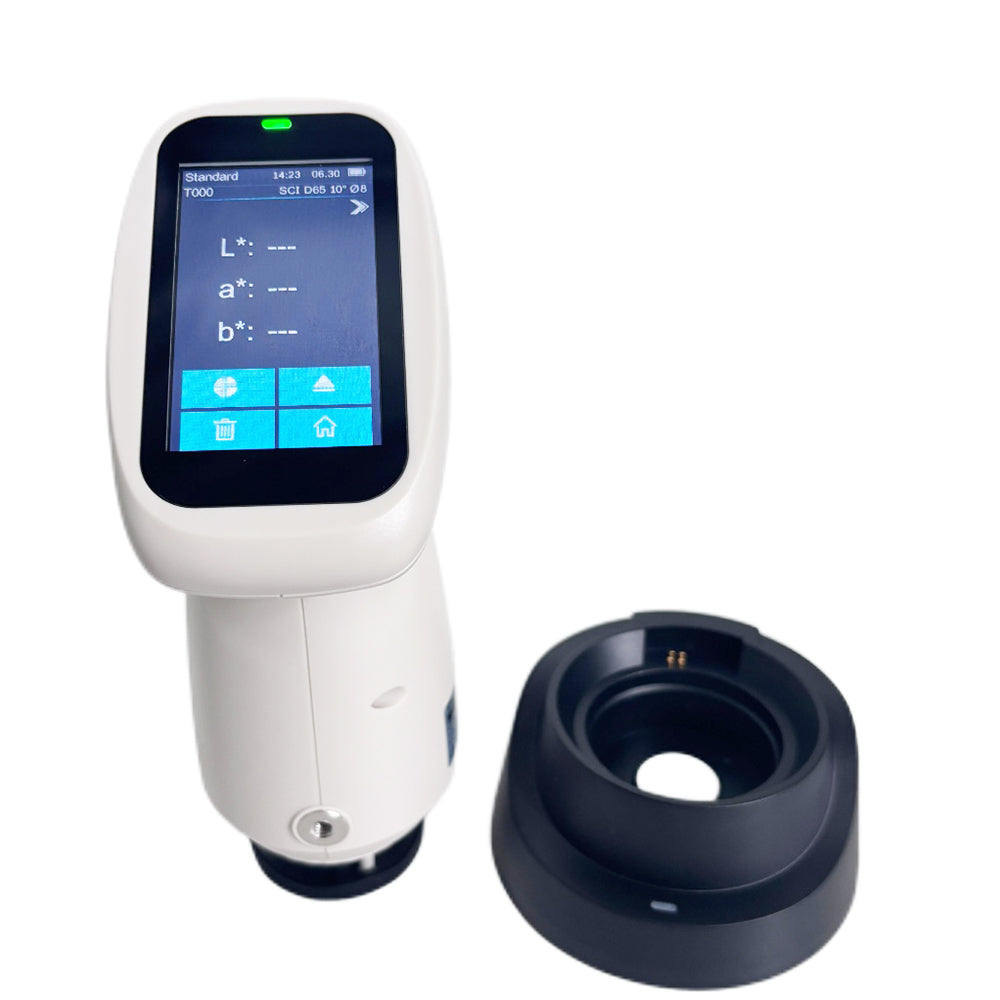

Spectrocolorimeter
The spectrocolorimeter is equipped with single aperture:Φ8mm flat, widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control.
It is not only a colorimeter, but also a spectrocolorimeter, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.
Technical Specification
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Characteristic | Adopt CMOS dual beam splitting sensor; Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries. |
| Light Source | Combined full spectrum LED light source |
| Integrating Sphere Size | Φ40mm |
| Sensor | CMOS dual beam splitting sensor |
| Wavelength Range | 400-700nm |
| Measuring Aperture | Single aperture：Φ8mm/Φ10mm (flat) |
| Specular Component | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | Spectral reflectance, WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM E313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Partially realize through the PC software /APP software) |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5, F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65(Partially realize through the PC software /APP software) |
| Display | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Measuring Time | Abou1s |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.04 (After preheating and correction,the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400nm to 700nm: within 0.2%) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) |
| Displayed Accuracy | 0.01 |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Stabilizer position |
| White Calibration mode | Contact type calibration |
| Dimension | 94X68X188mm |
| Weight | About 410g |
| Battery | Lithium battery,3.7V,3200mAh,8000 cycles in 8 hours |
| Illuminant Life Span | More than 1.2 million measurements over 10 years |
| Screen | 2.8 inch TFT true color, Capacitive Touch Screen |
| Interface | USB |
| Data Storage | Standard 500Pcs, Sample 5000Pcs(One data is able to include SCI/SCE); PC mass storage |
| Software support | Windows |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing),Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |

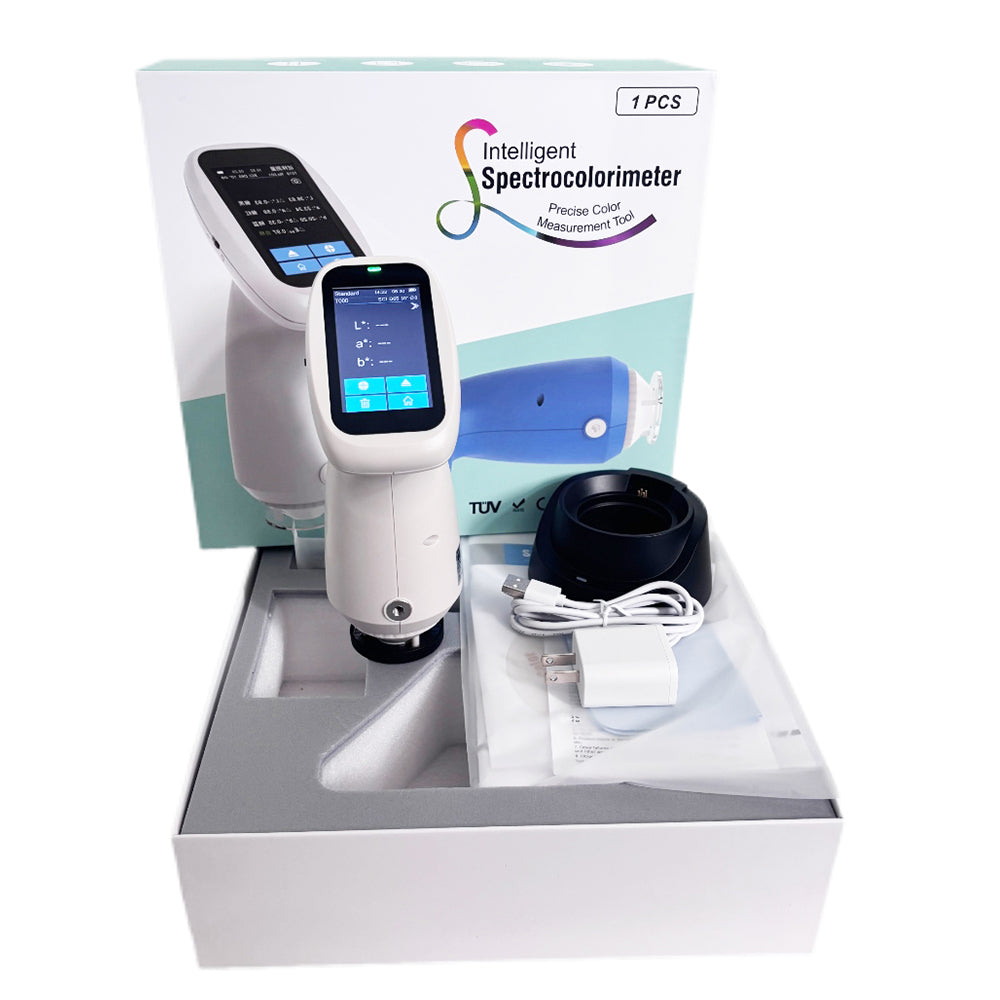

| Standard Accessory | Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, Aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
